32 ports.
1 CPU slot 2 general-purpose slots (no SLI16-2 board).
Energy consumption: 1 A (230 V) / 2 A (110 V) - 80 W.
Dimension: H = 66 mm; W = 442 mm; D = 400 mm.
Weight: 6 kg.

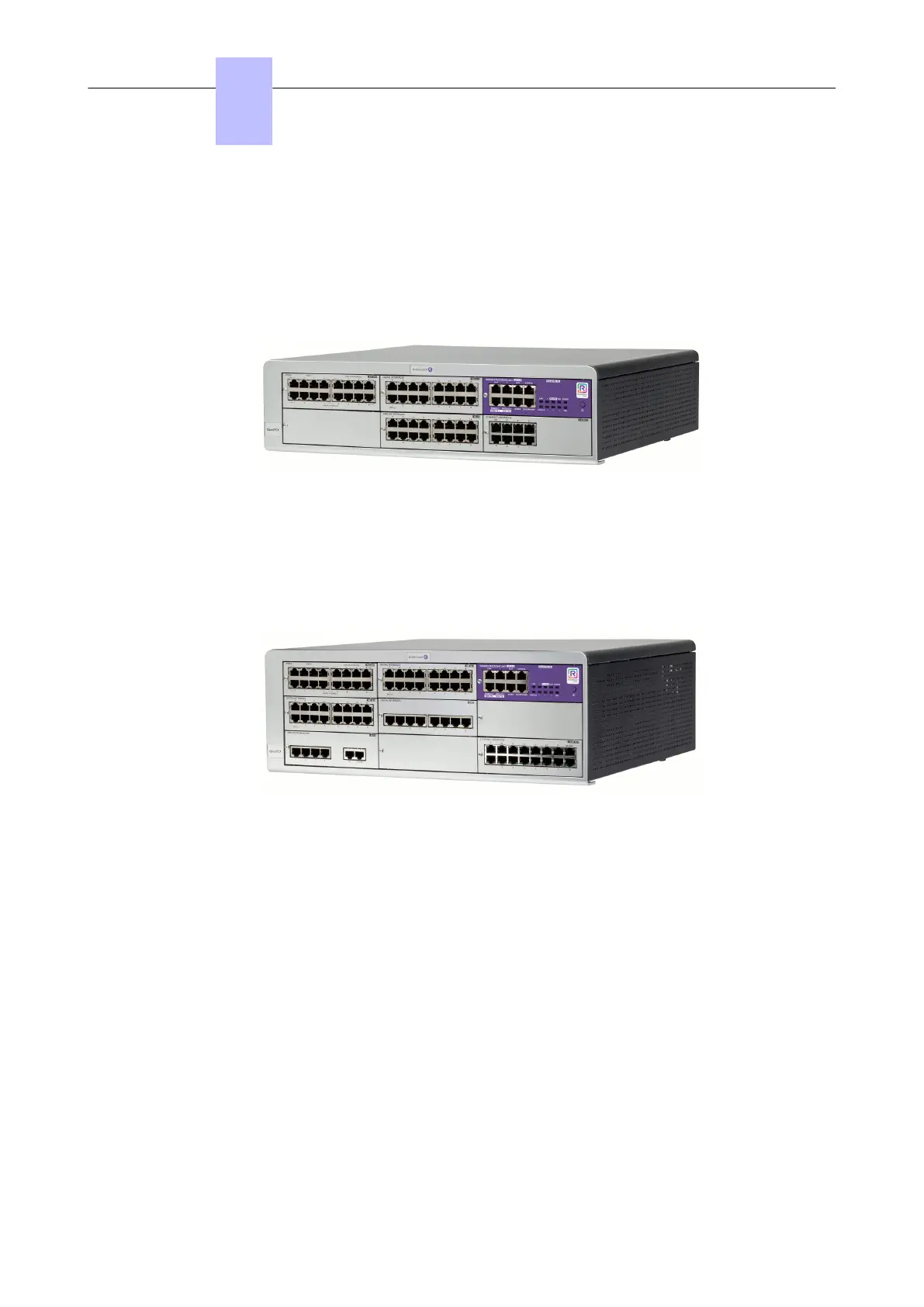

2.2.3 OXO Connect M
80 ports.
1 CPU slot 5 general-purpose slots.
Energy consumption: 1,2 A (230 V) / 2,3 A (110 V) - 120 W.
Dimension: H = 110 mm; W = 442 mm; D = 400 mm.
Weight: 11 kg.
2.2.4 OXO Connect L
128 ports.
1 CPU slot + 4 general-purpose slots + 4 specific slots (no UAI16 and MIX-2 boards)
Energy consumption: 1,2 A (230 V) / 2,3 A (110 V) - 150 W.
Dimension: H = 154 mm; W = 442 mm; D = 400 mm.
Weight: 13 kg.
Maximum capacity:
The system can be extended by adding one or two platforms to the main platform. All combinations are
possible, with a maximum of 3 platforms. The maximum capacity is 300 stations.
Chapter
2
Hardware: Platform and Interfaces
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 21/207
