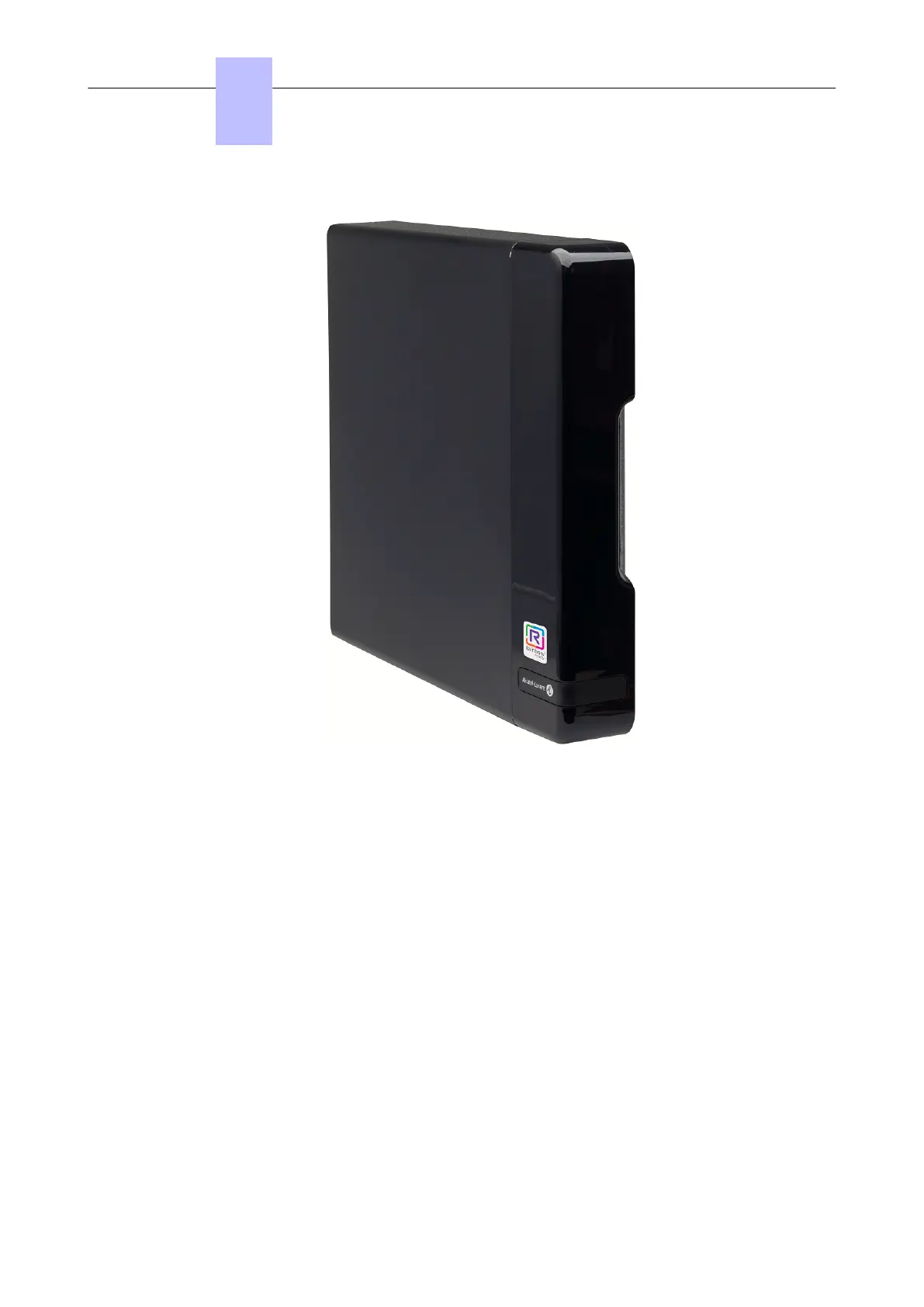

2.2.1 OXO Connect Compact
• 18 ports.
• 1 CPU slot + 1 MIX slot
• Energy consumption: 1.5 A (240 V)
• Dimension: H = 345 mm; W = 370 mm; D = 65 mm.
• Weight: 5.1 kg.
The following mixed boards are available:
• MIX 2/4/4-2
• MIX 4/4/8-2
• MIX 4/8/4-2
• AMIX-1 4/4/4
• AMIX-1 4/4/8
• AMIX-1 4/8/4
• Mini-MIX (PowerCPU EE daughter board)
Note:
This wall-mounted version is also called XS-N.
The Mini-MIX daughter board, plugged on a PowerCPU EE board, requires an OXO Connect Compact.
The PowerCPU EE board shows a Mini-MIX LED activated when the Mini-MIX daughter board is
detected on the PowerCPU EE board.
