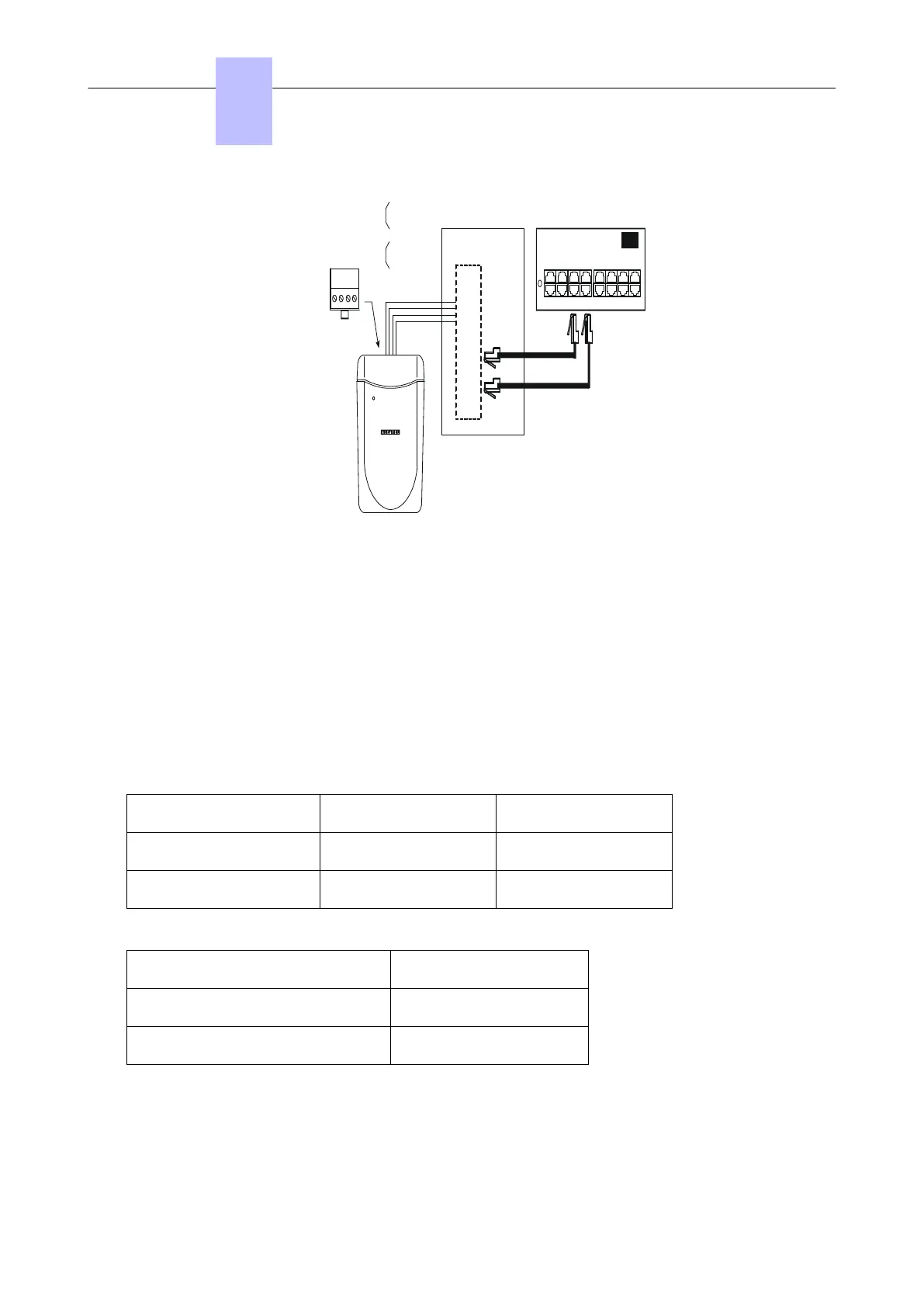

Screw terminal block
4
Distribution panel
DIGITAL INTERFACES
UAI
16
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
1
UAI-3
UAI-4
1 : L1
2 : L2
3 : L1
4 : L2
4.13.1.2 Number of useful base stations
Any radio signal is subject to various propagation phenomena: attenuation, reflection and diffraction.
These phenomena are related to the environment of the Alcatel-Lucent 4070 IO/EO, and affect the
radio performance of the system.
The effects can improve or deteriorate wave propagation.
Take as an example a building with a metallic structure. A radio wave will tend to be subject to many
reflections which will consequently degrade system performance.
Moreover, the range of an Alcatel-Lucent 4070 IO/EO is very dependent on the amount of attenuation
subjected to the radio wave across various zones.
The following table gives the values of global coverage zone (cell) for an Alcatel-Lucent 4070 IO/EO
under normal environmental and topological conditions:
Interior Exterior
Coverage area ~ 50 m ~ 400 m
Area: ~ 7,000 m
2
~ 50 000 m
2
4.13.1.3 Number of users per base station
Type of Base Station connection. Number of DECT users
3 channels 4
6 channels 12
4.13.1.4 Locating DECT base stations
As a result of the environment and the infrastructure, certain recommendations must be taken into
account for locating Alcatel-Lucent 4070 IO/EO:
Chapter
4
Installation and Cabling
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 124/207
