Alcatel Vacuum Technology France --- IPUP A100 Instruction manual
Connection to the pumping
circuit
l Remove the plastic caps blocking the inlet and exhaust holes;
these components prevent foreign bodies from entering the pump
during transport and storage.
For safety reasons, any accessories connected to the inlet and
exhaust must be made of materials compatible with pumped gases.
AT THE PUMP EXHAUST
Exhaust of corrosive, reactive, flammable, pyrophoric or
oxidizing process gases may result in severe injury or death.
Always connect the pump exhaust to an exhaust stack.
A leak test should be performed after any pump connection.
Exhaust connection
DN25 ISO KF.
Several fitting accessories are available in the Alcatel catalog.
AT THE PUMP INLET
l Make sure that any vacuum accessories connected to the inlet of
the pump can withstand a negative pressure of 1 bar relative to
atmospheric pressure.
Inlet connection
DN50 ISO KF.
Several fitting accessories are available in the Alcatel catalog.

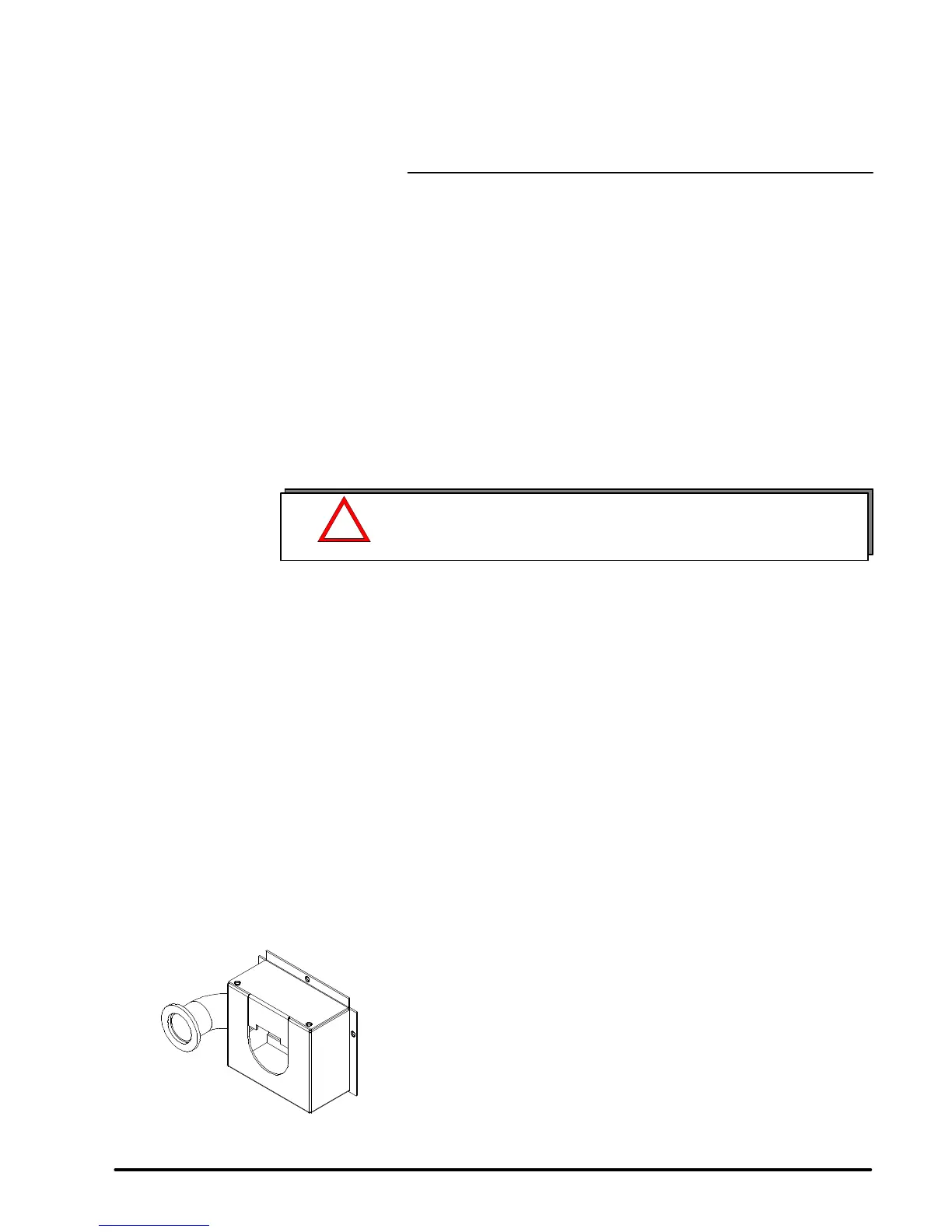

SECONDARY EXHAUST
ENCLOSURE
This external exhaust is required to be Semi compliant. Its purpose is
to exhaust gas and vapors that might leak from the pump.
It is delivered with each IPUP A100P/PI version pump.
l flow: 5 cfm
l static pressure: ---0.14 inch of water measured at
the secondary exhaust port
l exhaust: DN25 ISO KF
