Alcatel Vacuum Technology France --- IPUP A100 Instruction manual
IPUP A100 monitoring system
GENERAL
Each IPUP A100 pump includes an intelligent monitoring system.
DESCRIPTION
Electrical cabinet
This is located at the top of the machine. It is linked with the main
power supply, pump motor and electronic cabinet.
Electronic cabinet
This handles pump configuration and displays the sensor parameters.
It is linked to the indicator lights located on the front panel.
It allows data to be exchanged with the hand held display module.
Hand held display module
This allows users to review operating parameters.
It allows users to access and modify configured parameters.
It allows users to start and stop the pump (see C 10) (if configured).

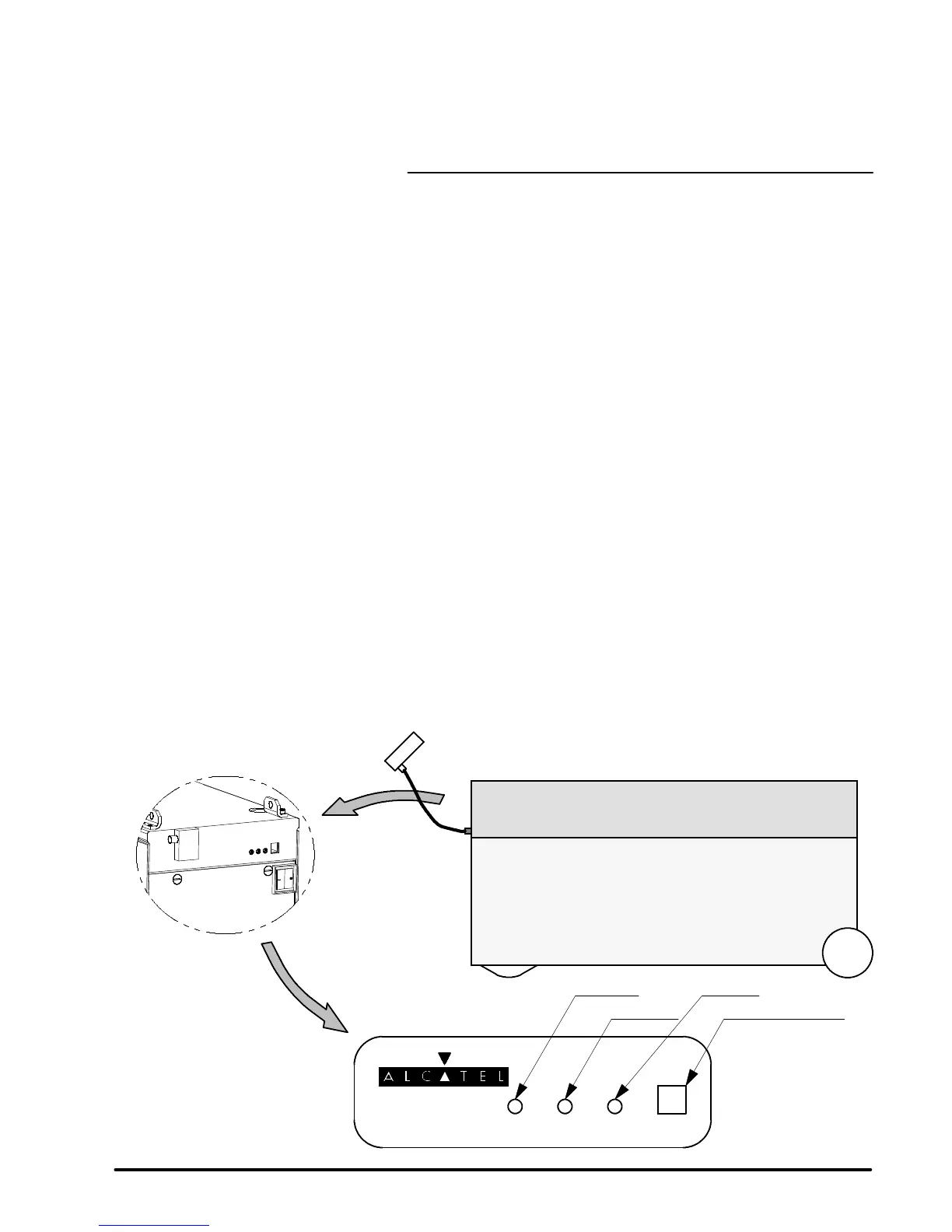

Electrical / electronic cabinet
Hand held
display module
ON WARNING HAZARD KEYBOARD
Hand held display
module connection
red LED
yellow LED
green LED
Front panel silk screen printing
