8. Operation

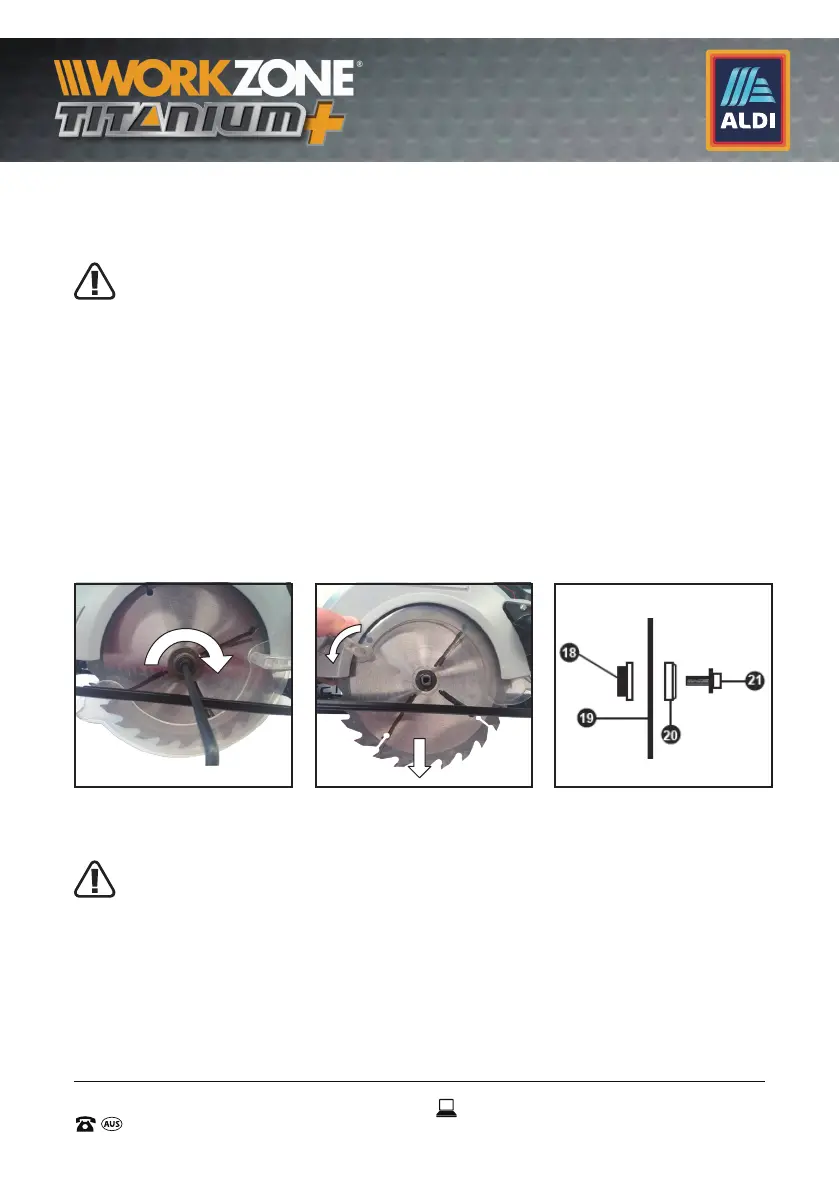

8.1 Changing The Saw Blade (See Fig. B1, B2, B3)
WARNING: Before undertaking any maintenance or
adjustment, ensure the battery is removed.
Wear protective gloves when mounting the saw blade.
Danger of injury when touching the saw blade.
Only use saw blades that correspond with the technical
specification data for this tool.
Do not under any circumstances use grinding discs as the
cutting tool.
For changing the saw blade, it is best to place the machine on with
the motor end cap on a flat surface with the blade and blade guard
area facing upwards.
Removing the saw blade
WARNING: Always ensure that the saw is switched of and the
battery pack (16) is removed before making any adjustments.
Press the spindle lock button (4) and keep it depressed.
The spindle lock button (4) may be activated only when the saw
blade (19) is at a standstill.
Loosen the blade bolt (21) in a clockwise direction using the
supplied hex key (24). Remove the outer flange (20). Using the lower
B1 B2 B3
