AC1200R User’s Guide
- 5 -

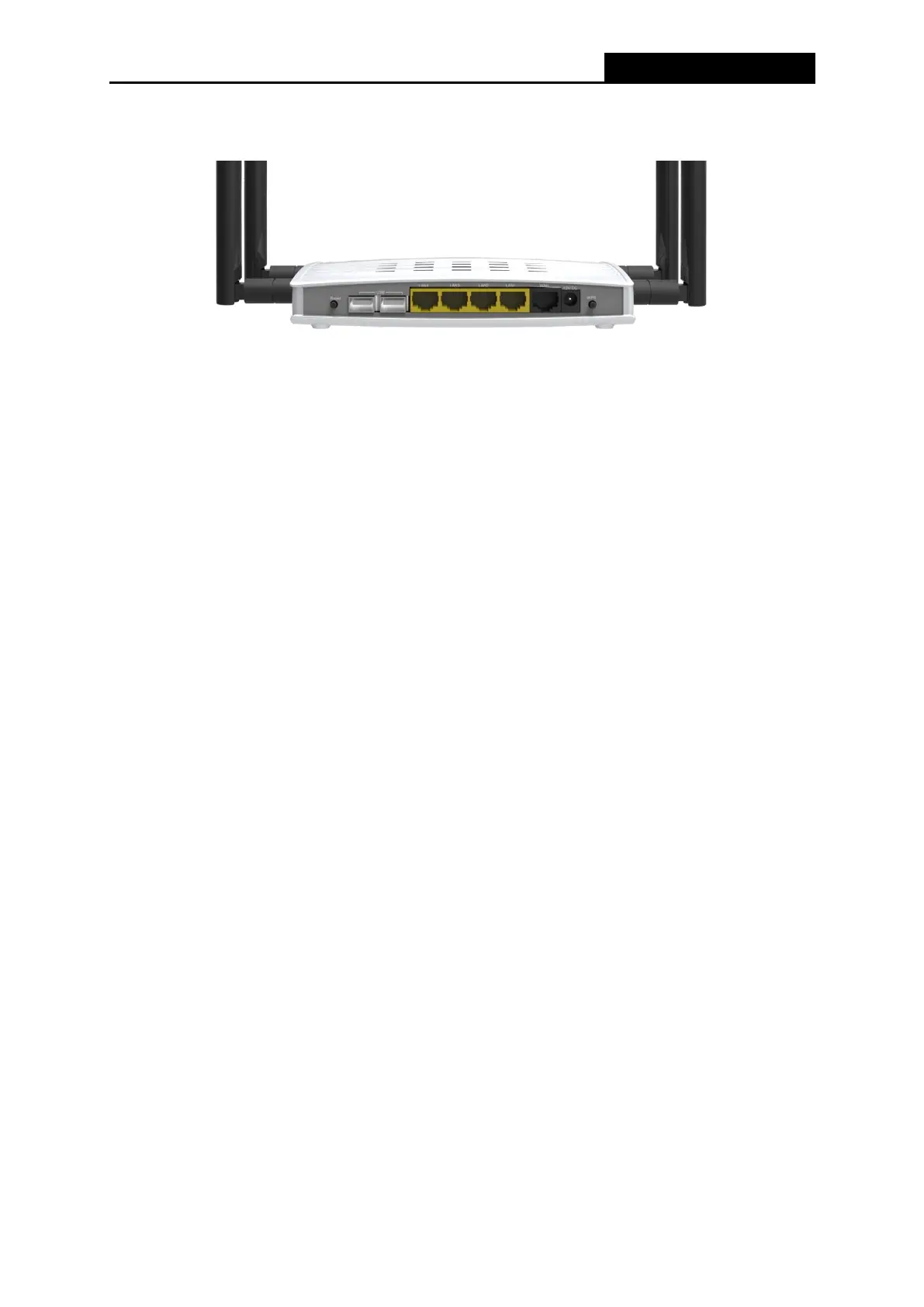

1.3.2 The Rear Panel
The following parts are located on the rear panel (View from left to right).
 Wireless antenna: To receive and transmit the wireless data.
 Reset button: when machine is on, press Reset button for 10 seconds then release reset
button to restore machine factory default settings.
 USB interface:
 LAN 1,2,3,4: Ports (1, 2, 3, and 4) to connect the Router to the local PC(s).
 WAN: The WAN port is where you will connect the DSL/cable Modem, or Ethernet.
 POWER: The Power socket is where you will connect the power adapter. Please use the
power adapter provided with the AC1200R.
 WPS: Press WPS button to start easy wireless connection service..
 Wireless antenna: To receive and transmit the wireless data.
