AC1200R User’s Guide
- 20 -
4.5 TCP/IP Settings

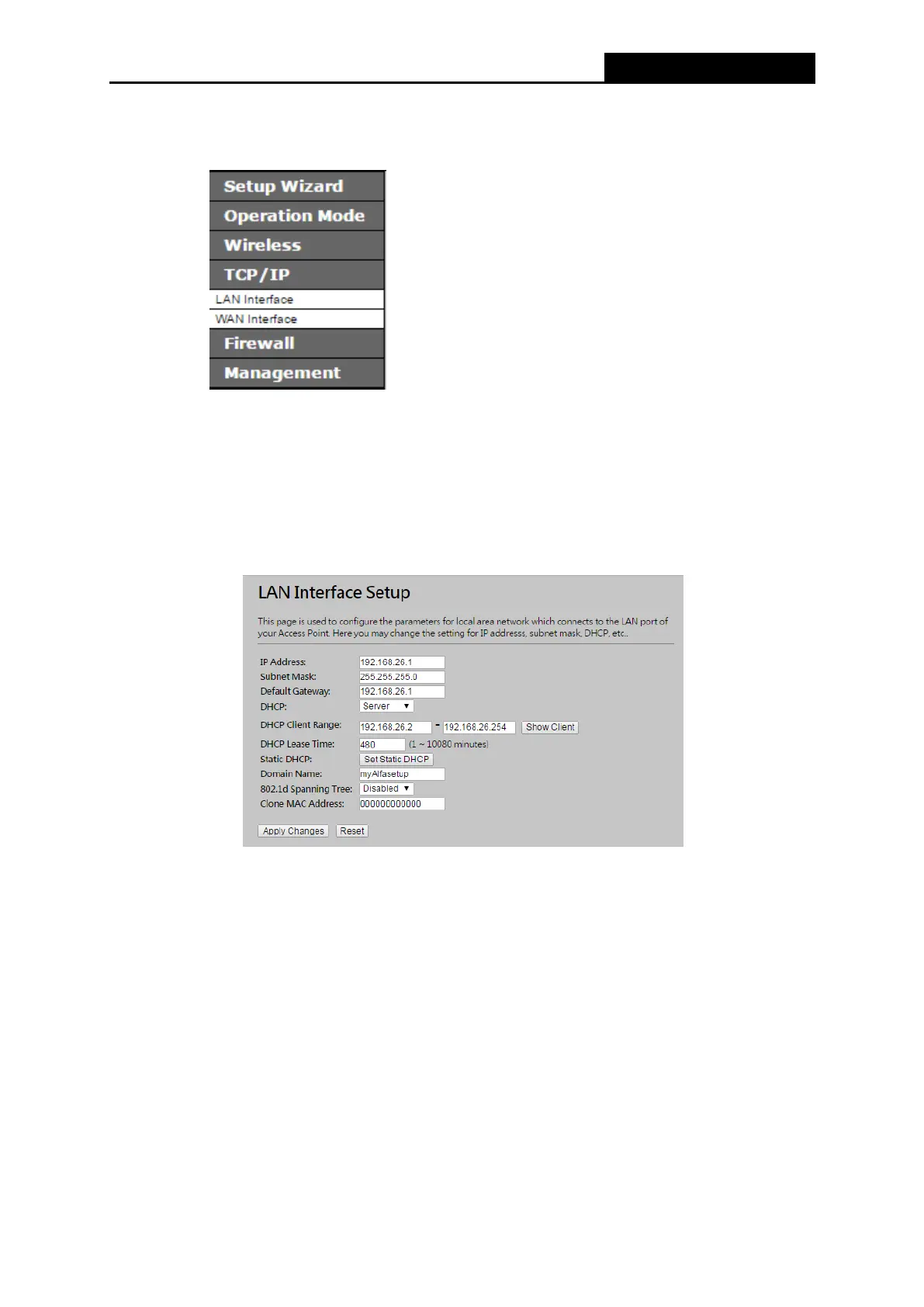

Figure 4-5 The Network Menu
There are two submenus under the TCP/IP Settings menu (shown in Figure 4-5): LAN Interface,
and WAN Interface. Click any of them, and you will be able to configure the corresponding
function.
4.5.1 LAN
Choose menu “TCP/IP Settings → LAN”, to configure the IP parameters of the LAN on the
screen as shown below.
Figure 4-6 LAN Interface
 IP Address - Enter the IP address of your Router or reset it in dotted-decimal notation
(factory default: 192.168.26.1).
 Subnet Mask - An address code that determines the size of the network. Normally used,
255.255.255.0 as the subnet mask.

Note:
1. If you change the IP Address of LAN, you must use the new IP Address to log into the Router.
2. If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP
server will change accordingly at the same time，while the Virtual Server and DMZ Host will
not take effect until they have been re-configured.
