Manual
Timy3 - General
-16-
• check if all timing devices started
• trigger the start again and check if the start time is the same for all devices
• disconnect the sync cable if the start times were the same

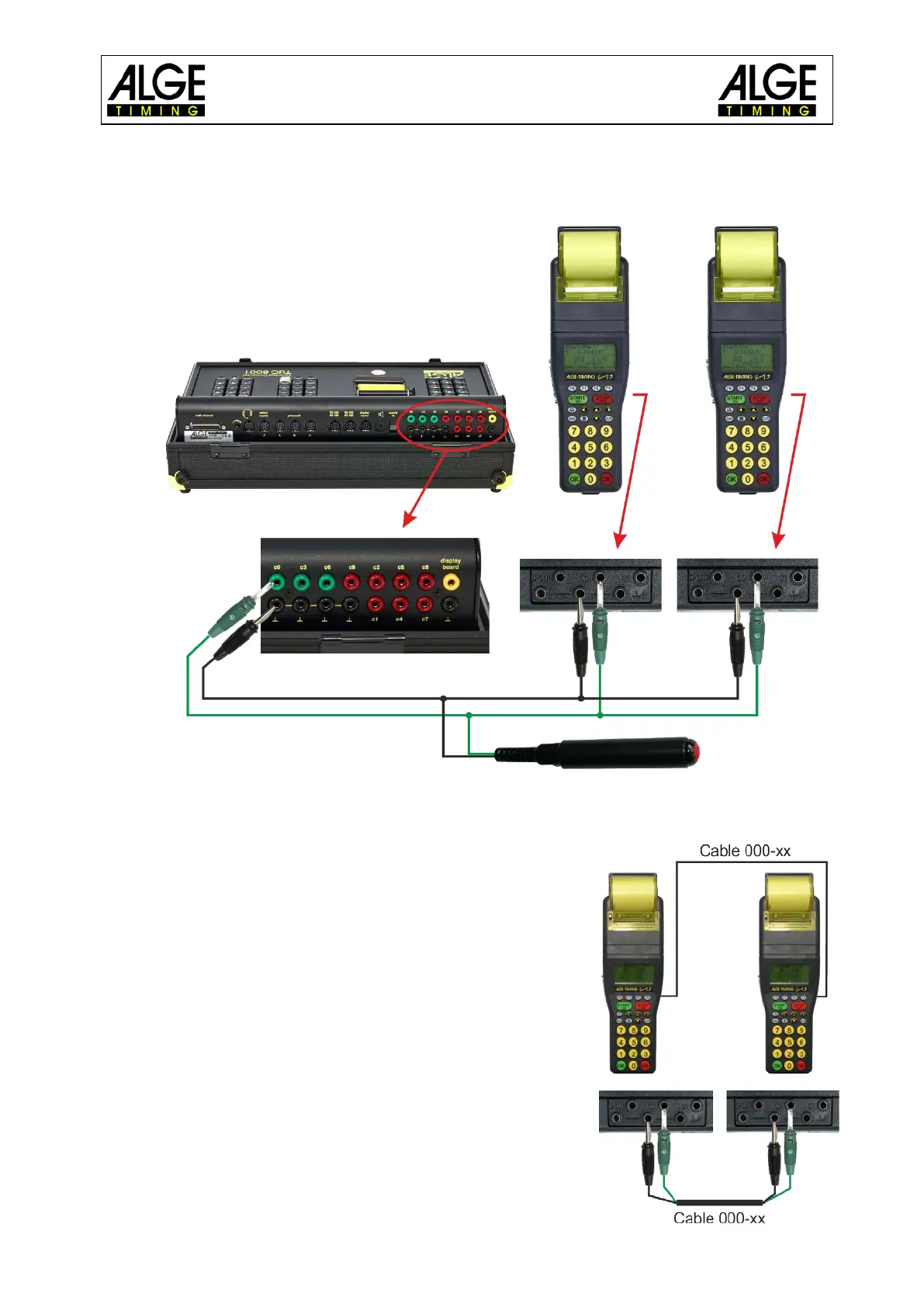

4.3 Synchronization of other Devices with Timy3 by Cable
The Timy3 can send a synchronization signal via channel 0
every full minute when using the programs BACKUP or PC-
TIMER.
• Connect the Timy3 with the device to be synchronized.
• Enter the time of day (next full minute) to be synchro-
nized at the device.
• Press and hold both keys, the green and red OK key of
the Timy3. On the full minute the Timy3 sends a syn-
chronization impulse. The time of day of the other tim-
ing device must now run.
