Manual
Timy3 - General
-32-

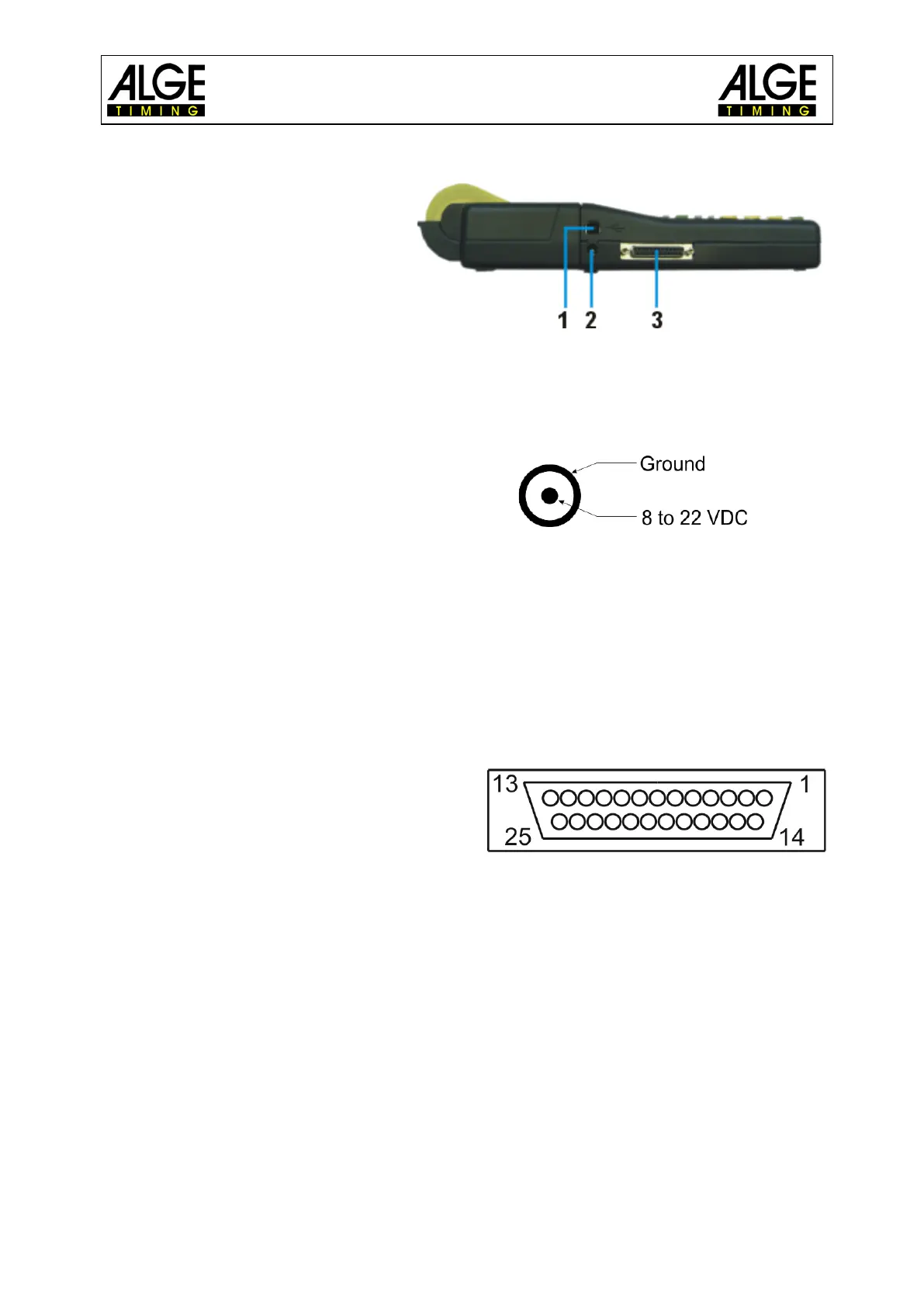

11.1 Pin Assignment
USB Interface (1):
The USB interface is used as interface
between Timy3 and computer. Via this
interface the Timy3 can be controlled
completely and all data can be re-
called.
Charger Connection (2):
ALGE-TIMING Multiport (3):
Pin assignment:
1 ......... .......... terminal numbering connection
2 ......... c0....... start channel (precision 1/10,000 s)
3 ......... c2....... timing channel 2 (precision 1/10,000 s)
4 ......... c3....... timing channel 3 (precision 1/10,000 s)
5 ......... c7....... timing channel 7 (precision 1/100 s)
6 ......... .......... data output for display board
7 ......... .......... RS485B
8 ......... .......... RS485A
9 ......... .......... clock for terminals CLK
10 ....... .......... RS232 TX
11 ....... .......... RS232 RX
12 ....... .......... common ground GND
13 ....... .......... stabilized voltage out (+5 V 100 mA limited, short circuit proof)
14 ....... c1....... stop channel (precision 1/10,000 s)
15 ....... c5....... timing channel 5 (precision 1/10,000 s)
16 ....... c8....... timing channel 8 (precision 1/100 s)
17 ....... c6....... timing channel 6 (precision 1/100 s)
18 ....... c4....... timing channel 4 (precision 1/10,000 s)
19 ....... .......... RS232 RTS
20 ....... .......... printer data out
21 ....... .......... horn output 8 Ω
22 ....... .......... RS232 CTS
23 ....... .......... power supply out: 7.5 - 21 VDC 2A max.
24 ....... .......... common ground GND
25 ....... .......... power supply in: 8 - 22 VDC
