Timy3 - General

-33-

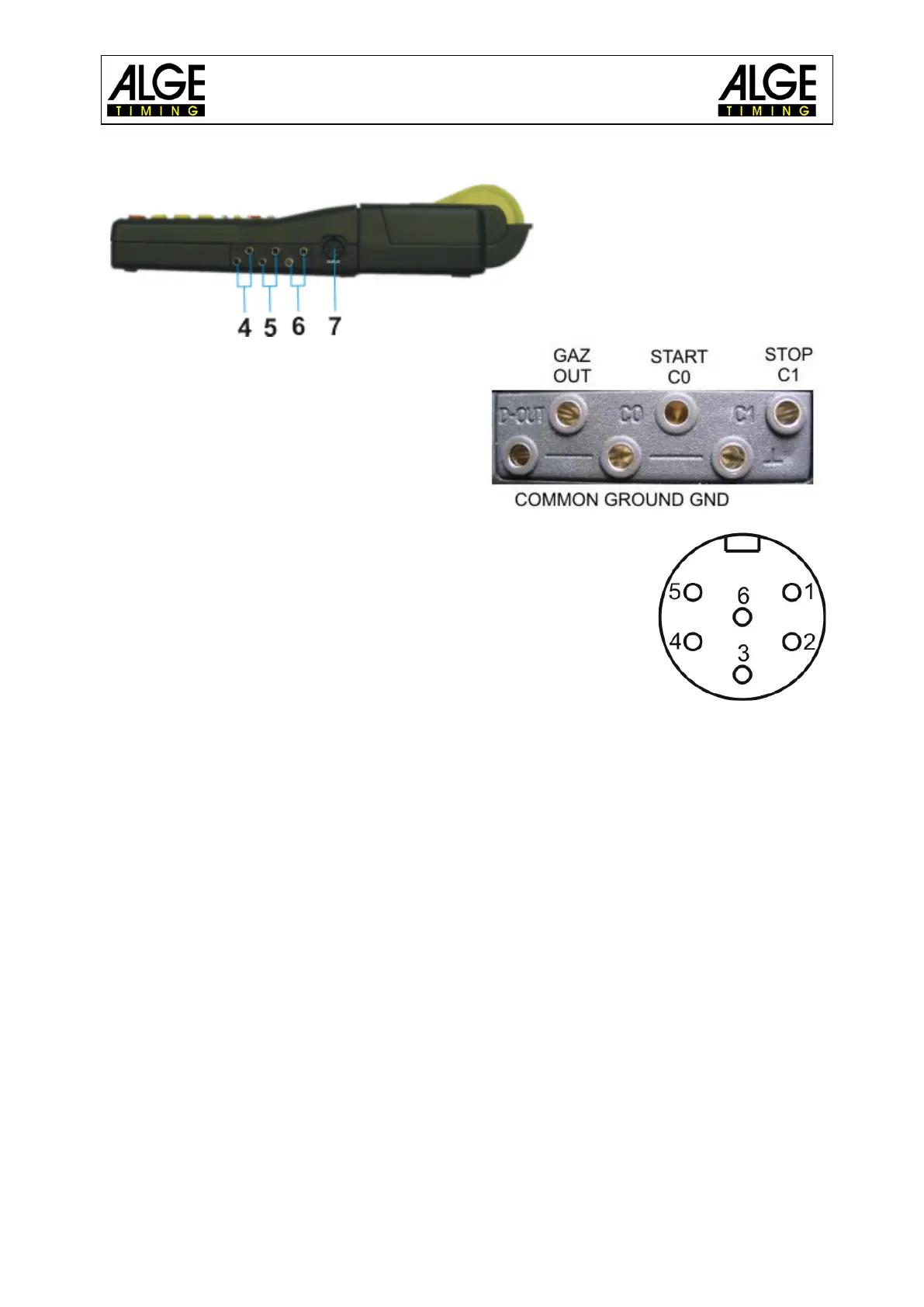

banana plugs for display board (4)

banana plugs for start channel C0 (5)

banana plugs for stop channel C1 (6)

Photocell socket (7)

Pin assignment:

1 ............ c0 .......... start channel

2 ............ c1 .......... stop channel

3 ............ GND...... common ground

4 ............ +Ua ...... power supply out 8-22 VDC (only on external supply)

5 ............ +5V ...... stabilized voltage out (+5 VDC 100 mA limited)

6 ............ c2 .......... intermediate time channel
