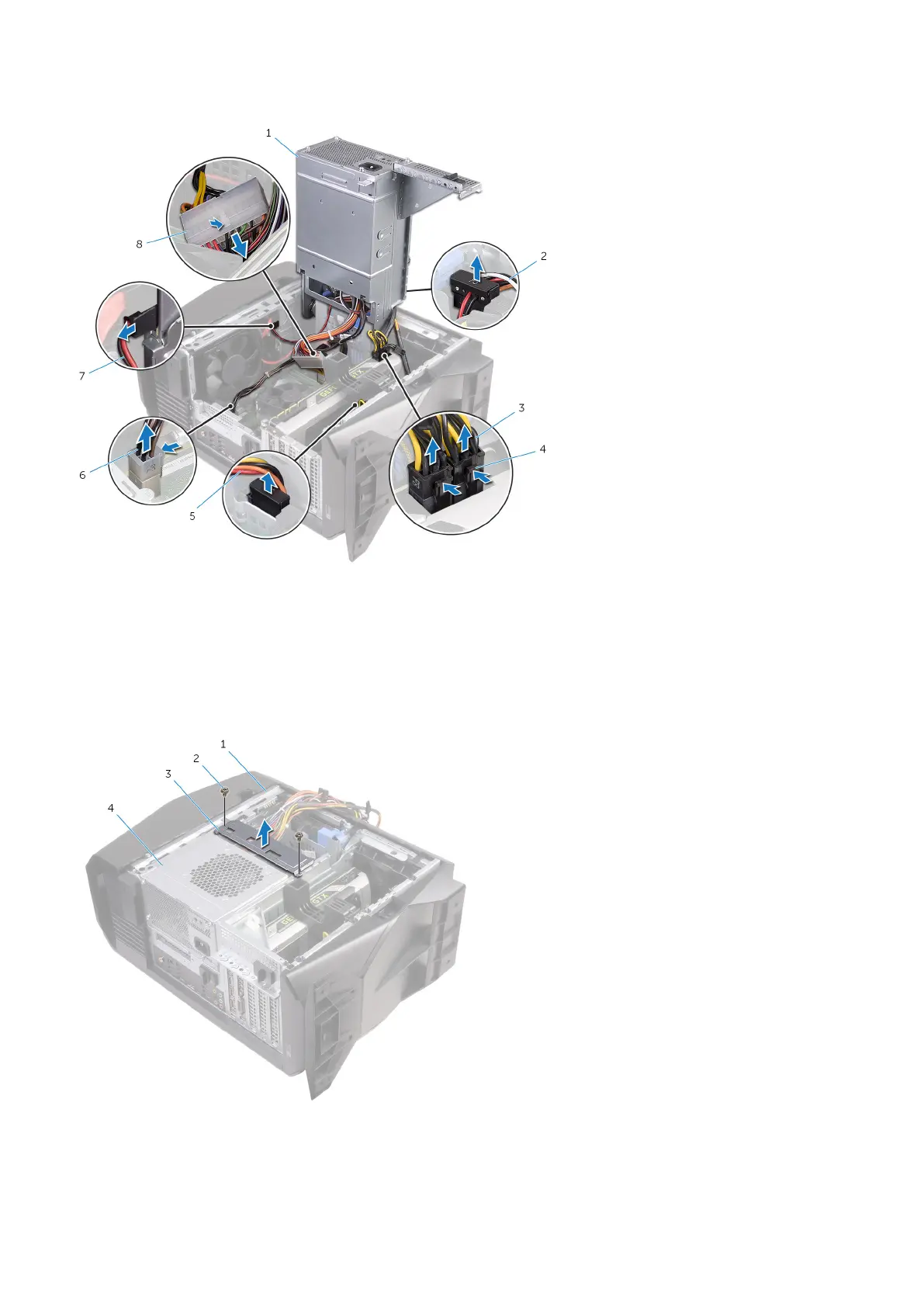

7. Disconnect the processor-power cable and system-board power cable from the system board.
1. power-supply unit 2. hard-drive power cable
3. graphics-card power cables (2) 4. releasing clips (2)
5. hard-drive power cable 6. processor-power cable
7. optical-drive power cable 8. system-board power cable
8. Rotate the power-supply unit cage towards the chassis until the unit snaps into place.
9. Remove the screws that secure the power-supply unit bracket to the power-supply unit cage.
10.Lift the power-supply unit bracket off the power-supply unit cage.
1.
chassis 2. screws (2)
3. power-supply unit bracket 4. power-supply unit
11. Remove the screws that secure the power-supply unit to the chassis.
44
