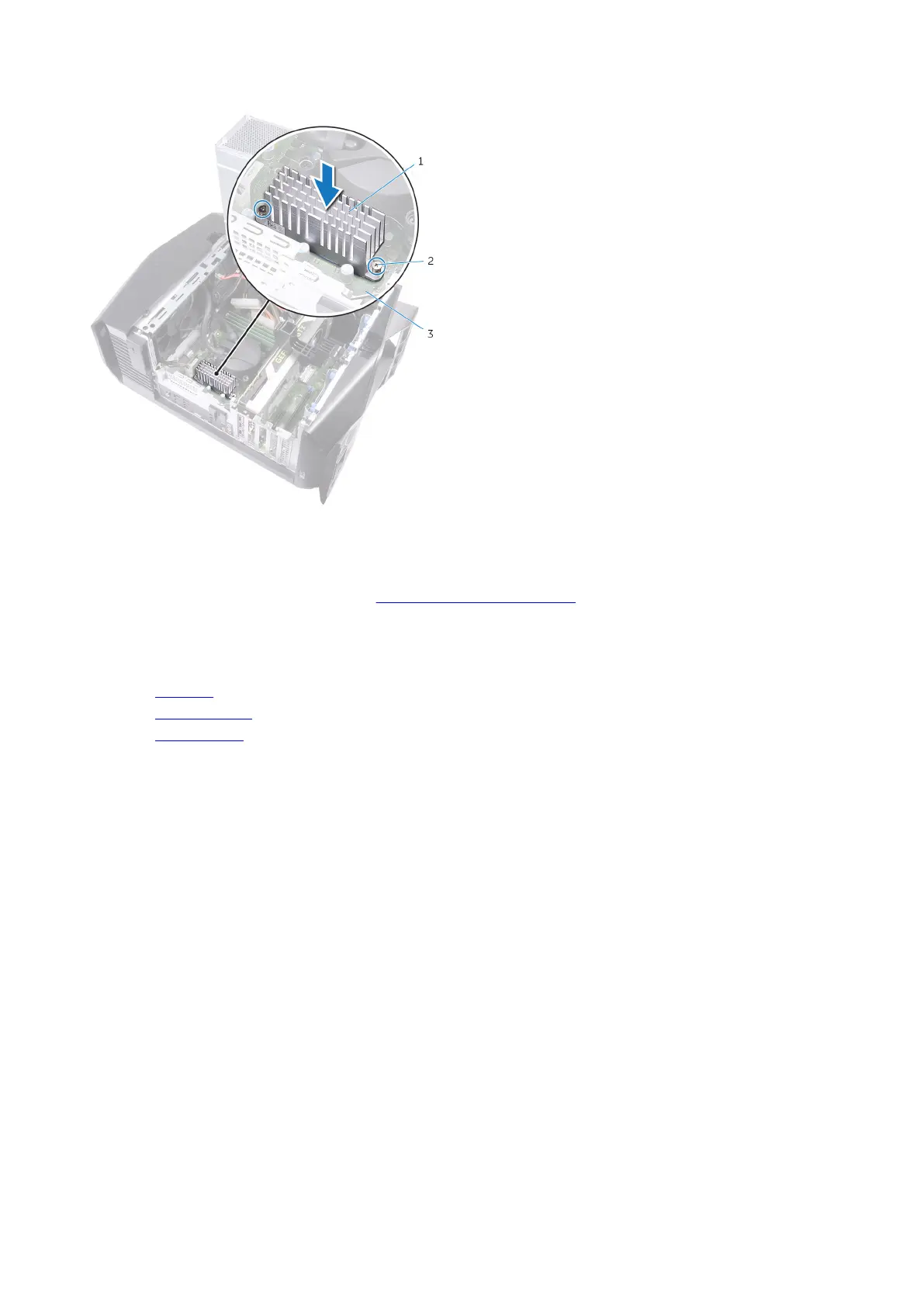

a. VR heat sink
b. captive screws (2)
c. system board
9. Follow the procedure from step 10 to step 11 in "
Replacing the power-supply unit".
10.Replace the screws that secure the radiator and fan assembly to the chassis.
Post-requisites
1. Replace the top cover.
2. Replace the right-side cover.
3. Replace the left-side cover.
51
