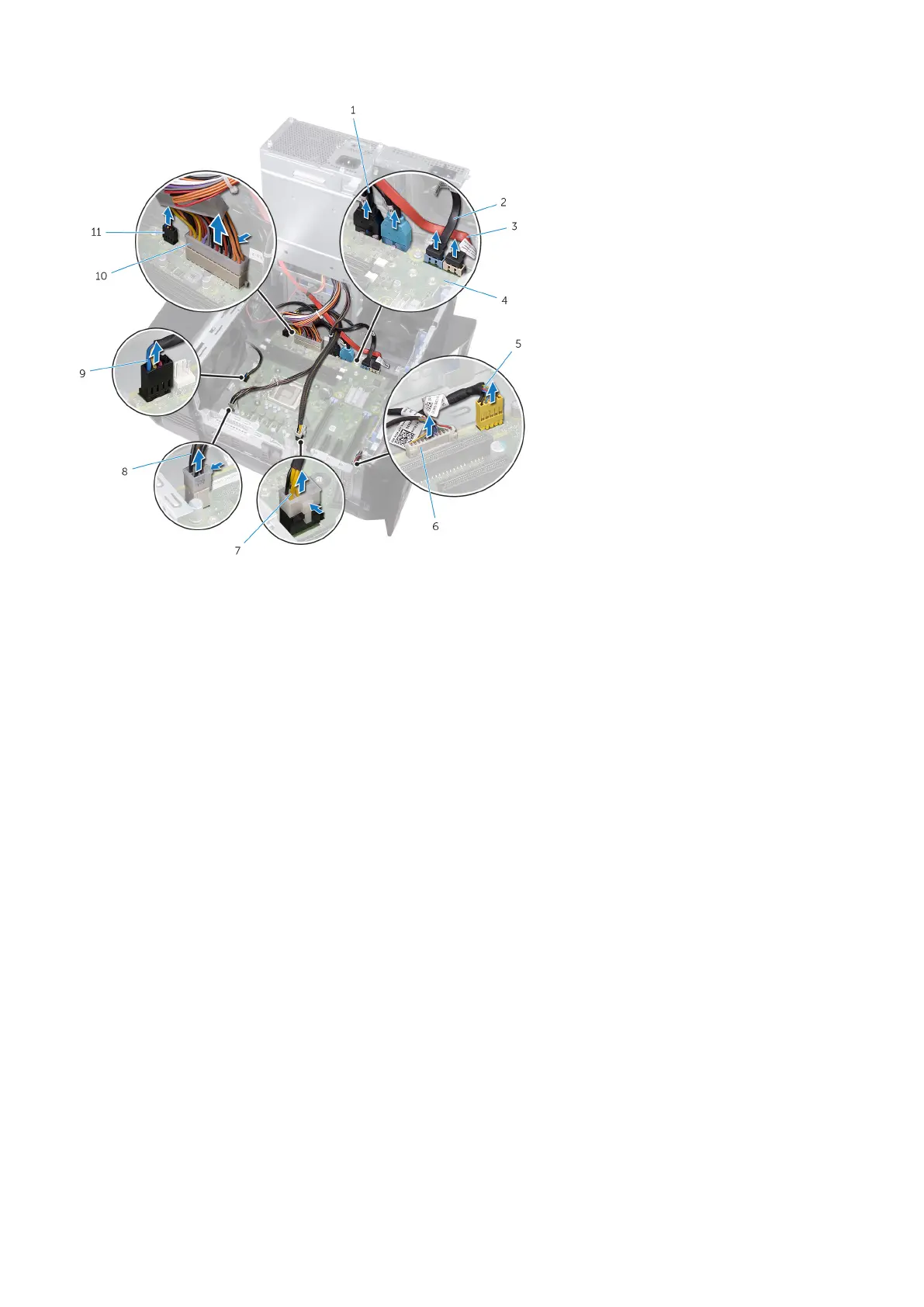

1. Top panel USB cables (SSUSB) 2. SATA 6 Gbps drive cable (SATA1)
3. SATA 6 Gbps drive cable (SATA2) 4. system board
5. front-panel audio cable (F_AUDIO) 6. LED controller cable (LED_CONTROLLER)
7. graphics-card power cable (GPU_POWER) 8. processor power cable (ATX_CPU)
9. top-chassis fan cable (TOP_FAN) 10. system-board power cable
11. front-chassis fan cable (FRONT_FAN)
2. Remove the screws that secure the system-board assembly to the chassis.
3. Lift the system-board assembly out of the chassis.
