Steps
1. Align the hard drive with the pins on the hard-drive carrier.
2. Using the tabs on the opposite side, flex open the carrier to insert the pins on the other side.
3. Slide the hard-drive assembly into the hard-drive cage until it snaps into place.
4. Connect the data and power cables to the hard drive.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
2.5-inch hard-drive cage
Removing the 2.5-inch hard-drive cage
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the 2.5-inch hard drive, if installed.
About this task

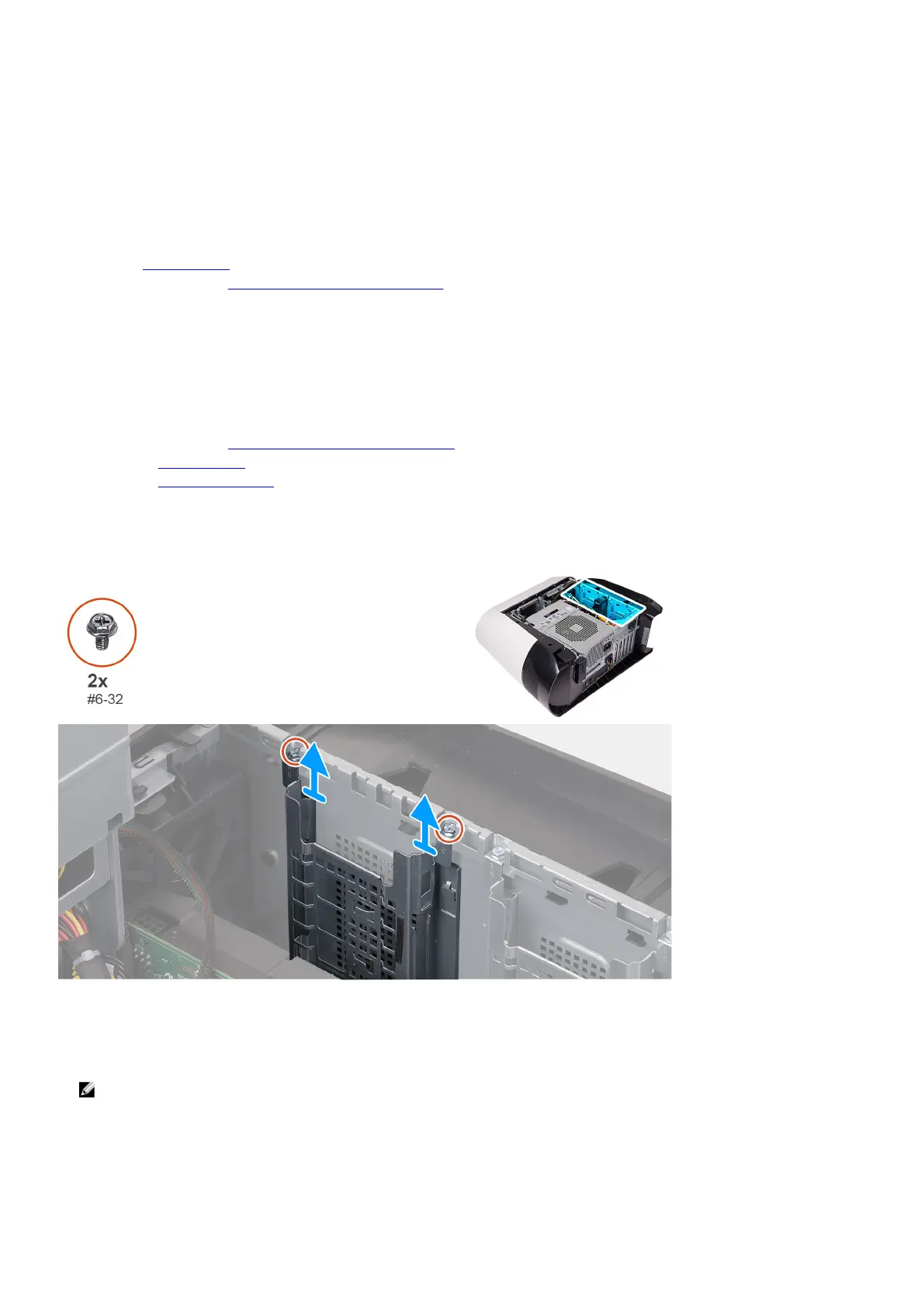

The following images indicate the location of the 2.5-inch and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (#6-32) that secure the 2.5-inch hard-drive cage to the chassis.
2. Slide and remove the 2.5-inch hard-drive cage off the chassis.
NOTE: Repeat the procedure from step 1 to step 2 to remove the other 2.5-inch hard-drive cage.
