Installing the right tron-light board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

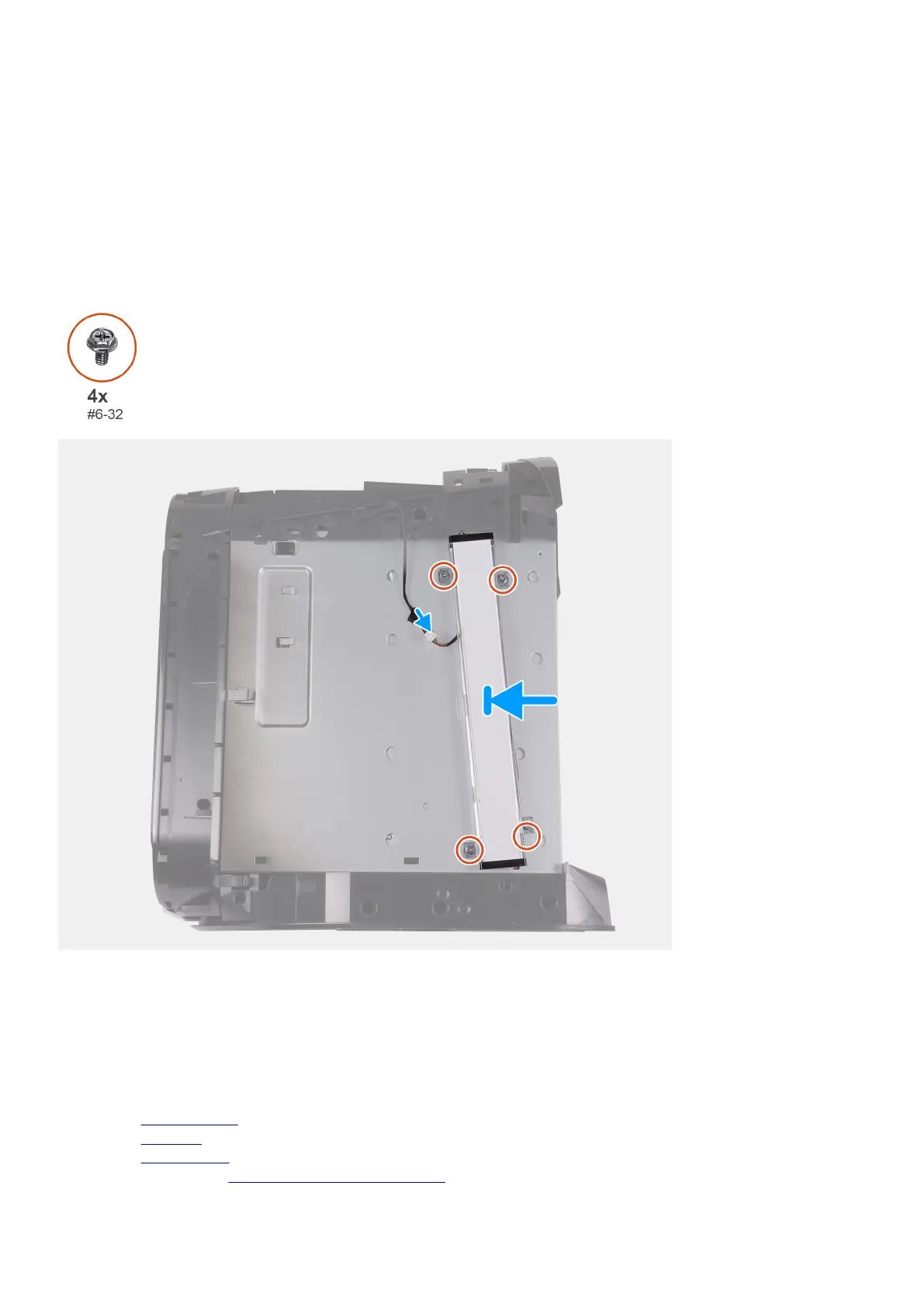

The following images indicate the location of the right tron-light board and provides a visual representation of the installation
procedure.
Steps
1. Align the screw holes on the right tron-light board with the screw holes on the chassis.
2. Replace the four screws (#6-32) that secure the right tron-light board to the chassis.
3. Connect the tron-light cable.
Next steps
1. Install the right-side cover.
2. Install the top-cover.
3. Install the left-side cover.
4. Follow the procedure in After working inside your computer.
