Alienware Aurora R9 - Installing the Front I;O-Panel

Steps

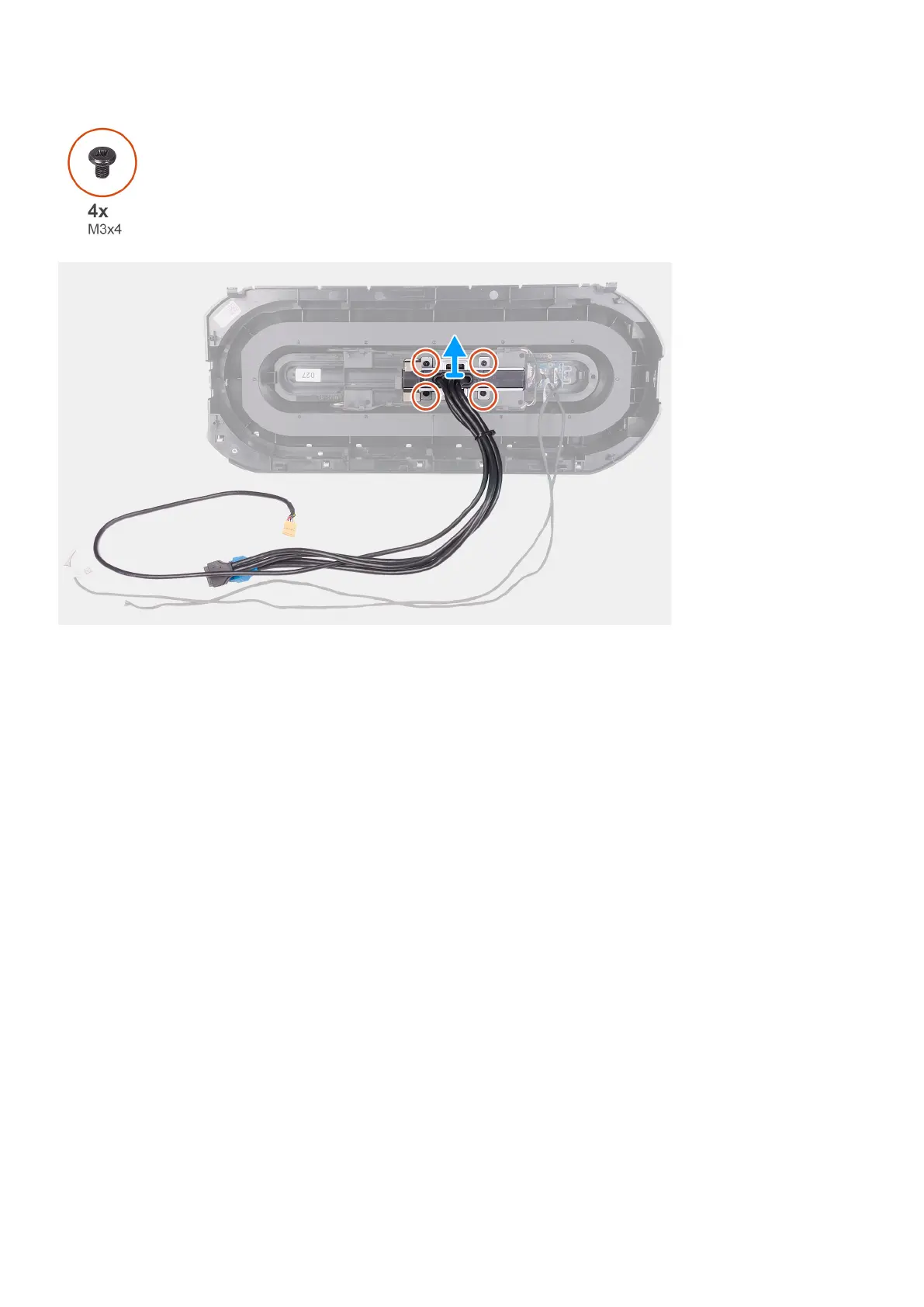

1. Remove the four screws (M3x4) that secures the front I/O-panel to the front bezel.
2. Lift the front I/O-panel off the front bezel.
Installing the front I/O-panel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front I/O-panel and provides a visual representation of the installation procedure.
