About this task

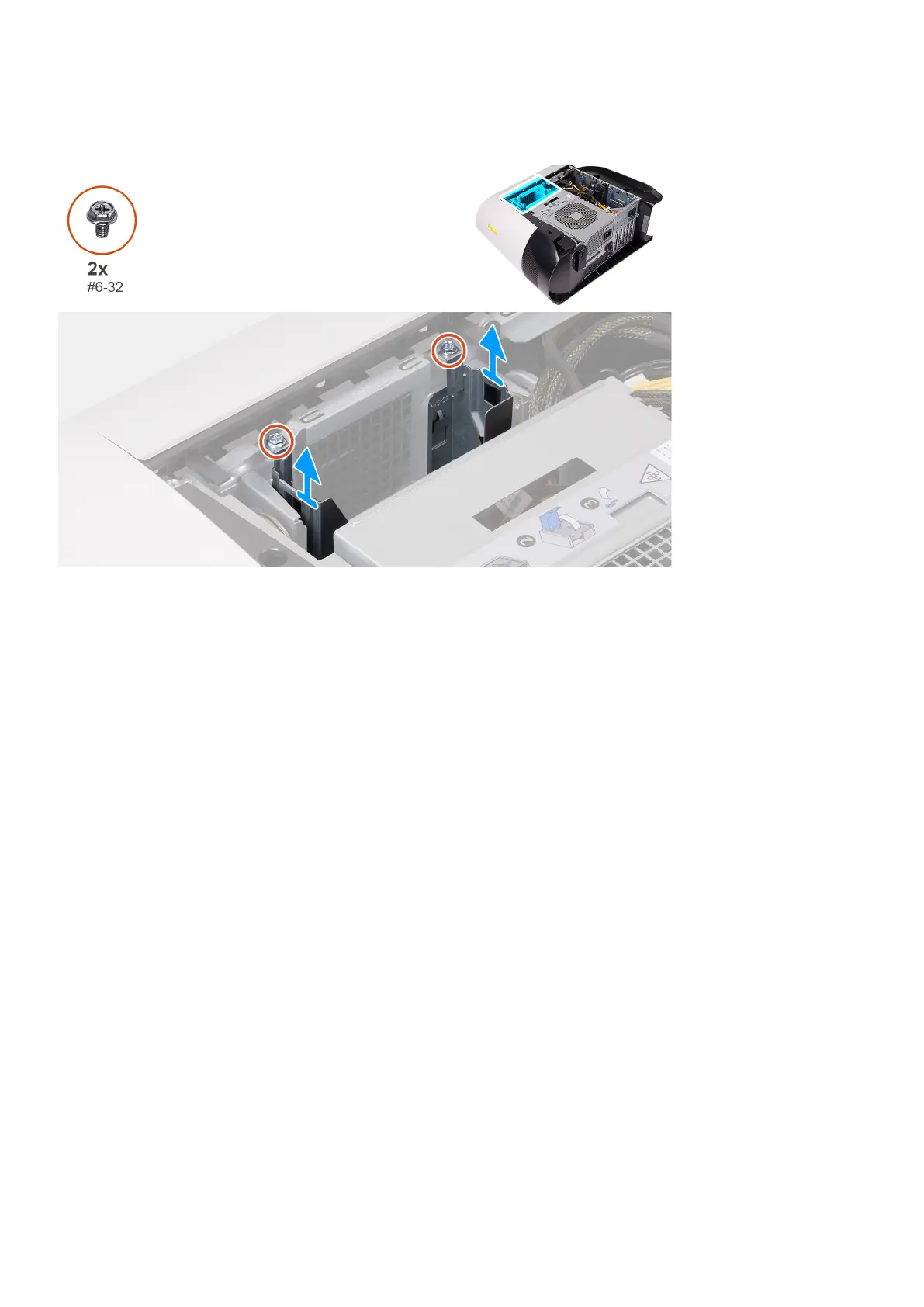

The following images indicate the location of the 3.5-inch and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (#6-32) that secure the 3.5-inch hard-drive cage to the chassis.
2. Lift the 3.5-inch hard-drive cage off the chassis.
Installing the 3.5-inch hard-drive cage
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 3.5-inch hard-drive cage and provides a visual representation of the installation
procedure.
26
