22 | Removing the Hard Drive(s)
Procedure
1 Lift the connector latch that secures the hard-drive cable to the connector on the
system board, and then disconnect the hard-drive cable from the connector on the
system board.
2 Loosen the captive screws that secure the hard-drive assembly to the computer base.
3 Using the pull-tab, lift the hard-drive assembly out of the computer base.

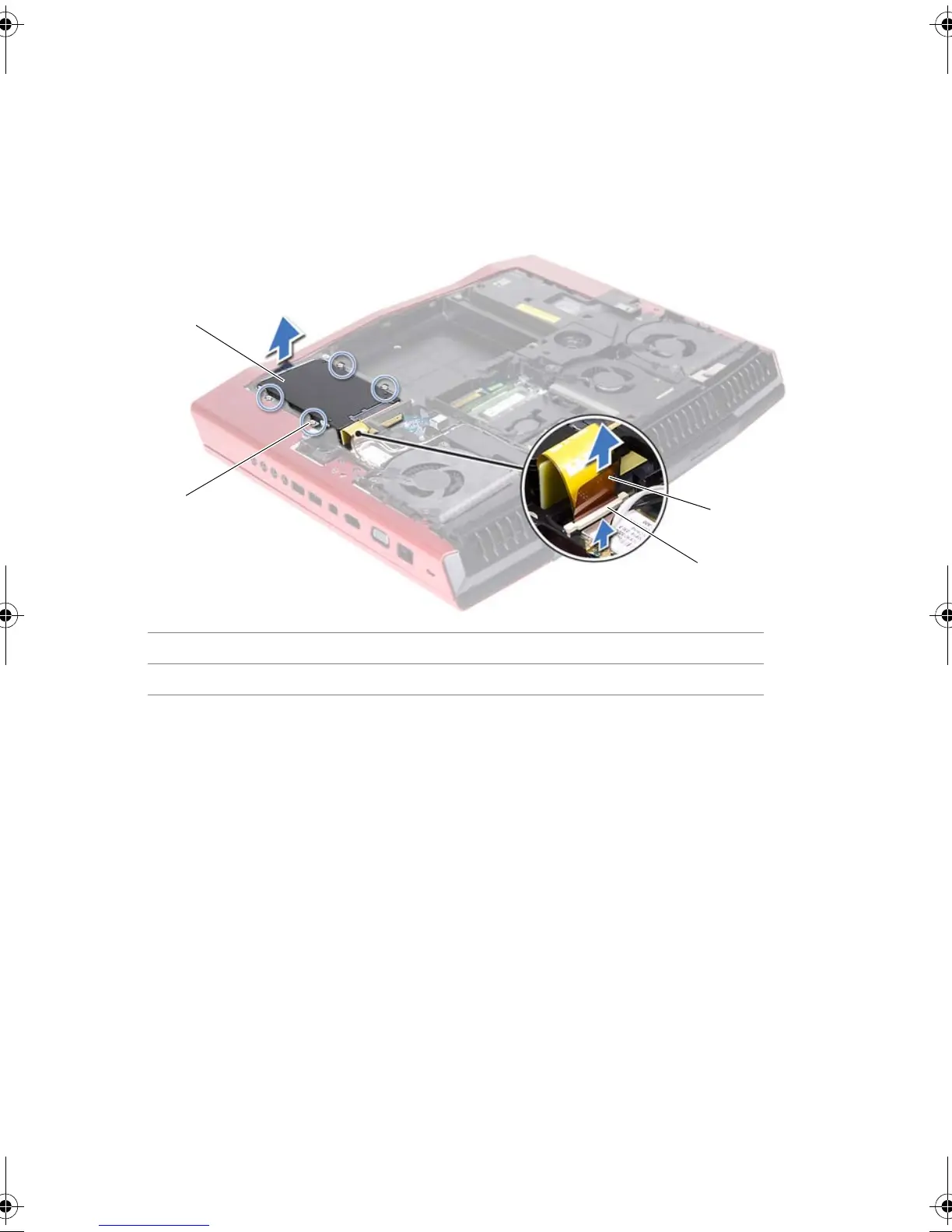

1 hard-drive assembly 2 captive screws (4)
3 connector latch 4 hard-drive cable
