Removing the I/O Board | 61
Procedure
1 Lift the connector latch and disconnect the I/O board cable from the connector on
the system board.
2 Remove the screws that secure the I/O board to the computer base.
3 Gently lift the I/O board and ease the connectors on the I/O board out of the slots on
the computer base.

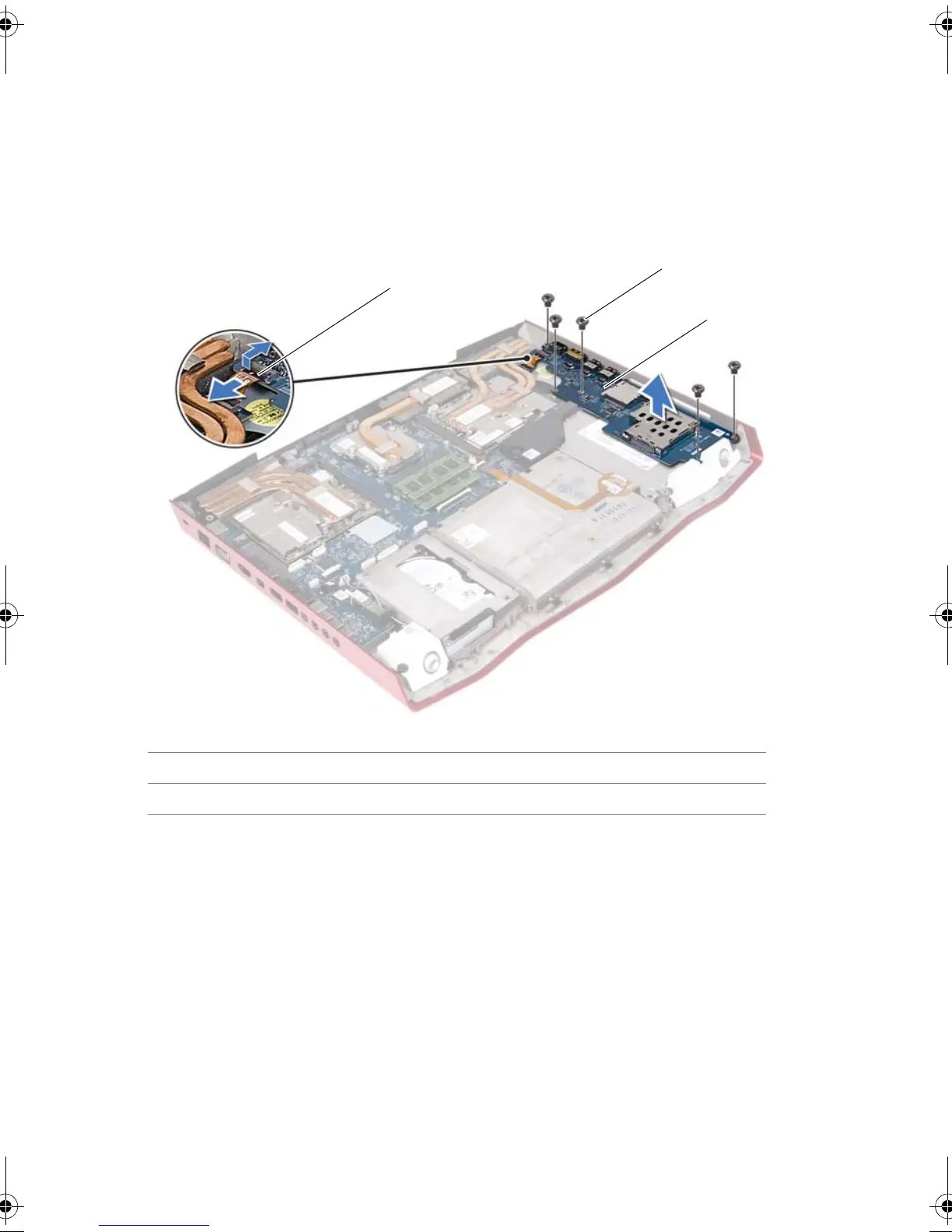

1 I/O board cable connector 2 screws (5)
3 I/O board
2
1
3
