34 | Removing the Keyboard
2 Lift the keyboard and slide the keyboard tabs out of the slots on the palm-rest
assembly.
3 Turn the keyboard over and place it on the palm-rest assembly.
4 Lift the connector latches and pull the pull-tabs to disconnect the keyboard cable
and keyboard-backlight cable from the connectors on the system board.
5 Lift the keyboard off the palm-rest assembly.

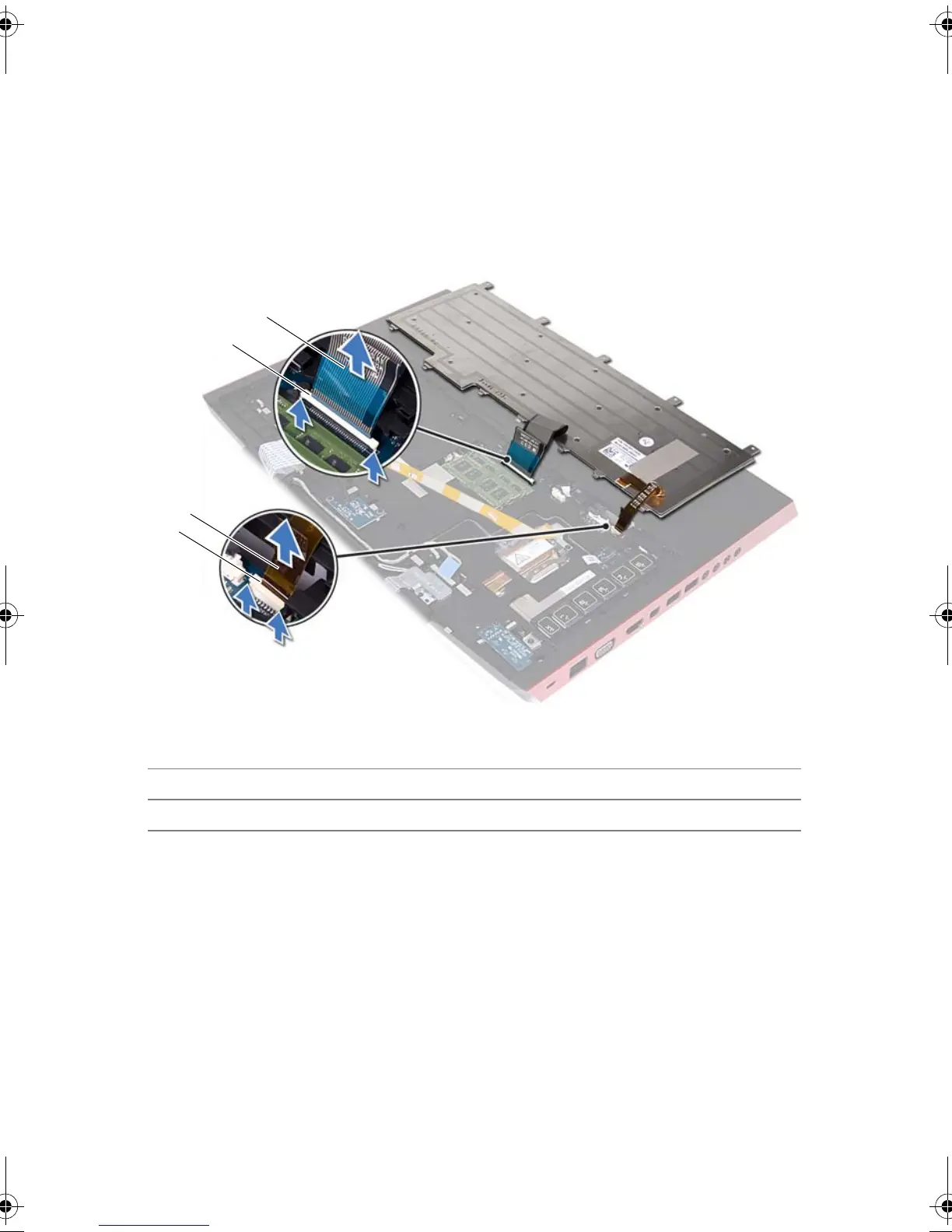

1 keyboard cable 2 connector latch
3 keyboard-backlight cable 4 connector latch
1
2
3
4
