Removing the Display Assembly | 47
8 Turn the computer over and open the display.
9 Note the routing of the display cable and LED-logo board cable, and then remove the
cables from the routing guides on the palm-rest assembly.
10 Remove the screws, on the display hinges, that secure the display assembly to the
computer base.
11 Gently slide out the antenna cables through the slot on the computer base.
12 Move the display to a perpendicular position to the computer base, and then lift the
display assembly off the computer.

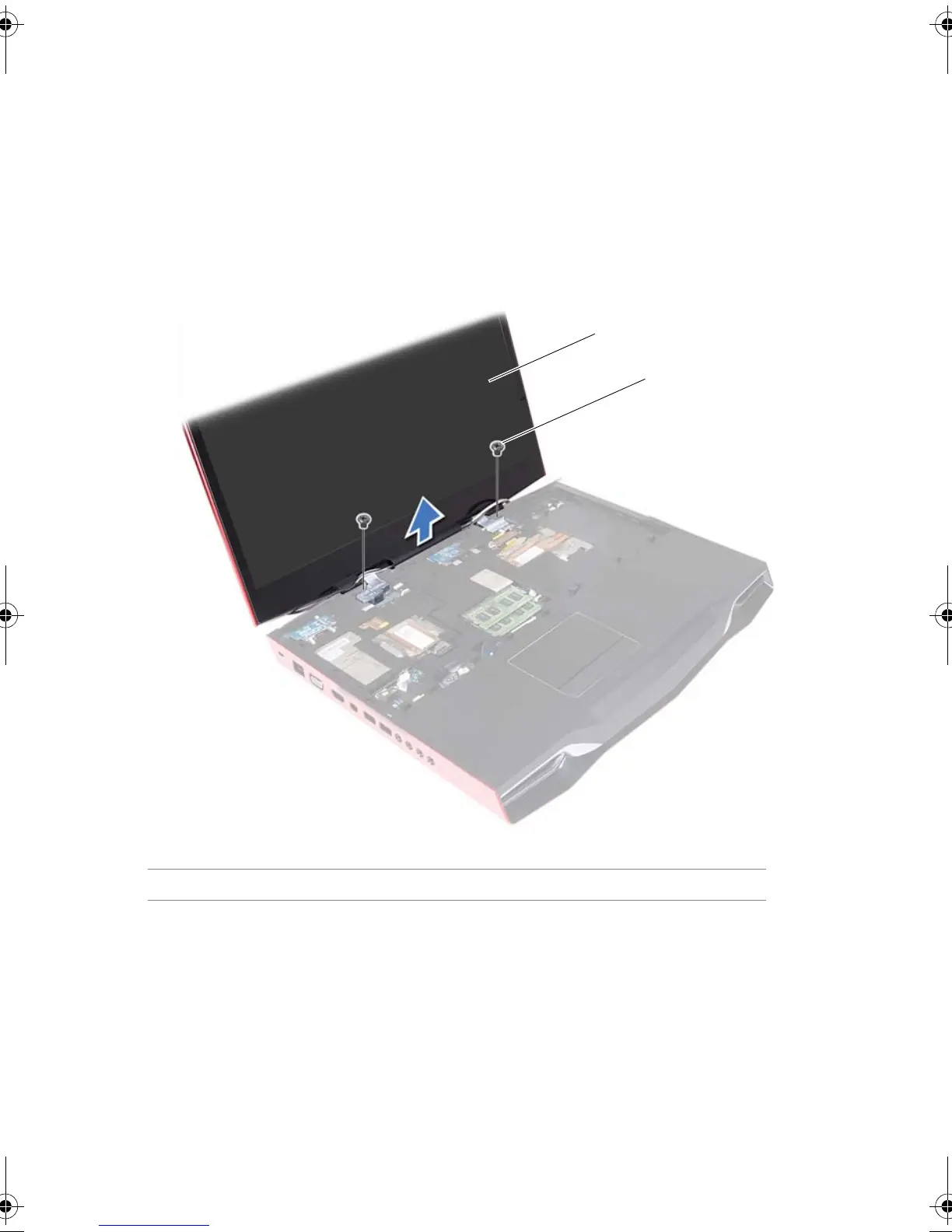

1 display assembly 2 screws (2)
1
2
