68 | Removing the Video-Card Heat-Sink Fan(s)
4 Disconnect the secondary video-card heat-sink fan cable from the connector on the
system board.
5 Loosen the captive screws that secure the secondary video-card heat-sink fan to the
computer base.
6 Lift the video-card heat-sink fan(s) along with the cable away from the computer
base.

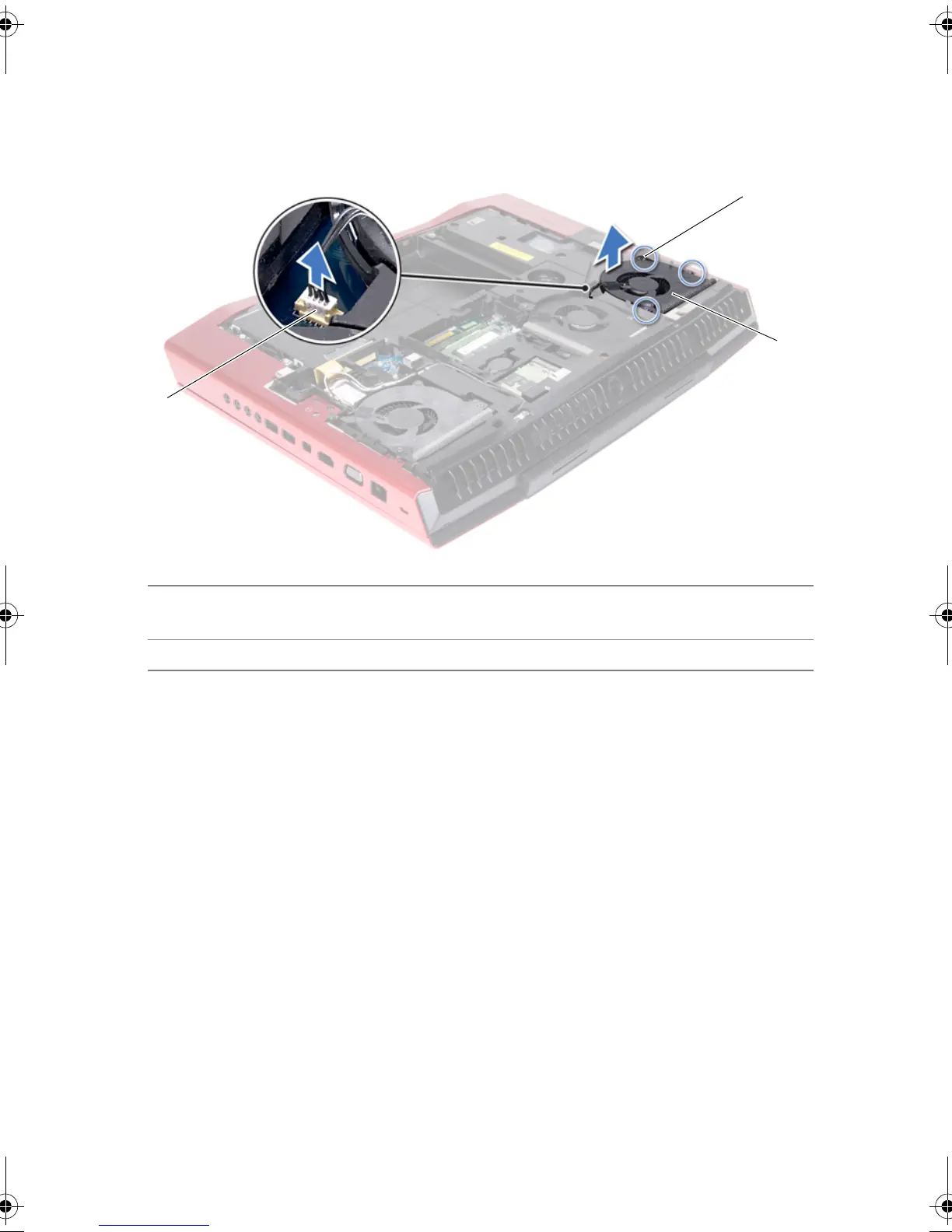

1 secondary video-card heat-sink fan
cable connector
2 secondary video-card
heat-sink fan
3 captive screws (3)
1
2
3
