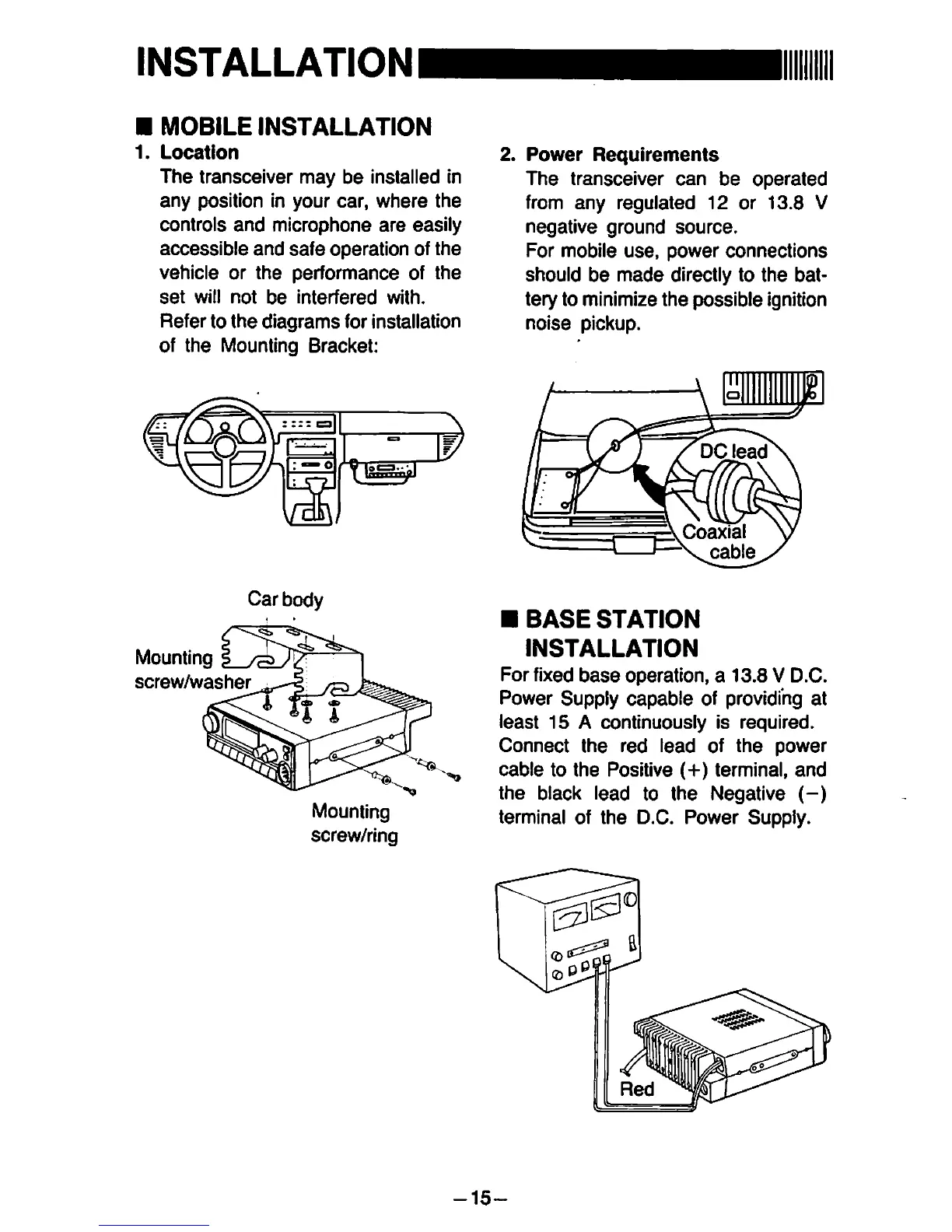

INSTALLATION
■ MOBILE INSTALLATION
1. Location
The transceiver may be instalied in
any position in your car, where the
controis and microphone are easily
accessible and safe Operation of the
vehicie or the Performance of the
set will not be interfered with.
Refer to the diagrams for installation
of the Mounting Bracket:
Car body
Mounting
screw/washer
Mounting
screw/ring
Power Requlrements
The transceiver can be operated
from any regulated 12 or 13.8 V
negative ground source.
For mobile use, power connections
should be made directiy to the bat-
tery to minimize the possible ignition
noise pickup.
P
DG lead
Coaxial
cable
■ BASE STATION
INSTALLATION
For fixed base Operation, a 13.8 V D.O.
Power Supply capable of providi'ng at
least 15 A continuously is required.
Connect the red lead of the power
cable to the Positive (+) terminal, and
the black lead to the Negative (-)
terminal of the D.O. Power Supply.
-15-
