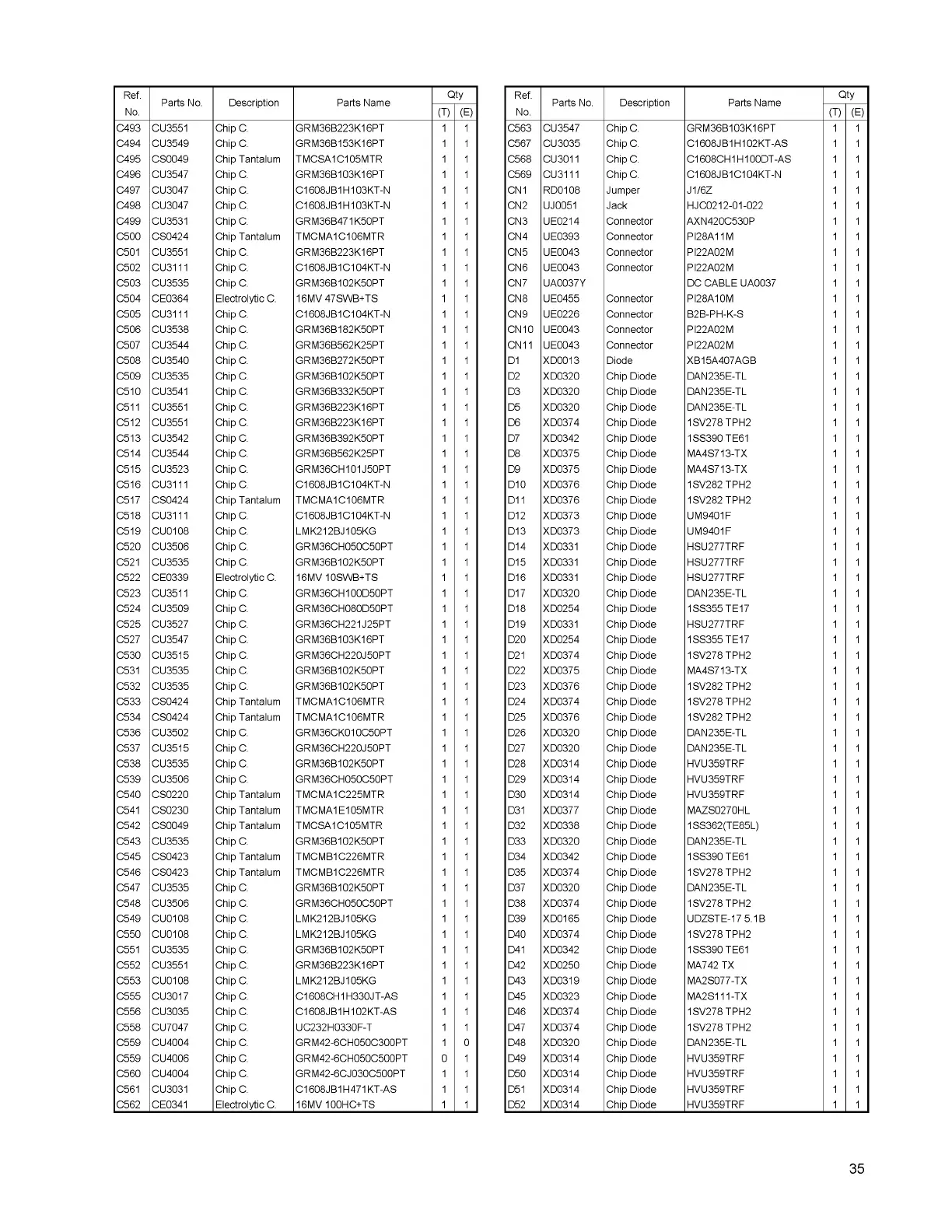

Alinco DR-620 - Page 35

To Next Page

To Previous Page

Ref.

Parts No. Description Parts Name

Qty

No.

(T)

(E)

C493 CU3551 Chip C. GRM36B223K16PT 1 1

C494 CU3549 Chip C. GRM36B153K16PT 1 1

C495 CS0049 Chip Tantalum TMCSA1C105MTR 1 1

C496 CU3547 Chip C. GRM36B103K16PT 1 1

C497 CU3047 Chip C. C1608JB1H103KT-N 1 1

C498 CU3047 Chip C. C1608JB1H103KT-N 1 1

C499 CU3531 Chip C. GRM36B471K50PT 1 1

C500 CS0424 Chip Tantalum TMCMA1C106MTR 1 1

C501 CU3551 Chip C. GRM36B223K16PT 1 1

C502 CU3111 Chip C. C1608JB1C104KT-N 1 1

C503 CU3535 Chip C. GRM36B102K50PT 1 1

C504 CE0364 Electrolytic C. 16MV 47SWB+TS 1 1

C505 CU3111 Chip C. C1608JB1C104KT-N 1 1

C506 CU3538 Chip C. GRM36B182K50PT 1 1

C507 CU3544 Chip C. GRM36B562K25PT 1 1

C508 CU3540 Chip C. GRM36B272K50PT 1 1

C509 CU3535 Chip C. GRM36B102K50PT 1 1

C510 CU3541 Chip C. GRM36B332K50PT 1 1

C511 CU3551 Chip C. GRM36B223K16PT 1 1

C512 CU3551 Chip C. GRM36B223K16PT 1 1

C513 CU3542 Chip C. GRM36B392K50PT 1 1

C514 CU3544 Chip C. GRM36B562K25PT 1 1

C515 CU3523 Chip C. GRM36CH101J50PT 1 1

C516 CU3111 Chip C. C1608JB1C104KT-N 1 1

C517 CS0424 Chip Tantalum TMCMA1C106MTR 1 1

C518 CU3111 Chip C. C1608JB1C104KT-N 1 1

C519 CU0108 Chip C. LMK212BJ105KG 1 1

C520 CU3506 Chip C. GRM36CH050C50PT 1 1

C521 CU3535 Chip C. GRM36B102K50PT 1 1

C522 CE0339 Electrolytic C. 16MV 10SWB+TS 1 1

C523 CU3511 Chip C. GRM36CH100D50PT 1

C524 CU3509 Chip C. GRM36CH080D50PT 1

C525 CU3527 Chip C. GRM36CH221J25PT 1 1

C527 CU3547 Chip C. GRM36B103K16PT 1 1

C530 CU3515 Chip C. GRM36CH220J50PT 1 1

C531 CU3535 Chip C. GRM36B102K50PT 1 1

C532 CU3535 Chip C. GRM36B102K50PT 1 1

C533 CS0424 Chip Tantalum TMCMA1C106MTR 1 1

C534 CS0424 Chip Tantalum TMCMA1C106MTR 1 1

C536 CU3502 Chip C. GRM36CK010C50PT 1 1

C537 CU3515 Chip C. GRM36CH220J50PT 1 1

C538 CU3535 Chip C. GRM36B102K50PT 1 1

C539 CU3506 Chip C. GRM36CH050C50PT 1 1

C540 CS0220 Chip Tantalum TMCMA1C225MTR 1 1

C541 CS0230 Chip Tantalum TMCMA1E105MTR 1 1

C542 CS0049 Chip Tantalum TMCSA1C105MTR 1 1

C543 CU3535 Chip C. GRM36B102K50PT 1 1

C545 CS0423 Chip Tantalum TMCMB1C226MTR 1 1

C546 CS0423 Chip Tantalum TMCMB1C226MTR 1 1

C547 CU3535 Chip C. GRM36B102K50PT 1 1

C548 CU3506 Chip C. GRM36CH050C50PT 1 1

C549 CU0108 Chip C. LMK212BJ105KG 1 1

C550 CU0108 Chip C. LMK212BJ105KG 1 1

C551 CU3535 Chip C. GRM36B102K50PT 1 1

C552 CU3551 Chip C. GRM36B223K16PT 1 1

C553 CU0108 Chip C. LMK212BJ105KG 1 1

C555 CU3017 Chip C. C1608CH1H330JT-AS 1 1

C556 CU3035 Chip C. C1608JB1H102KT-AS 1 1

C558 CU7047 Chip C. UC232H0330F-T 1 1

C559 CU4004 Chip C. GRM42-6CH050C300PT 1

C559 CU4006 Chip C. GRM42-6CH050C500PT 1

C560 CU4004 Chip C. GRM42-6CJ030C500PT 1 1

C561 CU3031 Chip C. C1608JB1H471KT-AS 1 1

C562 CE0341 Electrolytic C. 16MV 100HC+TS 1 1

Ref.

Parts No. Description Parts Name

Qty

No.

(T)

(E)

C563 CU3547 Chip C. GRM36B103K16PT 1 1

C567 CU3035 Chip C. C1608JB1H102KT-AS 1 1

C568 CU3011 Chip C. C1608CH1H100DT-AS 1 1

C569 CU3111 Chip C. C1608JB1C104KT-N 1 1

CN1 RD0108 Jumper J1/6Z 1 1

CN2 UJ0051 Jack HJC0212-01-022 1 1

CN3 UE0214 Connector AXN420C530P 1 1

CN4 UE0393 Connector PI28A11M 1 1

CN5 UE0043 Connector PI22A02M 1 1

CN6

CN7

UE0043

UA0037Y

Connector PI22A02M

DC CABLE UA0037

CN8 UE0455 Connector PI28A10M 1 1

CN9 UE0226 Connector B2B-PH-K-S 1 1

CN10 UE0043 Connector PI22A02M 1 1

CN11 UE0043 Connector PI22A02M 1 1

D1 XD0013 Diode XB15A407AGB 1 1

D2 XD0320 Chip Diode DAN235E-TL 1 1

D3 XD0320 Chip Diode DAN235E-TL 1 1

D5 XD0320 Chip Diode DAN235E-TL 1 1

D6 XD0374 Chip Diode 1SV278 TPH2 1 1

D7 XD0342 Chip Diode 1SS390 TE61 1 1

D8 XD0375 Chip Diode MA4S713-TX 1 1

D9 XD0375 Chip Diode MA4S713-TX 1 1

D10 XD0376 Chip Diode 1SV282 TPH2 1 1

D11 XD0376 Chip Diode 1SV282 TPH2 1 1

D12 XD0373 Chip Diode UM9401F 1 1

D13 XD0373 Chip Diode UM9401F 1 1

D14 XD0331 Chip Diode HSU277TRF 1 1

D15 XD0331 Chip Diode HSU277TRF 1 1

D16 XD0331 Chip Diode HSU277TRF 1 1

D17 XD0320 Chip Diode DAN235E-TL 1 1

D18 XD0254 Chip Diode 1SS355 TE17 1 1

D19 XD0331 Chip Diode HSU277TRF 1 1

D20 XD0254 Chip Diode 1SS355 TE17 1 1

D21 XD0374 Chip Diode 1SV278 TPH2 1 1

D22 XD0375 Chip Diode MA4S713-TX 1 1

D23 XD0376 Chip Diode 1SV282 TPH2 1 1

D24 XD0374 Chip Diode 1SV278 TPH2 1 1

D25 XD0376 Chip Diode 1SV282 TPH2 1 1

D26 XD0320 Chip Diode DAN235E-TL 1 1

D27 XD0320 Chip Diode DAN235E-TL 1 1

D28 XD0314 Chip Diode HVU359TRF 1 1

D29 XD0314 Chip Diode HVU359TRF 1 1

D30 XD0314 Chip Diode HVU359TRF 1 1

D31 XD0377 Chip Diode MAZS0270HL 1 1

D32 XD0338 Chip Diode 1SS362(TE85L) 1 1

D33 XD0320 Chip Diode DAN235E-TL 1 1

D34 XD0342 Chip Diode 1SS390 TE61 1 1

D35 XD0374 Chip Diode 1SV278 TPH2 1 1

D37 XD0320 Chip Diode DAN235E-TL 1 1

D38 XD0374 Chip Diode 1SV278 TPH2 1 1

D39 XD0165 Chip Diode UDZSTE-17 5.1B 1 1

D40 XD0374 Chip Diode 1SV278 TPH2 1 1

D41 XD0342 Chip Diode 1SS390 TE61 1 1

D42 XD0250 Chip Diode MA742 TX 1 1

D43 XD0319 Chip Diode MA2S077-TX 1 1

D45 XD0323 Chip Diode MA2S111-TX 1 1

D46 XD0374 Chip Diode 1SV278 TPH2 1 1

D47 XD0374 Chip Diode 1SV278 TPH2 1 1

D48 XD0320 Chip Diode DAN235E-TL 1 1

D49 XD0314 Chip Diode HVU359TRF 1 1

D50 XD0314 Chip Diode HVU359TRF 1 1

D51 XD0314 Chip Diode HVU359TRF 1 1

D52 XD0314 Chip Diode HVU359TRF 1 1
