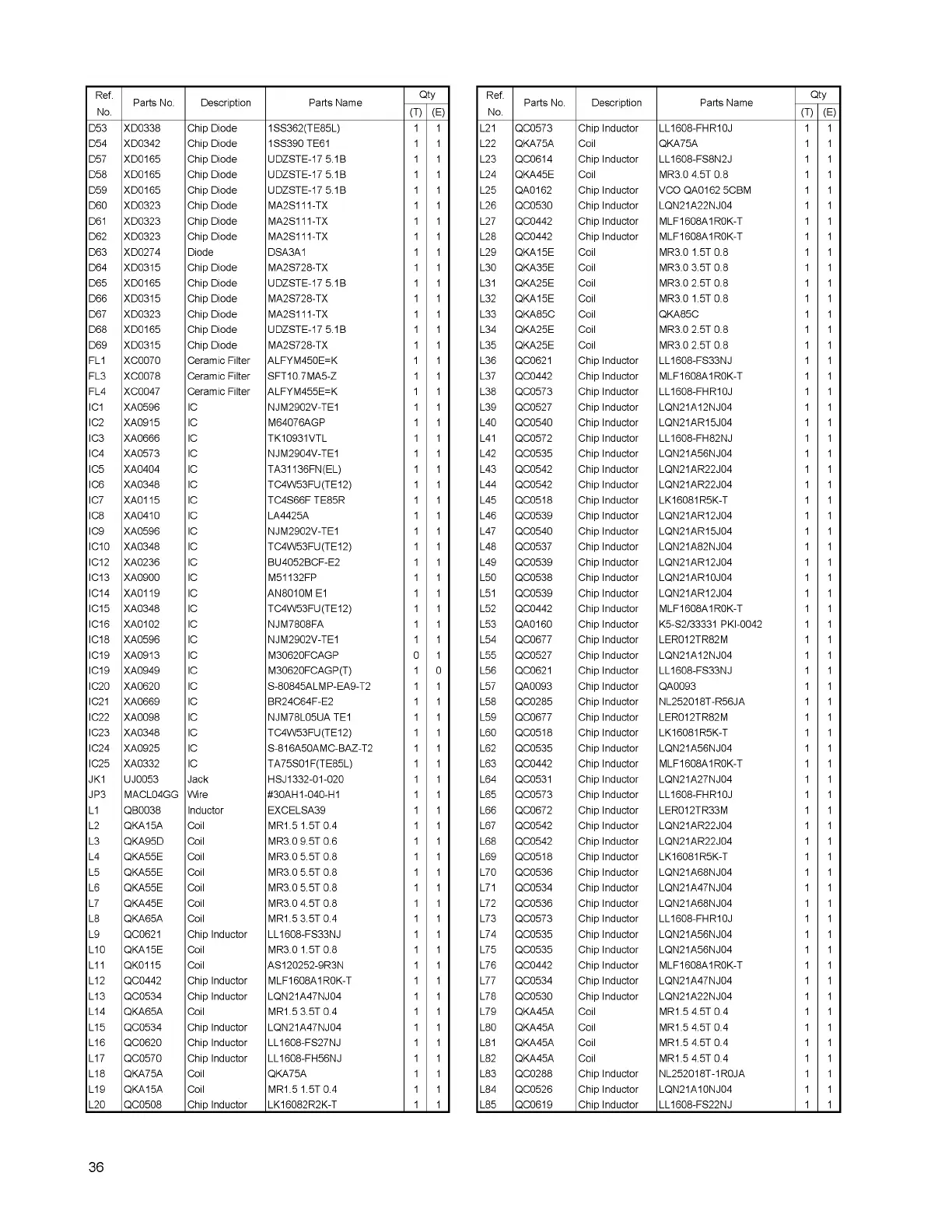

Alinco DR-620 - Page 36

To Next Page

To Previous Page

Ref.

Parts No. Description Parts Name

Qty

No.

(T)

(E)

D53 XD0338 Chip Diode 1SS362(TE85L) 1 1

D54 XD0342 Chip Diode 1SS390 TE61 1 1

D57 XD0165 Chip Diode UDZSTE-17 5.1B 1 1

D58 XD0165 Chip Diode UDZSTE-17 5.1B 1 1

D59 XD0165 Chip Diode UDZSTE-17 5.1B 1 1

D60 XD0323 Chip Diode MA2S111-TX 1 1

D61 XD0323 Chip Diode MA2S111-TX 1 1

D62 XD0323 Chip Diode MA2S111-TX 1 1

D63 XD0274 Diode DSA3A1 1 1

D64 XD0315 Chip Diode MA2S728-TX 1 1

D65 XD0165 Chip Diode UDZSTE-17 5.1B 1 1

D66 XD0315 Chip Diode MA2S728-TX 1 1

D67 XD0323 Chip Diode MA2S111-TX 1 1

D68 XD0165 Chip Diode UDZSTE-17 5.1B 1 1

D69 XD0315 Chip Diode MA2S728-TX 1 1

FL1 XC0070 Ceramic Filter ALFYM450E=K 1 1

FL3 XC0078 Ceramic Filter SFT10.7MA5-Z 1 1

FL4 XC0047 Ceramic Filter ALFYM455E=K 1 1

ICI XA0596 IC NJM2902V-TE1 1 1

IC2 XA0915 IC M64076AGP 1 1

IC3 XA0666 IC TK10931VTL 1 1

IC4 XA0573 IC NJM2904V-TE1 1 1

IC5 XA0404 IC TA31136FN(EL) 1 1

IC6 XA0348 IC TC4W53FU(TE12) 1 1

IC7 XA0115 IC TC4S66F TE85R 1 1

IC8 XA0410 IC LA4425A 1 1

IC9 XA0596 IC NJM2902V-TE1 1 1

IC10 XA0348 IC TC4W53FU(TE12) 1 1

IC12 XA0236 IC BU4052BCF-E2 1 1

IC13 XA0900 IC M51132FP 1 1

IC14 XA0119 IC AN8010M E1 1

IC15 XA0348 IC TC4W53FU(TE12) 1

IC16 XA0102 IC NJM7808FA 1 1

IC18 XA0596 IC NJM2902V-TE1 1 1

IC19 XA0913 IC M30620FCAGP 1

IC19 XA0949 IC M30620FCAGP(T) 1

IC20 XA0620 IC S-80845ALMP-EA9-T2 1 1

IC21 XA0669 IC BR24C64F-E2 1 1

IC22 XA0098 IC NJM78L05UA TE1 1 1

IC23 XA0348 IC TC4W53FU(TE12) 1 1

IC24 XA0925 IC S-816A50AMC-BAZ-T2 1 1

IC25 XA0332 IC TA75S01F(TE85L) 1 1

JK1 UJ0053 Jack HSJ1332-01-020 1 1

JP3 MACL04GG Wire #30AH1-040-H1 1 1

L1 QB0038 Inductor EXCELSA39 1 1

L2 QKA15A Coil MR1.5 1.5T 0.4 1 1

L3 QKA95D Coil MR3.0 9.5T 0.6 1 1

L4 QKA55E Coil MR3.0 5.5T 0.8 1 1

L5 QKA55E Coil MR3.0 5.5T 0.8 1 1

L6 QKA55E Coil MR3.0 5.5T 0.8 1 1

L7 QKA45E Coil MR3.0 4.5T 0.8 1 1

L8 QKA65A Coil MR1.5 3.5T 0.4 1 1

L9 QC0621 Chip Inductor LL1608-FS33NJ 1 1

L10 QKA15E Coil MR3.0 1.5T 0.8 1 1

L11 QK0115 Coil AS120252-9R3N 1 1

L12 QC0442 Chip Inductor MLF1608A1R0K-T 1 1

L13 QC0534 Chip Inductor LQN21A47NJ04 1 1

L14 QKA65A Coil MR1.5 3.5T 0.4 1 1

L15 QC0534 Chip Inductor LQN21A47NJ04 1 1

L16 QC0620 Chip Inductor LL1608-FS27NJ 1 1

L17 QC0570 Chip Inductor LL1608-FH56NJ 1 1

L18 QKA75A Coil QKA75A 1 1

L19 QKA15A Coil MR1.5 1.5T 0.4 1 1

L20 QC0508 Chip Inductor LK16082R2K-T 1 1

Ref.

Parts No. Description Parts Name

Qty

No.

(T)

(E)

L21 QC0573 Chip Inductor LL1608-FHR10J 1 1

L22 QKA75A Coil QKA75A 1 1

L23 QC0614 Chip Inductor LL1608-FS8N2J 1 1

L24 QKA45E Coil MR3.0 4.5T 0.8 1 1

L25 QA0162 Chip Inductor VCO QA0162 5CBM 1 1

L26 QC0530 Chip Inductor LQN21A22NJ04 1 1

L27 QC0442 Chip Inductor MLF1608A1R0K-T 1 1

L28 QC0442 Chip Inductor MLF1608A1R0K-T 1 1

L29 QKA15E Coil MR3.0 1.5T 0.8 1 1

L30 QKA35E Coil MR3.0 3.5T 0.8 1 1

L31 QKA25E Coil MR3.0 2.5T 0.8 1 1

L32 QKA15E Coil MR3.0 1.5T 0.8 1 1

L33 QKA85C Coil QKA85C 1 1

L34 QKA25E Coil MR3.0 2.5T 0.8 1 1

L35 QKA25E Coil MR3.0 2.5T 0.8 1 1

L36 QC0621 Chip Inductor LL1608-FS33NJ 1 1

L37 QC0442 Chip Inductor MLF1608A1R0K-T 1 1

L38 QC0573 Chip Inductor LL1608-FHR10J 1 1

L39 QC0527 Chip Inductor LQN21A12NJ04 1 1

L40 QC0540 Chip Inductor LQN21AR15J04 1 1

L41 QC0572 Chip Inductor LL1608-FH82NJ 1 1

L42 QC0535 Chip Inductor LQN21A56NJ04 1 1

L43 QC0542 Chip Inductor LQN21AR22J04 1 1

L44 QC0542 Chip Inductor LQN21AR22J04 1 1

L45 QC0518 Chip Inductor LK16081R5K-T 1 1

L46 QC0539 Chip Inductor LQN21AR12J04 1 1

L47 QC0540 Chip Inductor LQN21AR15J04 1 1

L48 QC0537 Chip Inductor LQN21A82NJ04 1 1

L49 QC0539 Chip Inductor LQN21AR12J04 1 1

L50 QC0538 Chip Inductor LQN21AR10J04 1 1

L51 QC0539 Chip Inductor LQN21AR12J04 1 1

L52 QC0442 Chip Inductor MLF1608A1R0K-T 1 1

L53 QA0160 Chip Inductor K5-S2/33331 PKI-0042 1 1

L54 QC0677 Chip Inductor LER012TR82M 1 1

L55 QC0527 Chip Inductor LQN21A12NJ04 1 1

L56 QC0621 Chip Inductor LL1608-FS33NJ 1 1

L57 QA0093 Chip Inductor QA0093 1 1

L58 QC0285 Chip Inductor NL252018T-R56JA 1 1

L59 QC0677 Chip Inductor LER012TR82M 1 1

L60 QC0518 Chip Inductor LK16081R5K-T 1 1

L62 QC0535 Chip Inductor LQN21A56NJ04 1 1

L63 QC0442 Chip Inductor MLF1608A1R0K-T 1 1

L64 QC0531 Chip Inductor LQN21A27NJ04 1 1

L65 QC0573 Chip Inductor LL1608-FHR10J 1 1

L66 QC0672 Chip Inductor LER012TR33M 1 1

L67 QC0542 Chip Inductor LQN21AR22J04 1 1

L68 QC0542 Chip Inductor LQN21AR22J04 1 1

L69 QC0518 Chip Inductor LK16081R5K-T 1 1

L70 QC0536 Chip Inductor LQN21A68NJ04 1 1

L71 QC0534 Chip Inductor LQN21A47NJ04 1 1

L72 QC0536 Chip Inductor LQN21A68NJ04 1 1

L73 QC0573 Chip Inductor LL1608-FHR10J 1 1

L74 QC0535 Chip Inductor LQN21A56NJ04 1 1

L75 QC0535 Chip Inductor LQN21A56NJ04 1 1

L76 QC0442 Chip Inductor MLF1608A1R0K-T 1 1

L77 QC0534 Chip Inductor LQN21A47NJ04 1 1

L78 QC0530 Chip Inductor LQN21A22NJ04 1 1

L79 QKA45A Coil MR1.5 4.5T 0.4 1 1

L80 QKA45A Coil MR1.5 4.5T 0.4 1 1

L81 QKA45A Coil MR1.5 4.5T 0.4 1 1

L82 QKA45A Coil MR1.5 4.5T 0.4 1 1

L83 QC0288 Chip Inductor NL252018T-1R0JA 1 1

L84 QC0526 Chip Inductor LQN21A10NJ04 1 1

L85 QC0619 Chip Inductor LL1608-FS22NJ 1 1
