Part 2.2: FPGA Chip
As mentioned above, the FPGA model we use is XC7A100T-2FGG484I,
which belongs to Xilinx's Artix-7 series. The speed grade is 2, and the
temperature grade is industry grade. This model is a FGG484 package with
484 pins. Xilinx ARTIX-7 FPGA chip naming rules as below

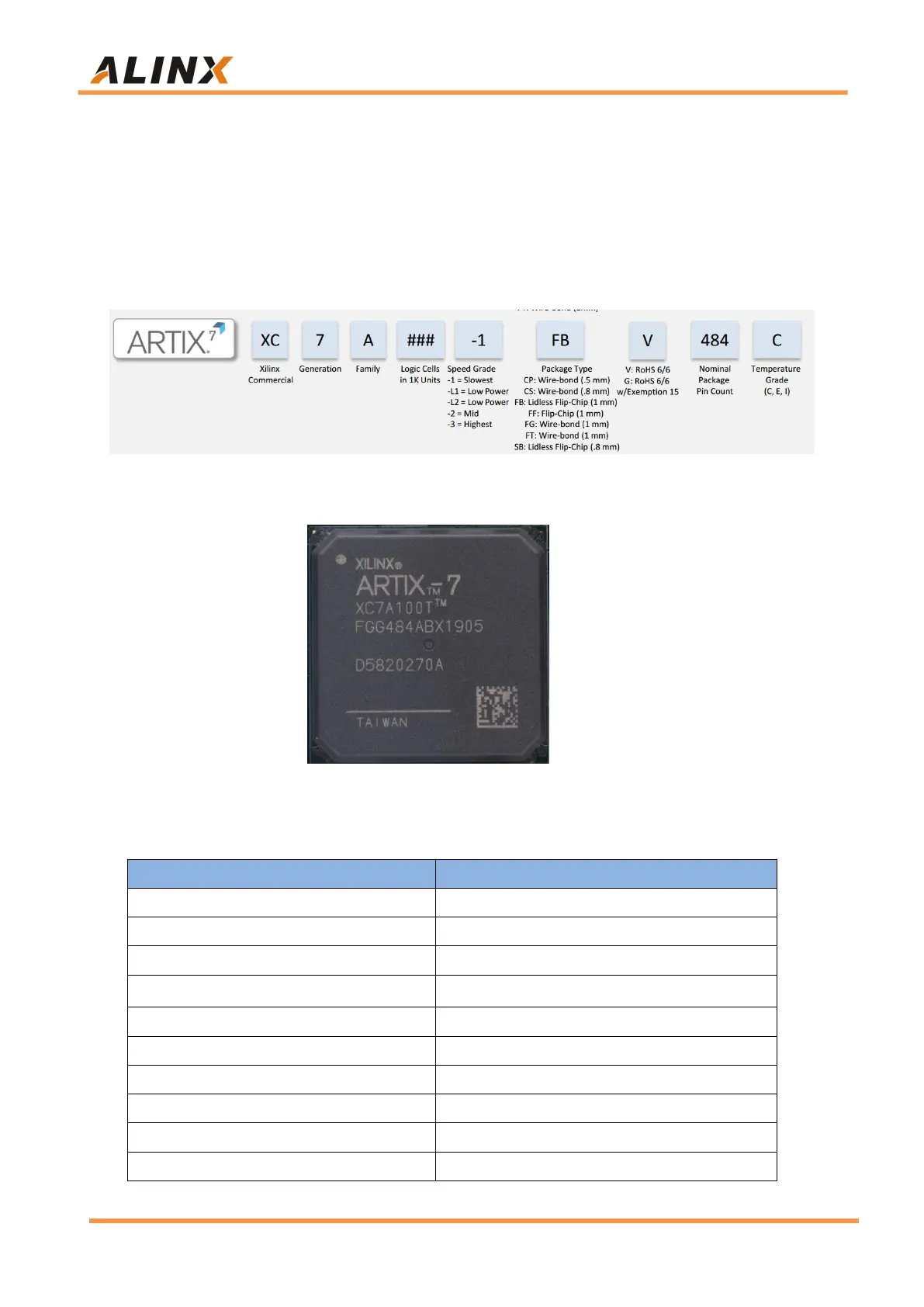

Figure 2-2-1: The Specific Chip Model Definition of ARTIX-7 Series
Figure 2-2-2: FPGA chip on board
The main parameters of the FPGA chip XC7A100T are as follows
Name
Specific parameters
Logic Cells
101440
Slices
15850
CLB flip-flops
126800
Block RAM（kb）
4860
DSP Slices
240
PCIe Gen2
1
XADC
1 XADC, 12bit, 1Mbps AD
GTP Transceiver
4 GTP, 6.6Gb/s max
Speed Grade
-2
Temperature Grade
Industrial
