Part 3: Carrier Board
Part 3.1: Carrier Board Introduction

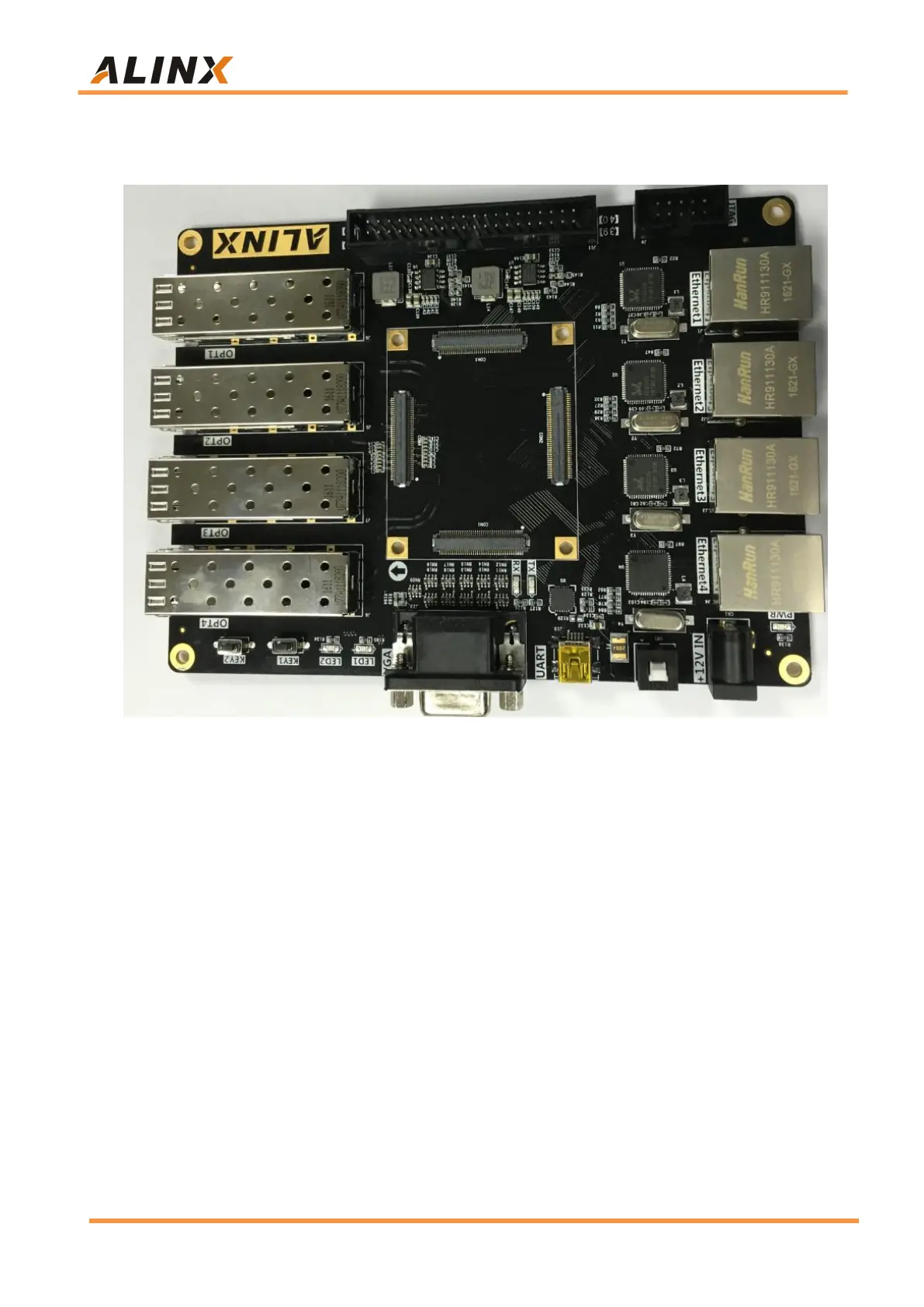

Through the previous function introduction, you can understand the
function of the carrier board part
 4-channel 10/100M/1000M Ethernet RJ-45 interface
 4-channel SFP interface
 1-channel 16-bit VGA output interface
 1-channel USB Uart debug interface
 40-pin expansion ports
 JTAG debugging interface
 2 independent Keys
 2 user LED lights
