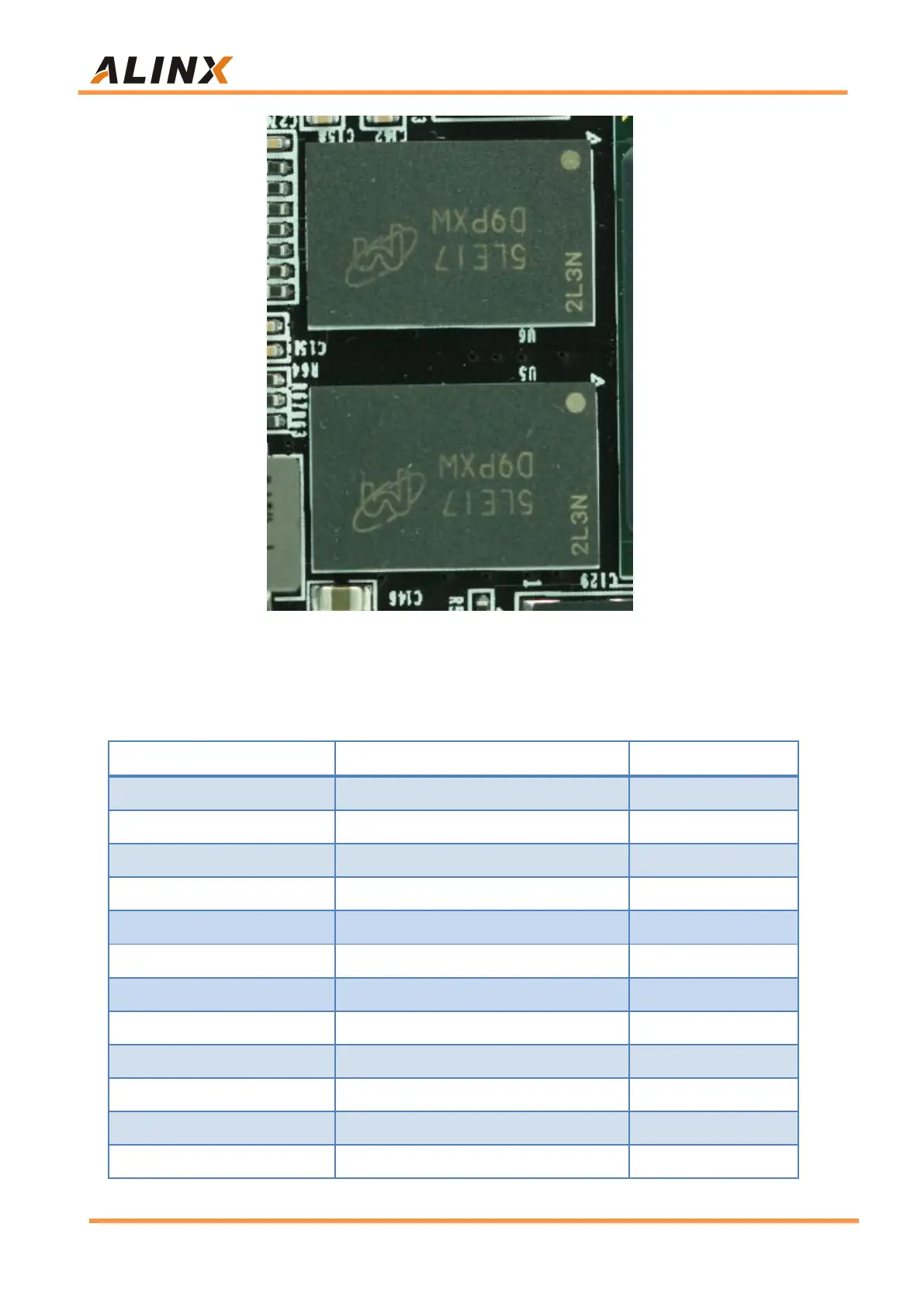

Figure 2-4-2: The DDR3 on the Core Board
DDR3 DRAM pin assignment:
Net Name
FPGA PIN Name
FPGA P/N
DDR3_DQS0_P
IO_L3P_T0_DQS_AD5P_35
E1
DDR3_DQS0_N
IO_L3N_T0_DQS_AD5N_35
D1
DDR3_DQS1_P
IO_L9P_T1_DQS_AD7P_35
K2
DDR3_DQS1_N
IO_L9N_T1_DQS_AD7N_35
J2
DDR3_DQS2_P
IO_L15P_T2_DQS_35
M1
DDR3_DQS2_N
IO_L15N_T2_DQS_35
L1
DDR3_DQS3_P
IO_L21P_T3_DQS_35
P5
DDR3_DQS3_N
IO_L21N_T3_DQS_35
P4
DDR3_DQ[0]
IO_L2P_T0_AD12P_35
C2
DDR3_DQ [1]
IO_L5P_T0_AD13P_35
G1
DDR3_DQ [2]
IO_L1N_T0_AD4N_35
A1
DDR3_DQ [3]
IO_L6P_T0_35
F3
