68 Rockwell Automation Publication 1734-UM013C-EN-P - August 2010
Chapter 6 Configure the Module in a GuardLogix Controller

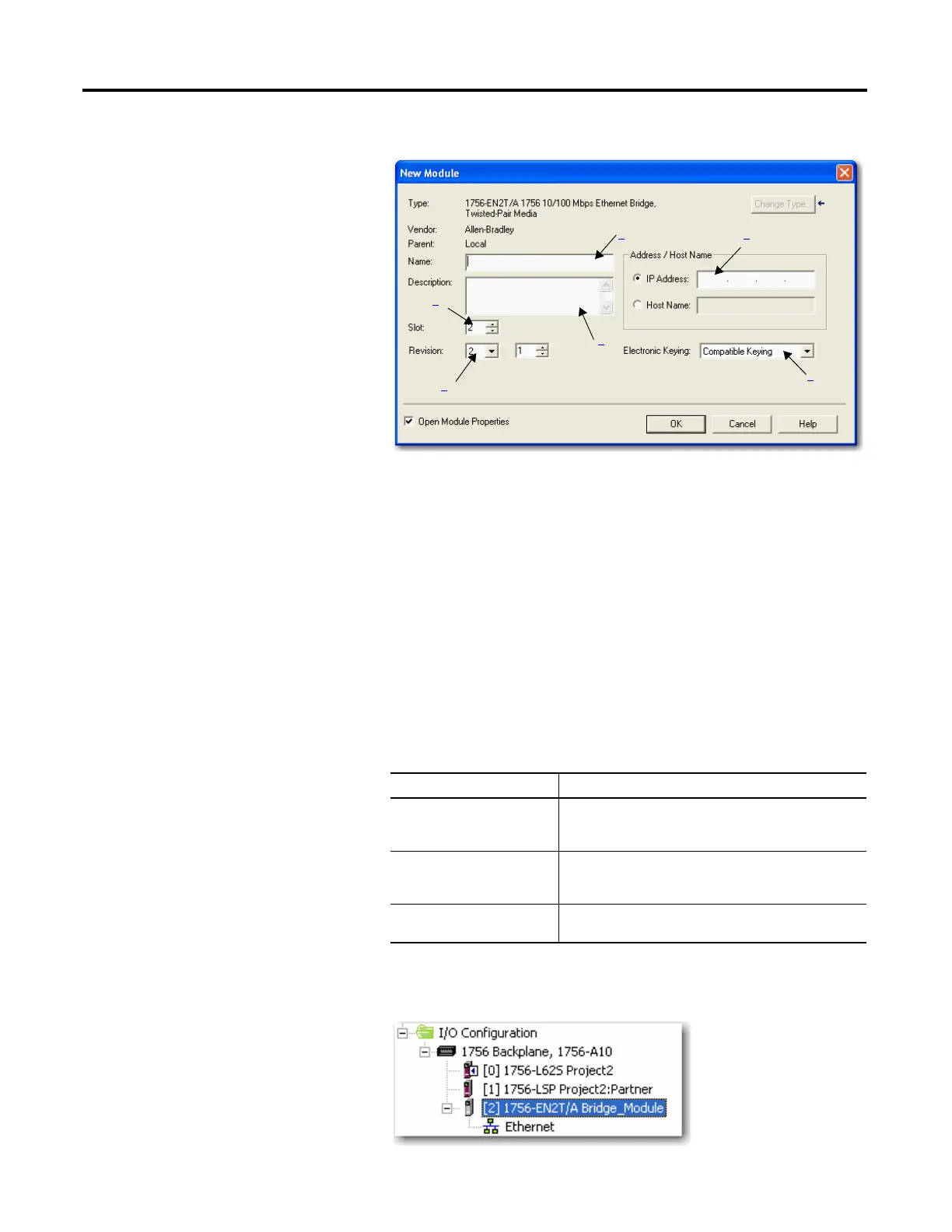

This New Module dialog box appears.
4. In the Name box, type the appropriate name of the Ethernet bridge
module.
5. In the Description box, enter an optional description of the Ethernet
bridge module.
6. In the IP Address box, enter the appropriate IP address of the Ethernet
bridge module.
7. In the Slot box, enter the appropriate slot number of the Ethernet bridge
module.
8. In the Revision boxes, enter the appropriate major and minor revisions of
the bridge module.
9. From the Electronic Keying pull-down menu, choose the appropriate
keying method for the Ethernet bridge module.
10. Click OK.
The I/O Configuration tree displays the Ethernet connection.
Choose Description
Compatible Module Allows a module to determine whether it can emulate the
module defined in the configuration sent from the
controller.
Disable Keying None of the parameters in the physical module and
module configured in the software must match. Do not
choose Disable Keying.
Exact Match All of the parameters must match or the inserted module
rejects a connection to the controller.
