104 Rockwell Automation Publication 1734-UM013C-EN-P - August 2010
Chapter 7 Configure the Module for a SmartGuard Controller
Set Up the Input and Output
Connections of the
SmartGuard Controller
Use this procedure to set up the input and output connections of the SmartGuard
controller.

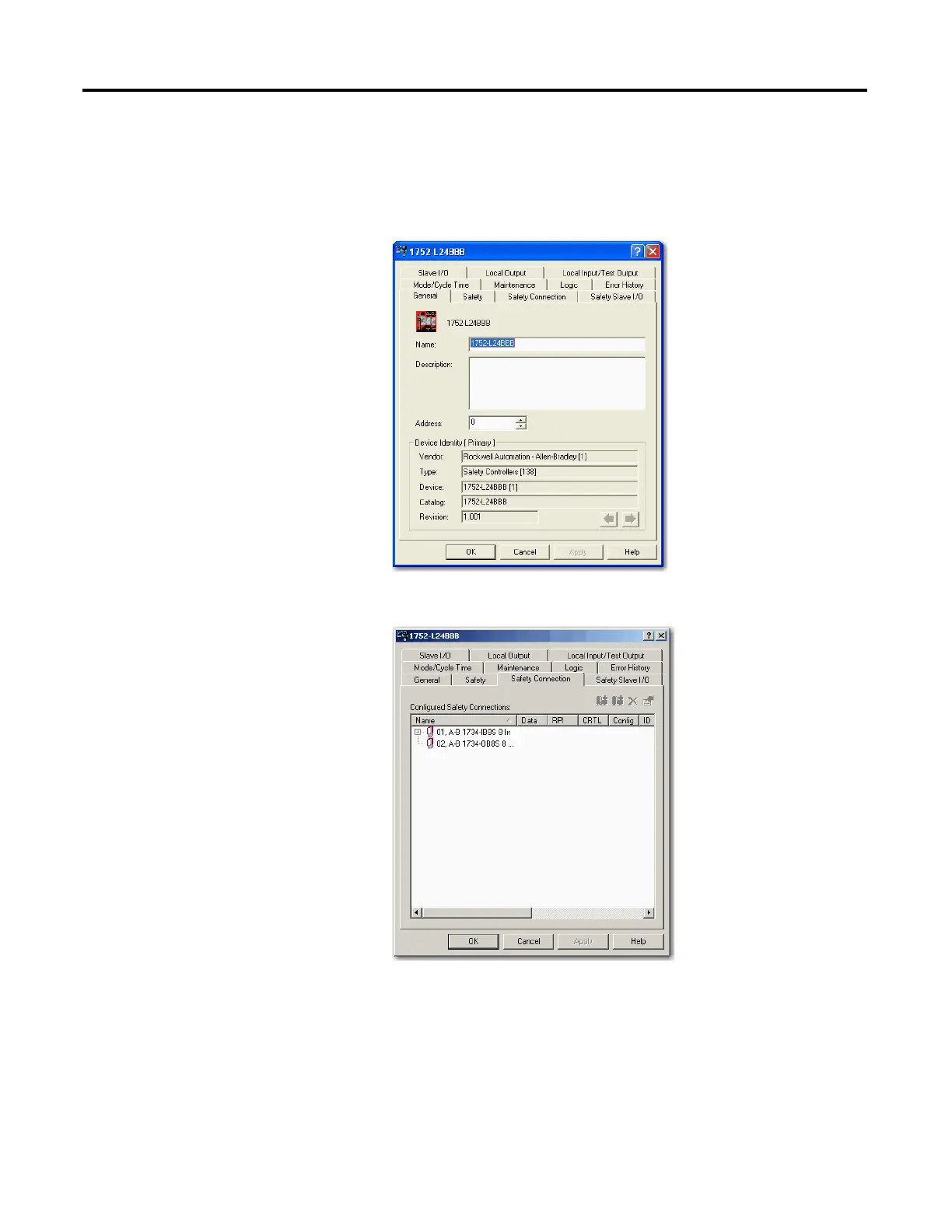

1. In RSNetWorx for DeviceNet software, right-click the SmartGuard
controller and choose Properties.
2. Click the Safety Connection tab to see a list of all Safety I/O modules
currently in your project.
