Chapter 7 Configure the Module for a SmartGuard Controller

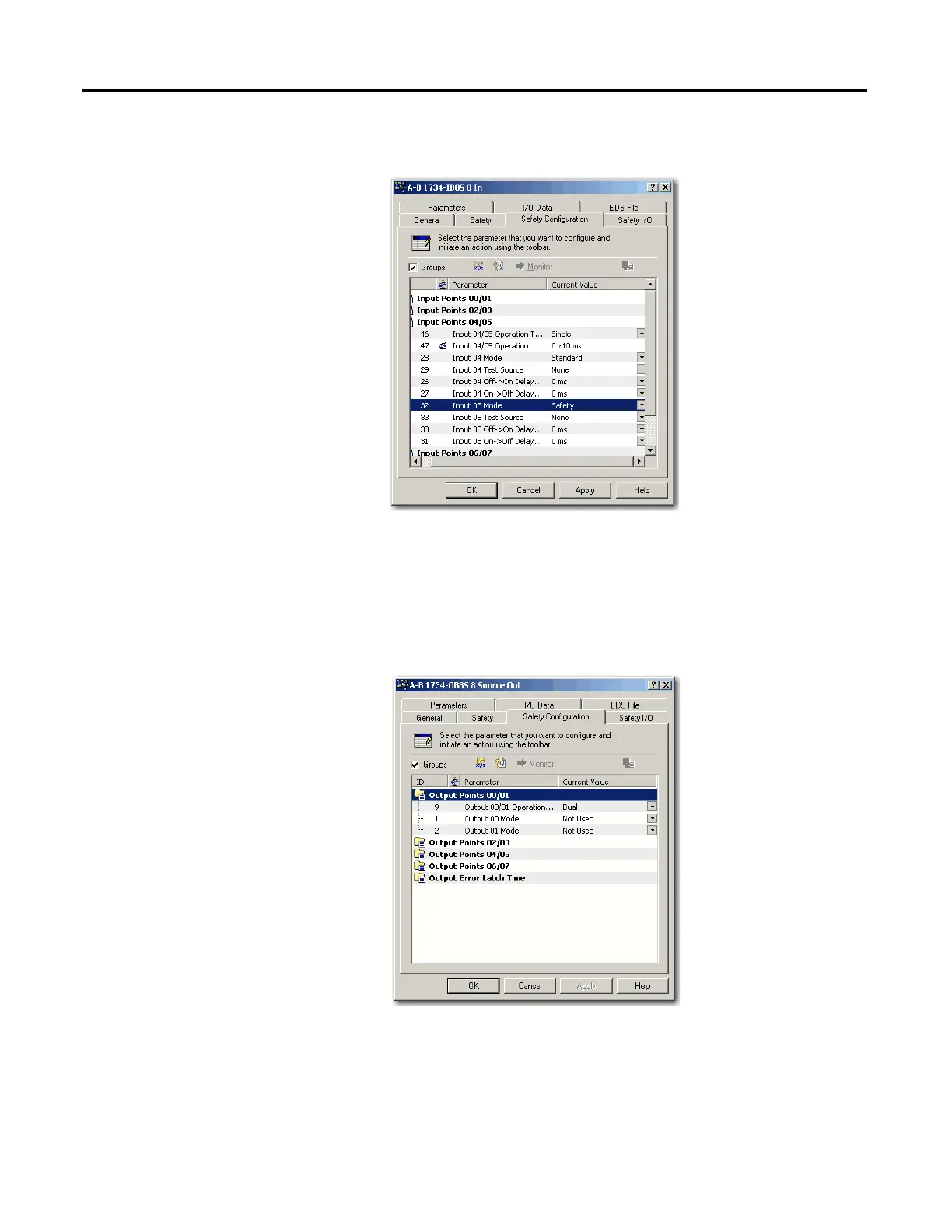

9. Add the AUX feedback circuit for the redundant safety contactors to
input 05, making it a safety input as it is not being pulse tested.
10. Double-click Input Points 04/05 to minimize.
Work with Outputs
1. Double-click Outputs Points 00/01 to expand, noting that safety
contactors are connected to outputs 00 and 01.
