Configure the Module in a GuardLogix Controller Chapter 6
15. From the Data Format pull-down menu, use the default ‘Integer’.
16. Click OK.
You return to the Module Properties dialog box.

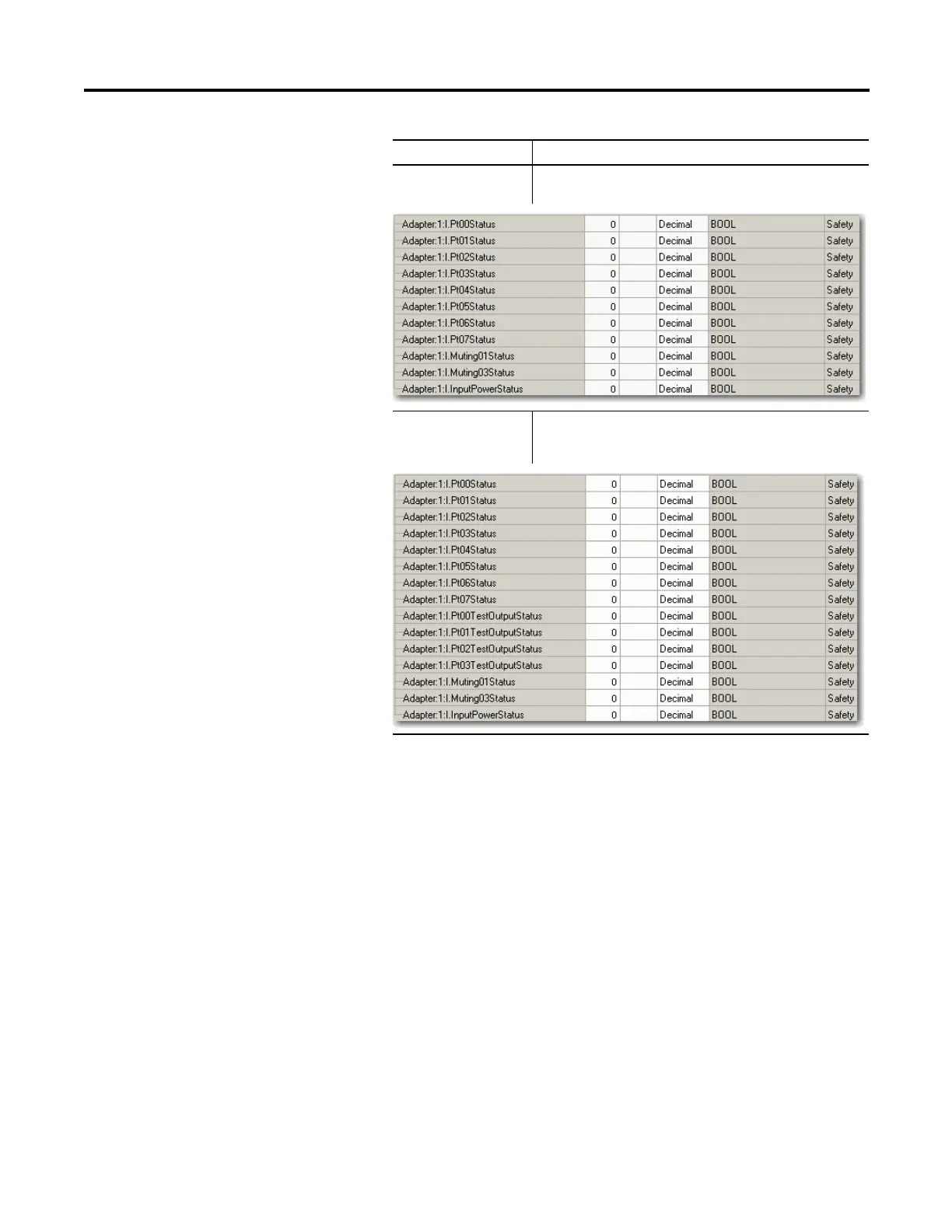

Pt. Status - Muting There is a muting status tag for test output T1 and T3 with point
status for each input point.
Pt. Status-Muting-Test
Output
• Status tags for each of the input points.
• Muting status tag for test output T1 and T3.
• Status tags for each of the test outputs.
(1) When using combined status, use explicit messaging to read individual point status for diagnostic
purposes.
Choose Description
