1756-L7x Controller Status
Display and Indicators
The 1756-L7x controllers have four status indicators and one four-character
scrolling status display.

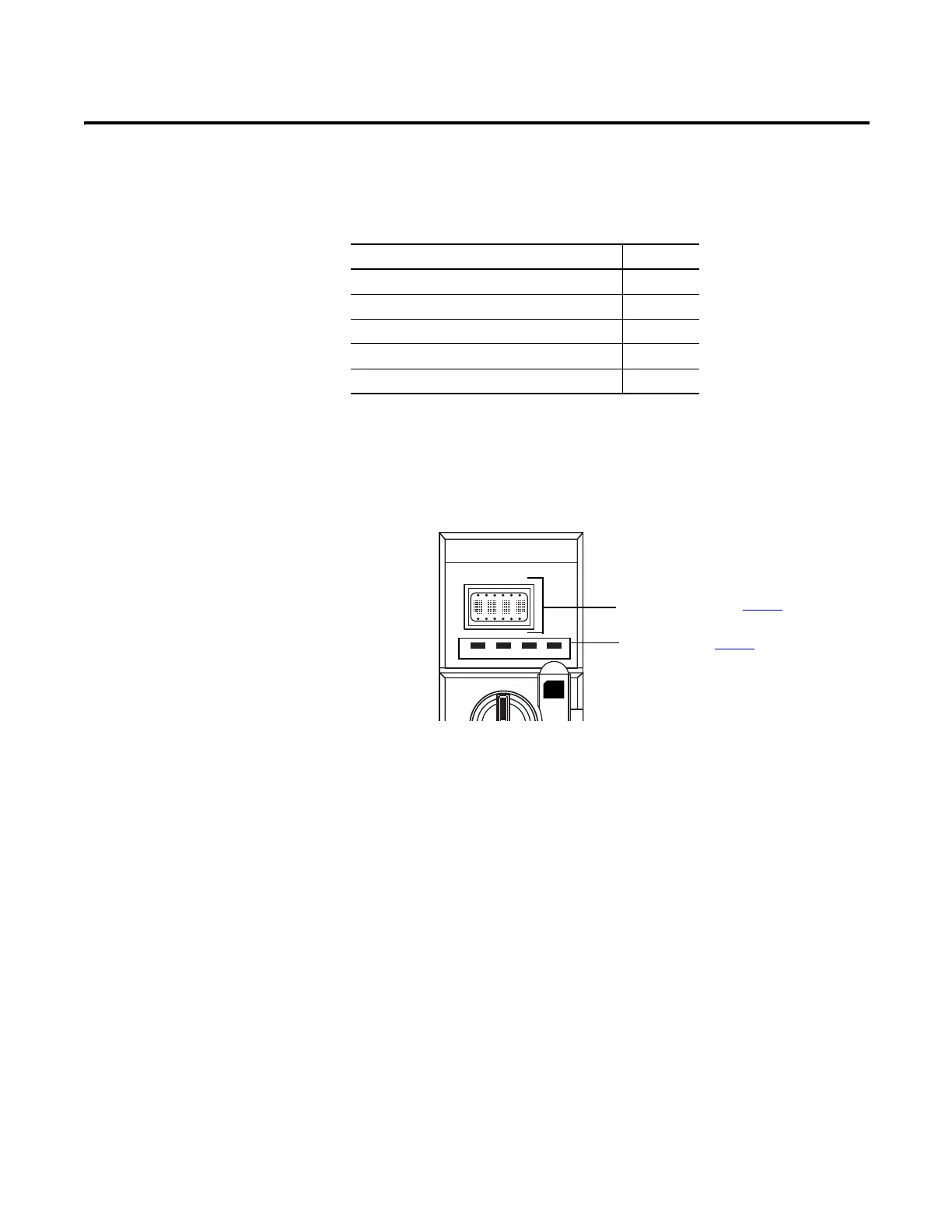

Figure 46 - 1756-L7x Status Display and Indicators
1756-L7x Controller Status
Display
The 1756-L7x controller status display scrolls messages that provide information
about the controller’s firmware revision, ESM status, project status, and major
faults.
Topic Page
1756-L7x Controller Status Display and Indicators 199
1756-L7x Controller Status Display 199
1756-L7x Controller Status Indicators 206
1756-L6x Status Indicators 208
Additional Resources 211
OKFORCE SDRUN
Logix557x
R
U
N
R
E
M
P
R
O
G
Scrolling Status Display, see page 200
Status Indicators, see page 206
