Allen-Bradley CENTERLINE User Manual

Publication 2100-IN012B-EN-P - April 2005
General Information 1-5
Motor control center units that are UL listed and/or CSA/cUL certified will
carry a short circuit rating label located on the bottom plate of plug-in units or
on interior right-hand side plate of frame mounted units. See Figure 1.6.

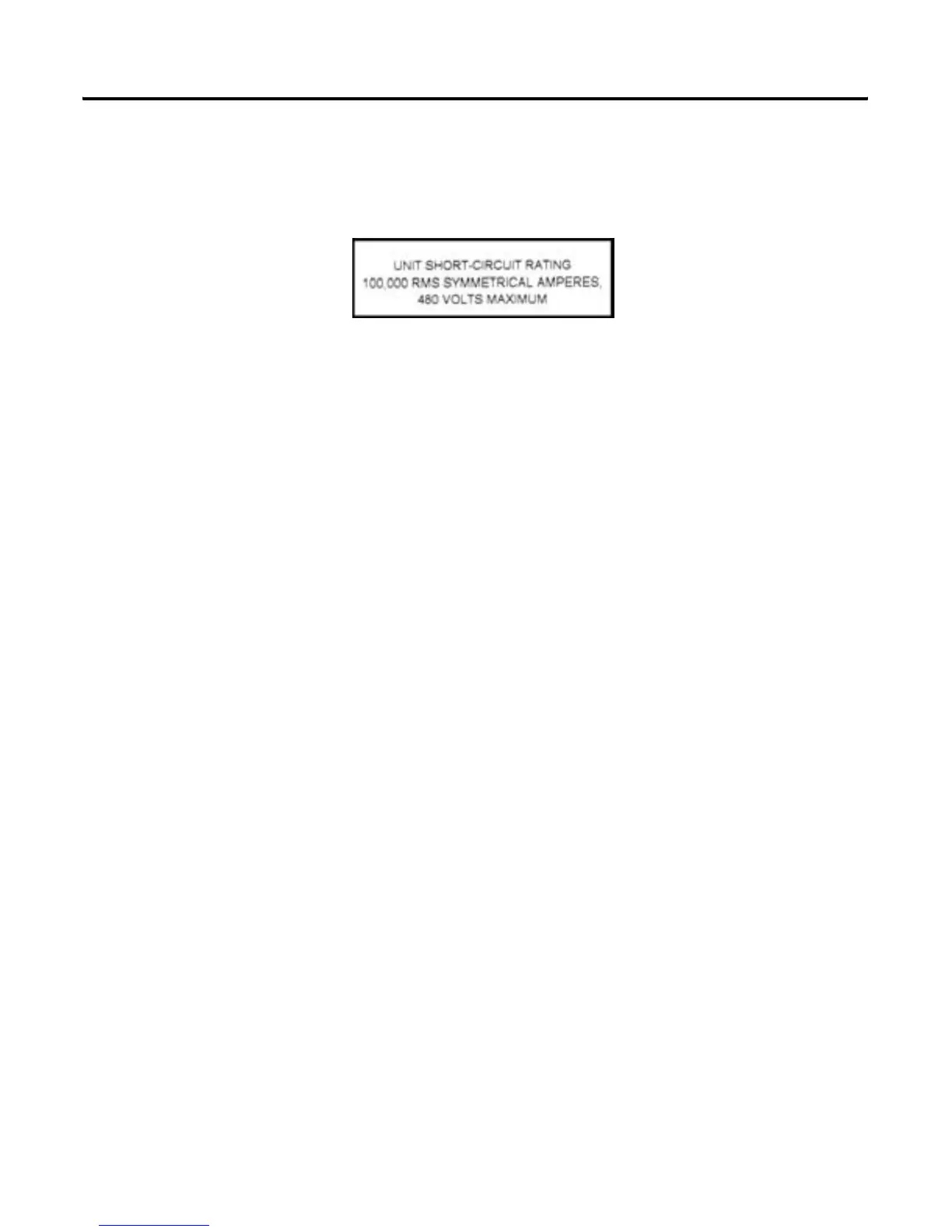

Figure 1.6 Short Circuit Label for Units

Allen-Bradley CENTERLINE Specifications

General

Short Circuit Current Rating (SCCR)	Up to 100kA
Modular Design	Yes
Type	Motor Control Center (MCC)
Voltage	Up to 600V AC
Communication Protocols	EtherNet/IP, DeviceNet
Enclosure Type	NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Standards Compliance	UL 845, IEC 61439
