7-4 Operator Handle and Unit Interlock

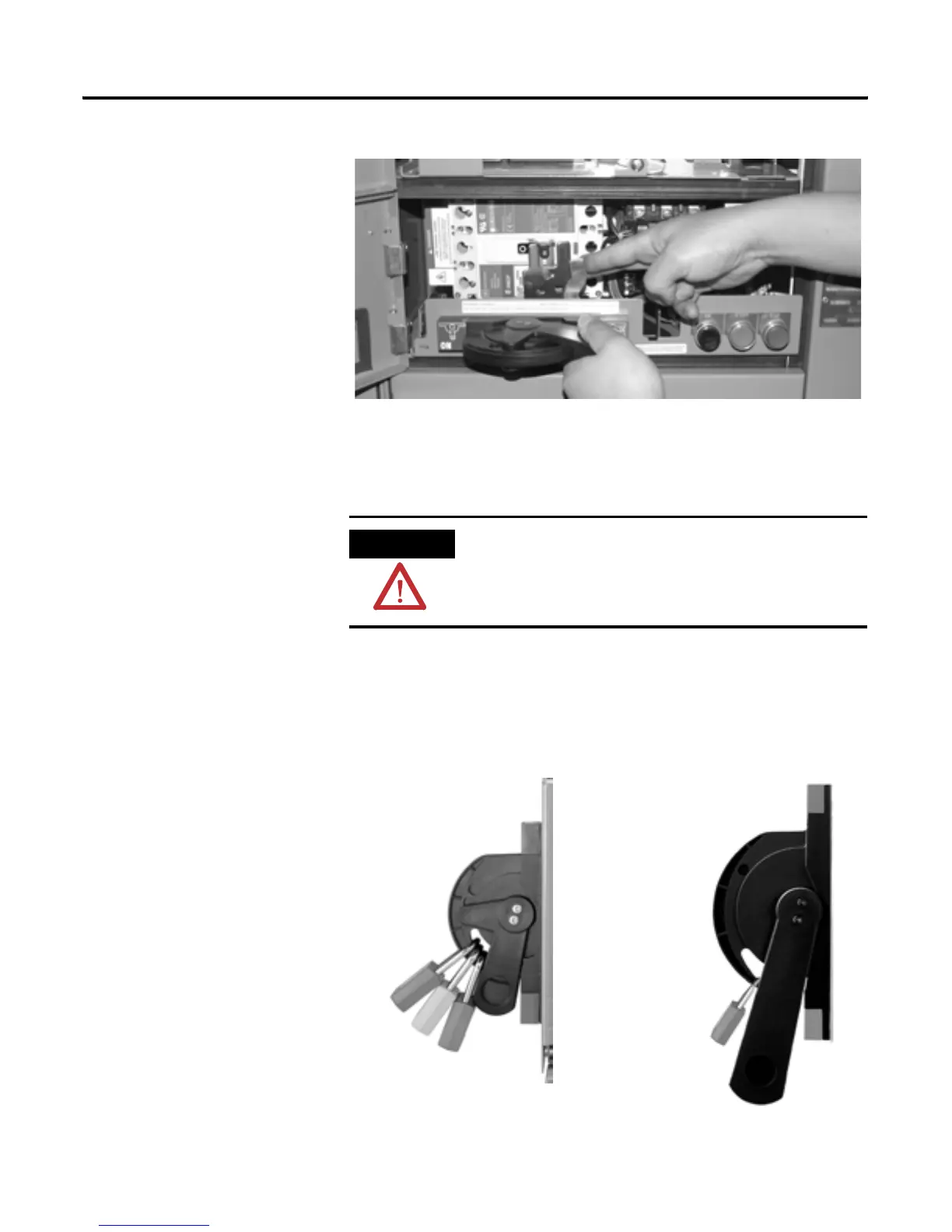

Figure 7.4 Defeater Lever for Horizontal Operating Handle
Locking Provisions
Locking Vertical Operating Handles in the OFF/ O Position
To lock the small, medium and large operator handle in the OFF/O position,
put the shackle of the lock through the opening in the operator handle
assembly. The opening can accommodate up to three (3) padlocks. See Figure
7.5.
Figure 7.5 Locking Vertical Handles in OFF/O Position
ATTENTION
Follow NFPA 70E for proper lockout/tagout guidelines
when working on energized equipment.
Small and Medium Vertical Handle
Large Handle

Allen-Bradley CENTERLINE Specifications

General

Short Circuit Current Rating (SCCR)	Up to 100kA
Modular Design	Yes
Type	Motor Control Center (MCC)
Voltage	Up to 600V AC
Communication Protocols	EtherNet/IP, DeviceNet
Enclosure Type	NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Standards Compliance	UL 845, IEC 61439
