Allen-Bradley CENTERLINE User Manual

Publication 2100-IN012B-EN-P - April 2005
Parts Illustrations 12-3

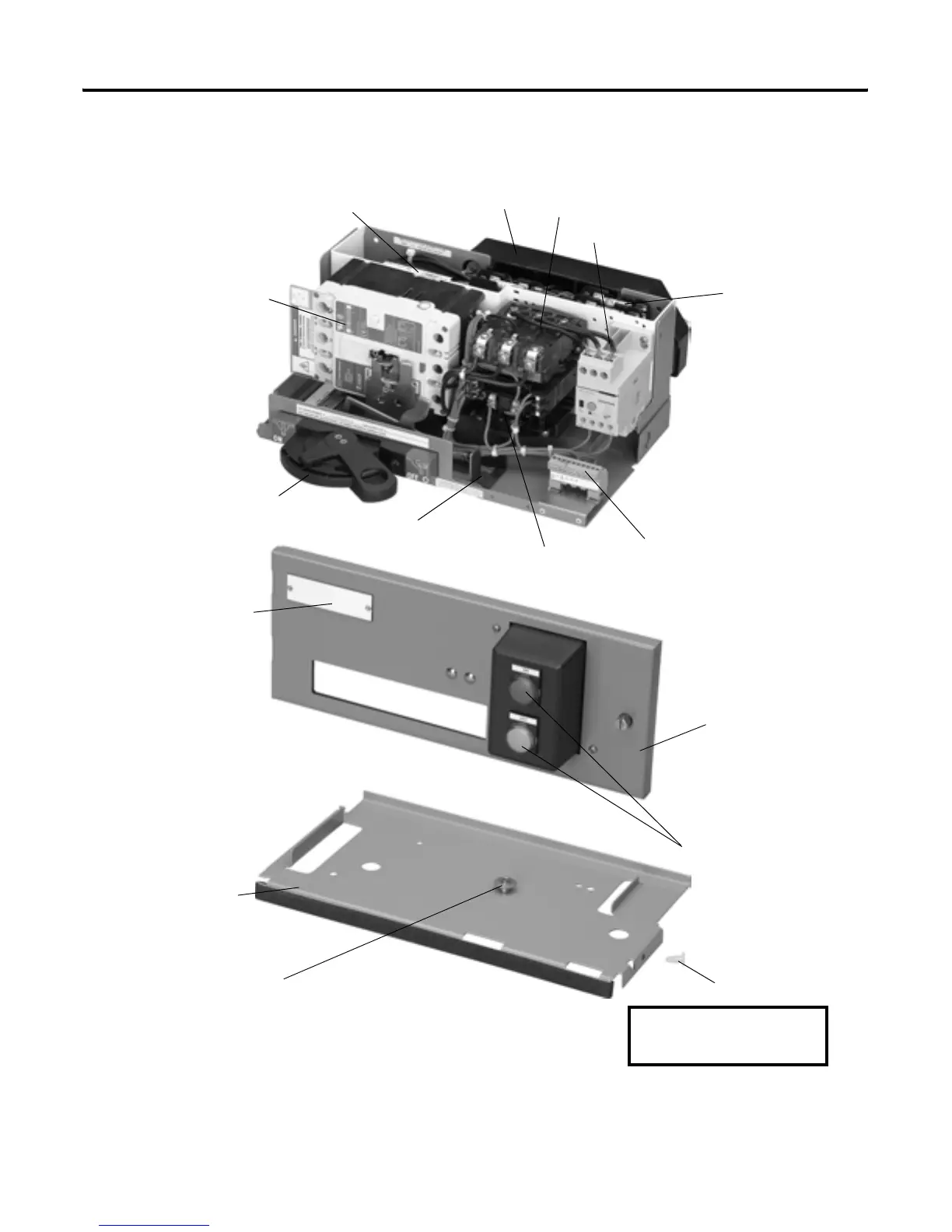

Typical Construction of a Half Space Factor Unit with a Horizontal Operating Handle
and Door Mounted Pilot Devices
Unit Support Pan Bushing
Unit Support Pan
Plastic Retaining Pin
Unit Latch/Interlock
Pilot Devices
Control Circuit Fuse
block and Fuses
Control Terminal Block
Handle Mechanism
Circuit Breaker (shown)
or Fusible Disconnect
Control Circuit Transformer
Unit Stab Assembly
Overload Relay
Contactor or Starter
Starter
Unit Nameplate
Unit Door
Bulletin 2113, FVNR with
transformer shown

Allen-Bradley CENTERLINE Specifications

General

Short Circuit Current Rating (SCCR)	Up to 100kA
Modular Design	Yes
Type	Motor Control Center (MCC)
Voltage	Up to 600V AC
Communication Protocols	EtherNet/IP, DeviceNet
Enclosure Type	NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Standards Compliance	UL 845, IEC 61439
