Allen-Bradley CENTERLINE User Manual

Publication 2100-IN012B-EN-P - April 2005
Operator Handle and Unit Interlock 7-7

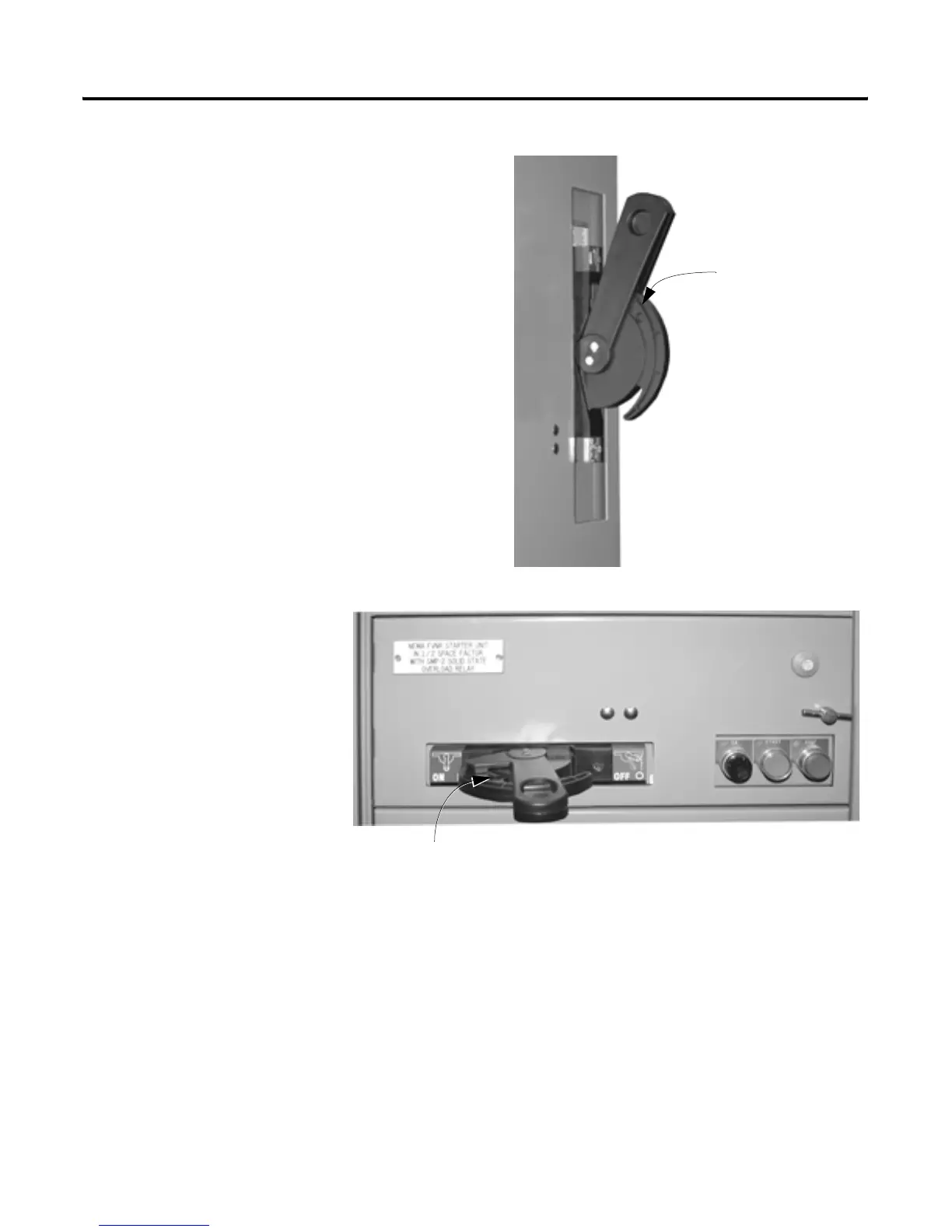

Figure 7.9 Locking Large Handle in ON/I Position
Figure 7.10 Locking Horizontal Handle in ON/I Position
Unit Interlocks
A unit interlock is provided with each plug-in unit. Unit interlocks prevent
units from being removed from or inserted into a vertical section when the
operator handle is in the ON/I position.
Units can also be locked out with a padlock preventing installation of the unit
into a vertical section. The lockout feature of the unit interlock can be used
with the operator handle in the ON/I or OFF/O position.
See Figure 7.11 and Figure 7.13.
Drill OutDrill Out
Drill Out

Allen-Bradley CENTERLINE Specifications

General

Short Circuit Current Rating (SCCR)	Up to 100kA
Modular Design	Yes
Type	Motor Control Center (MCC)
Voltage	Up to 600V AC
Communication Protocols	EtherNet/IP, DeviceNet
Enclosure Type	NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Standards Compliance	UL 845, IEC 61439
