Publication 2100-IN012B-EN-P - April 2005
7-8 Operator Handle and Unit Interlock

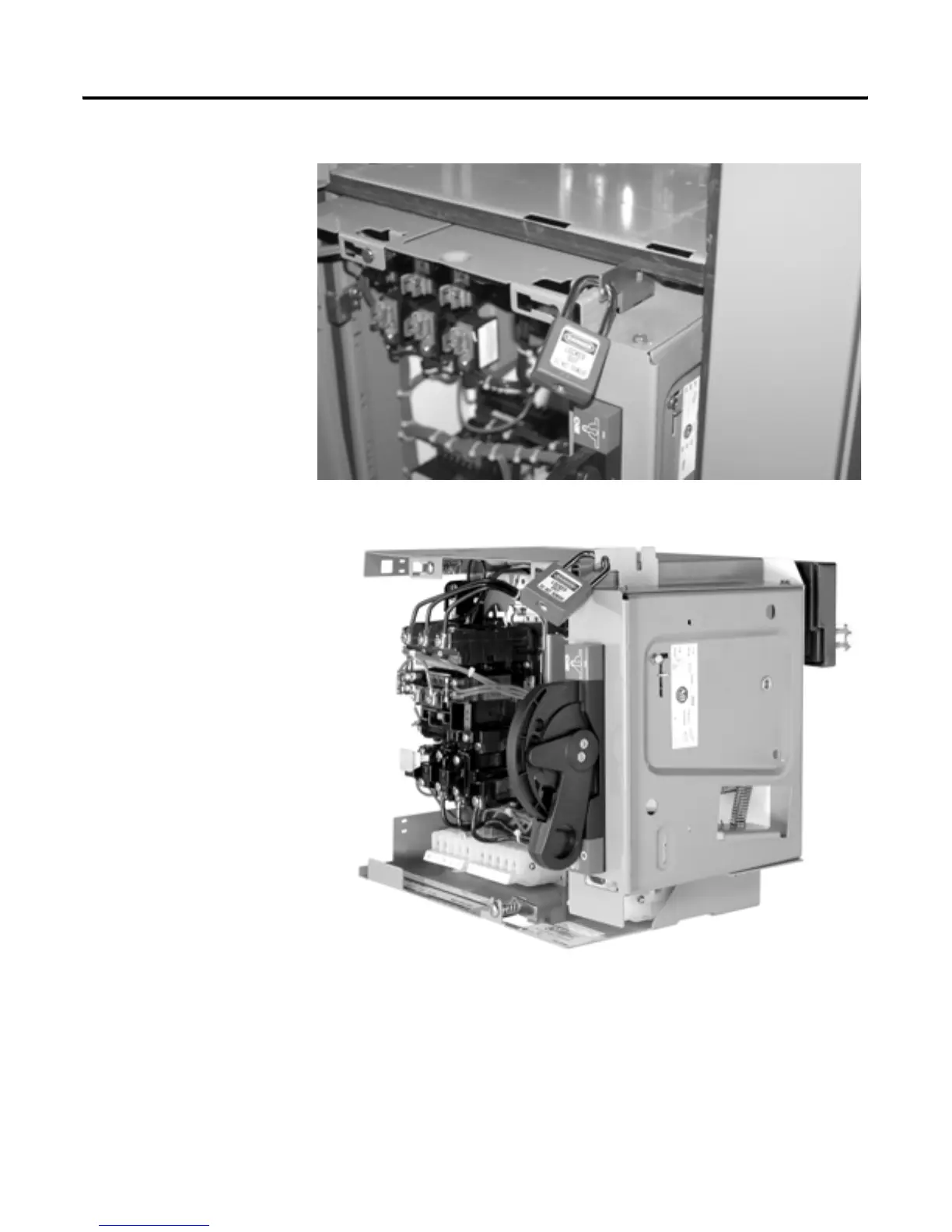

Figure 7.11 Unit Interlock to prevent insertion, Vertical Operating Handler
Figure 7.12 Unit Interlock to prevent insertion - Unit Completely Withdrawn
