Publication 2100-IN012B-EN-P - April 2005
1-10 General Information
Receiving, Handling and
Storage
Receiving
As standard, CENTERLINE Motor Control Centers are shipped upright in
shipping blocks of one to three front-mounted sections or two to six
back-to-back sections. Each shipping block of an MCC is provided with a
lifting angle. The lifting angle is optional on NEMA Type 3R and Type 4
MCCs. Each vertical section in a shipping block is bolted to the shipping skid
and covered with clear plastic wrap. Equipment that extends from the
structures is also protected. Protection is for upright shipping and is not
waterproof or watertight. If necessary, other types of packaging are available.
Refer to publication 2100-IN040x-EN-P for receiving, handling and storage
instructions. This publication is shipped with each MCC, attached to the
outside of the MCC within the layer of clear plastic wrap. For additional
information about the handling, installation, operation and maintenance of
motor control centers rated more then not 600 volts, consult
NEMA ICS 2.3-1995.
Export Packaging
A maximum of three vertical sections standing upright can be shipped with
export packaging together in one block. The motor control center is bolted to
a skid and wrapped in poly wrap suitable for occasional water-spray; a wooden
frame and chipboard surround the sections. Export packaging is not
watertight, waterproof or intended for long-term storage. Extended storage
may require space heaters and other considerations. Export packing adds extra
weight and dimensions to the shipping block.

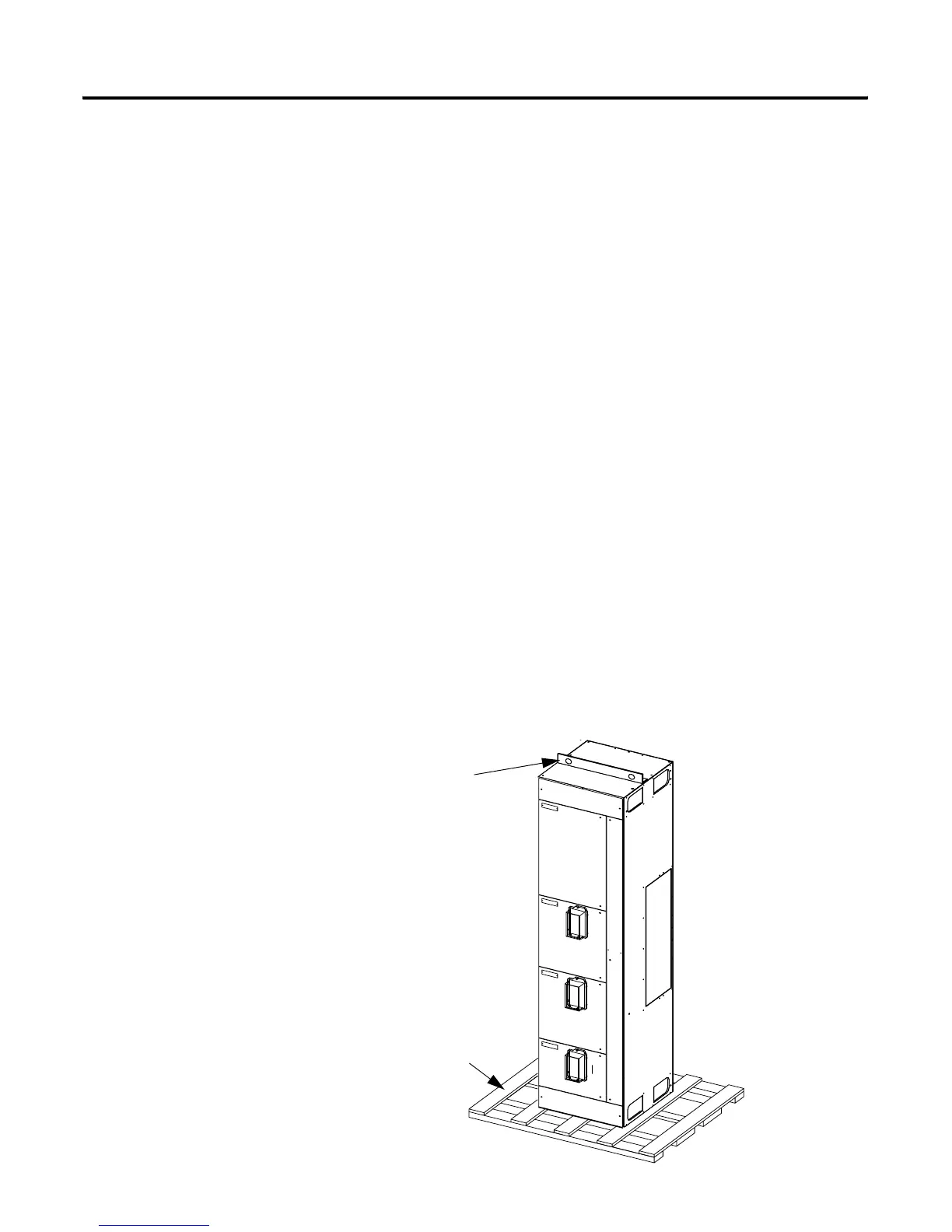

Figure 1.7 Handling and Receiving MCCs
Shipping Skid
Lifting Angle
To Next Page
