7-2 Operator Handle and Unit Interlock

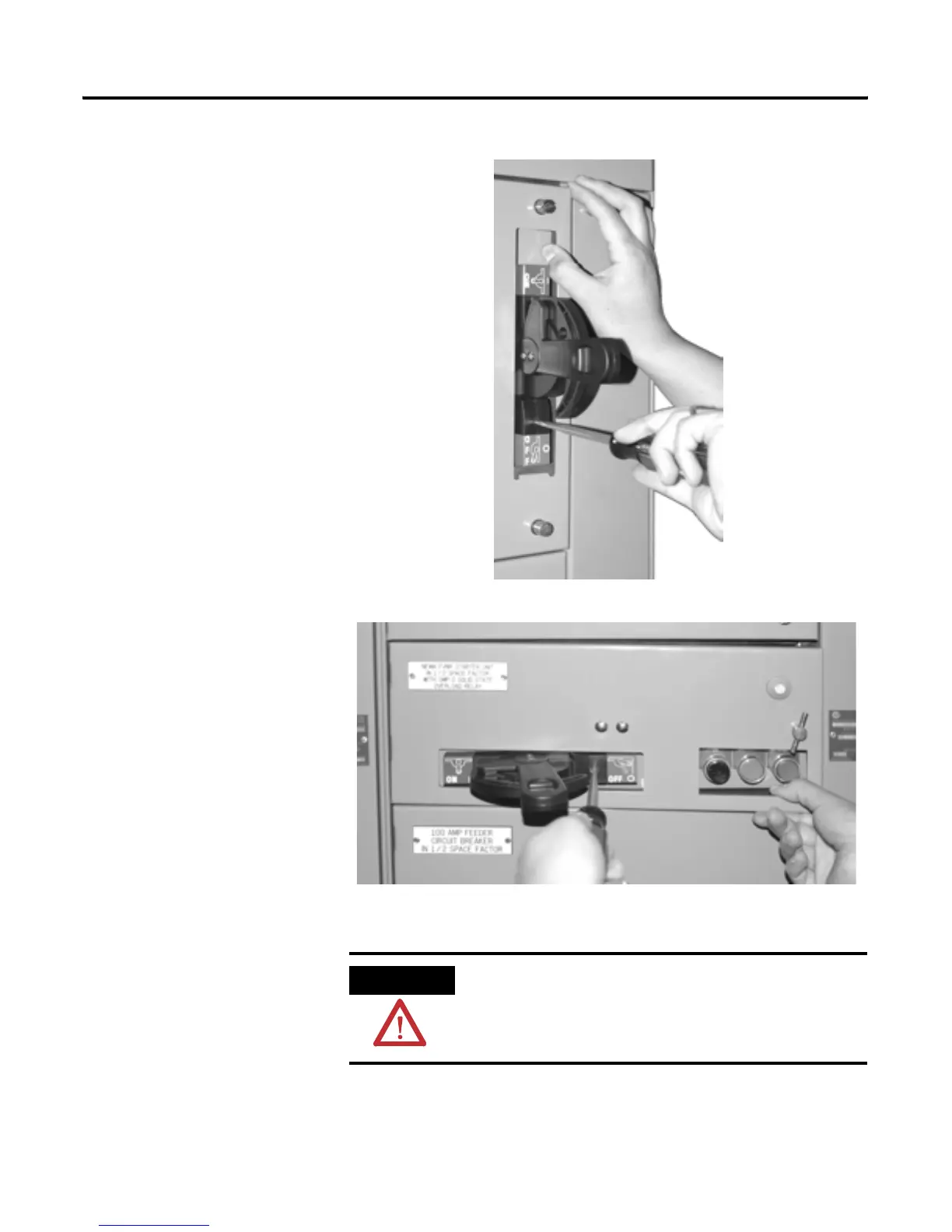

Figure 7.1 Operating Handle Defeater for Vertical Operator Handle
Figure 7.2 Operating Handle Defeater for Horizontal Operator Handle
ATTENTION
Follow NFPA 70E safety guidelines when working on
energized equipment.

Allen-Bradley CENTERLINE Specifications

General

Short Circuit Current Rating (SCCR)	Up to 100kA
Modular Design	Yes
Type	Motor Control Center (MCC)
Voltage	Up to 600V AC
Communication Protocols	EtherNet/IP, DeviceNet
Enclosure Type	NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Standards Compliance	UL 845, IEC 61439
