Allen-Bradley Compact 5000 User Manual

64 Rockwell Automation Publication 5069-UM003A-EN-P - May 2018

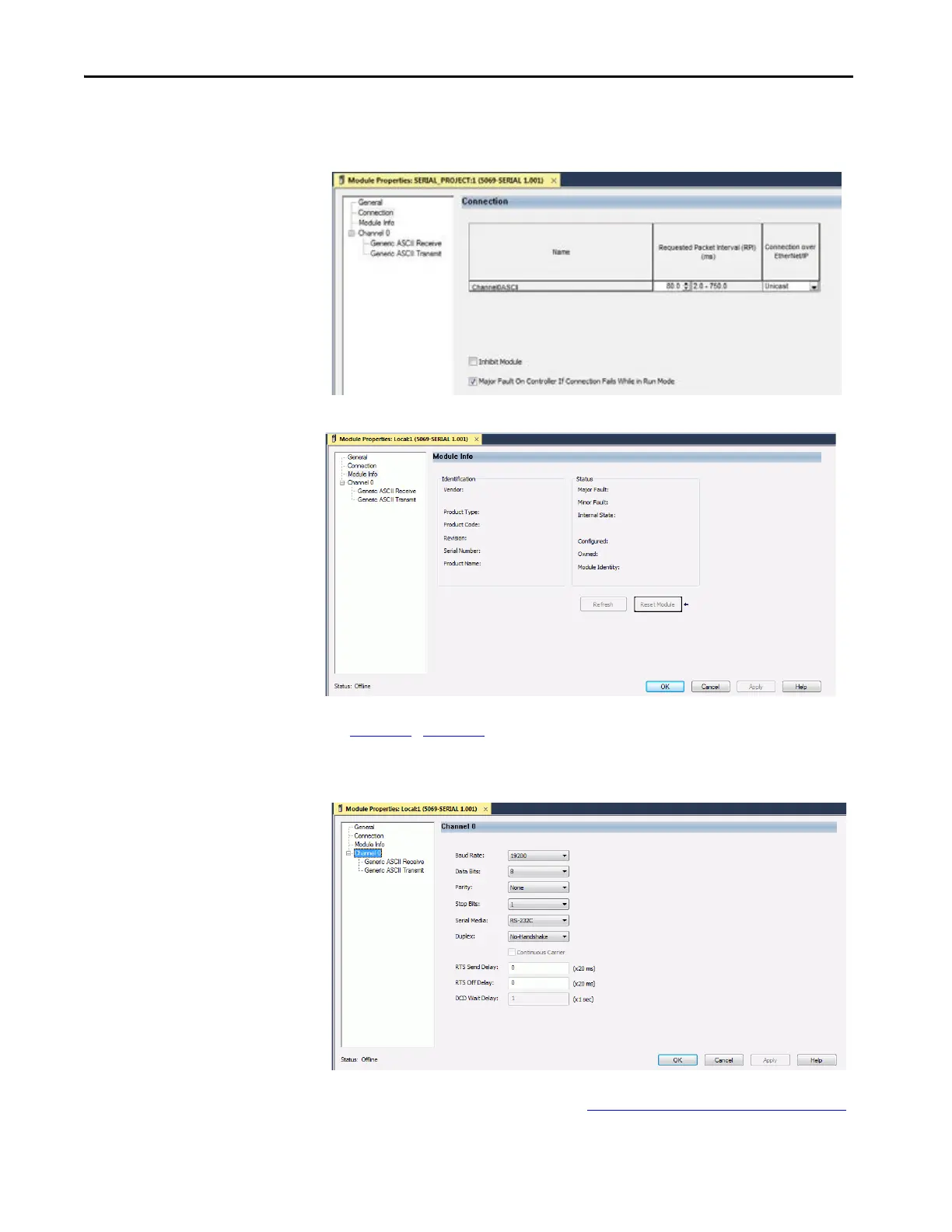

Chapter 4 Configure Compact 5000 I/O Serial Module
Generic ASCII
Figure 12 - Generic ASCII Connection
Figure 13 - Generic ASCII Module Info
Figure 14…Figure 16 show the communication port that defines the baud rate,
serial media setting, and receive and transmit settings.
Figure 14 - Generic ASCII Channel Parameters
For module function definitions, see Common Module Functions on page 29
