Allen-Bradley E300 Quick Start Instructions

Rockwell Automation Publication 193-QR004B-EN-P - January 2017 21
Chapter 2
Upload Parameters
The process of updating your new or existing project with the correct parameter settings and firmware to communicate
between your E300 relay and programmable logic controller (PLC) has become significantly easier. By using the
“Upload” button on the E300 Module Definition, you can upload the firmware revision, module types, and existing
configuration parameters into your project. The following steps show the step-by-step process to perform this action.

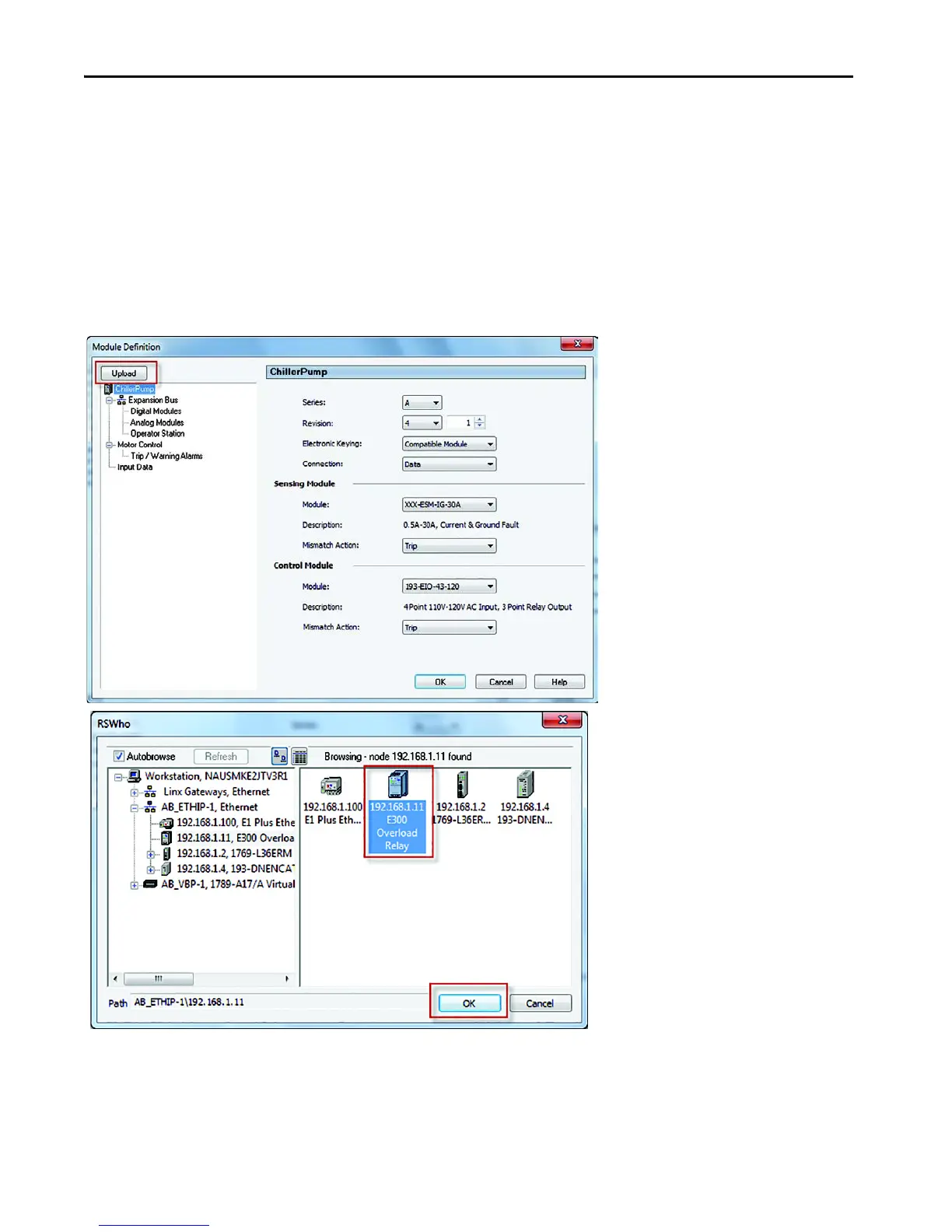

1. Double click on the appropriate E300 device profile. In the general display, select Change.
2. Once the Module Definition tab appears, click Upload. Select the appropriate E300 relay that is on the
E
therNet/IP network, and click OK.

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
