Allen-Bradley E300 Quick Start Instructions

Rockwell Automation Publication 193-QR004B-EN-P - January 2017 7
Chapter 1
Installation
This chapter explains how to assemble the three module types of the E300 electronic overload relay, wire the relay, and
set the relay IP address.
Three modules comprise the E300 relay. All three modules are required to make a functional overload relay. You can
cus
tomize each of the three with accessories to tailor the electronic motor overload for the exact needs of your
application. Figure
1 through Figure 3 show the three types of E300 relay modules.

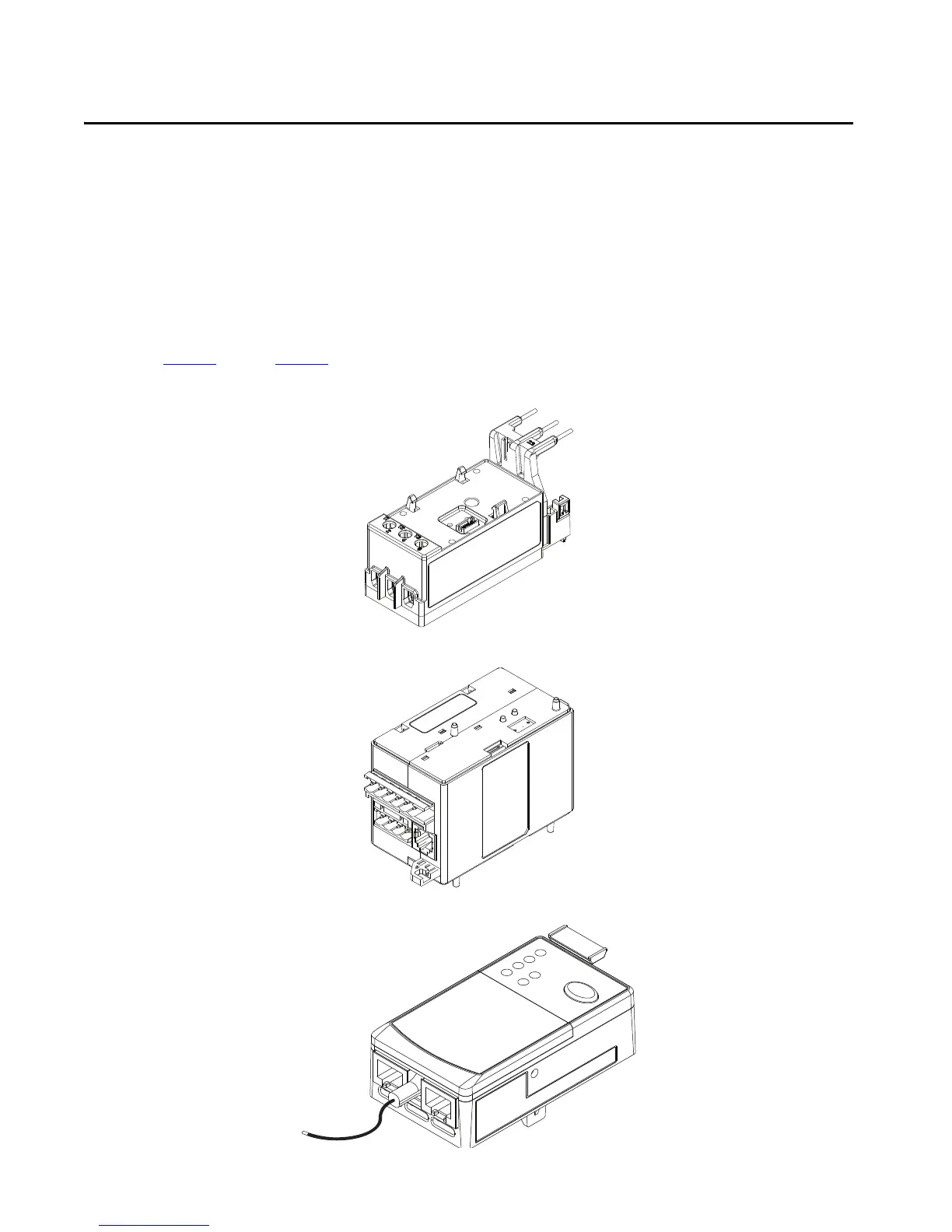

Figure 1 - Sensing Module
Figure 2 - Control Module
Figure 3 - Communication Module

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
