Chapter 7 Motion Control

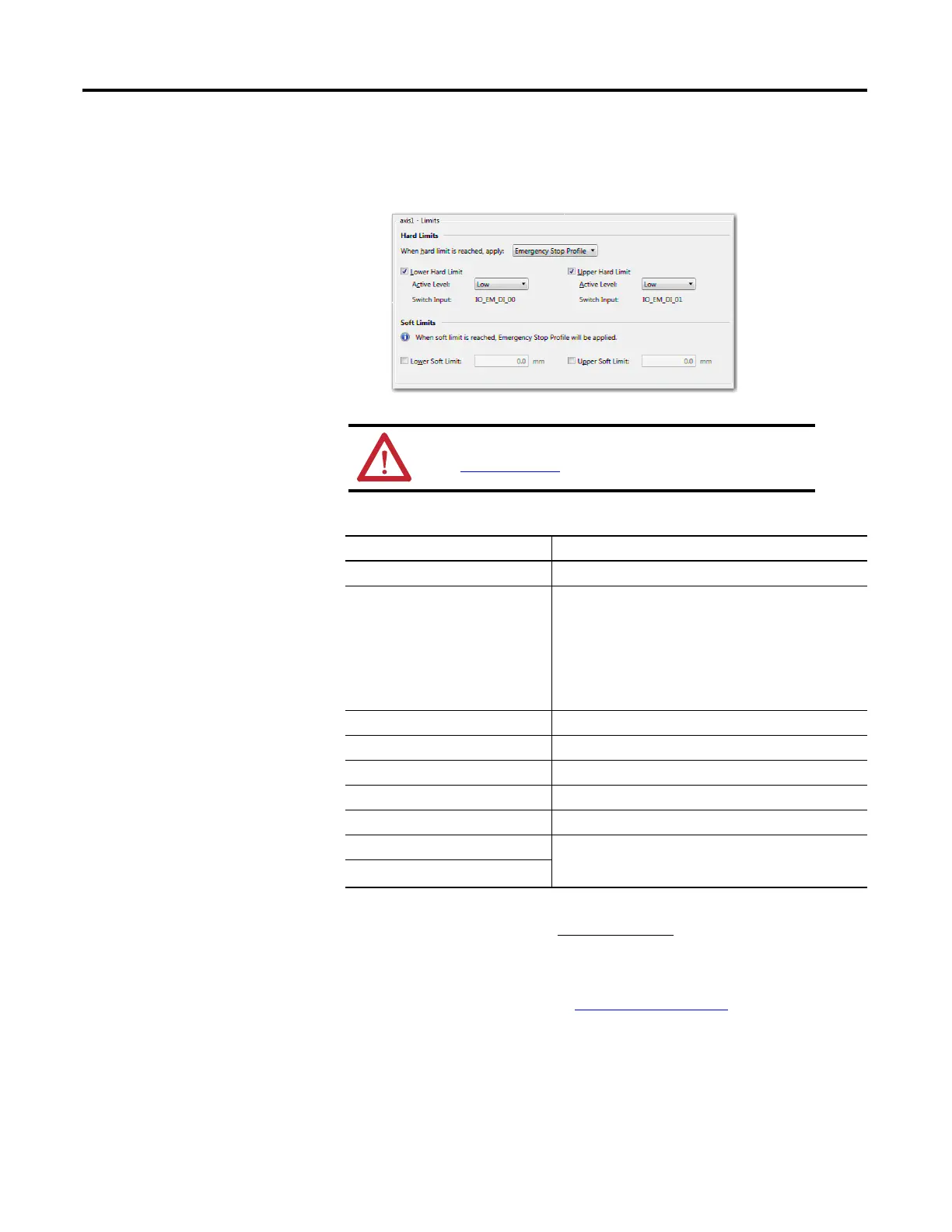

Limits
Edit the Limits parameters based on the table below.
ATTENTION: To learn more about the different types of Limits,
see Limits
on page 86.
Limits Parameters
Parameter
(1)
(1)
To convert from user units to pulse:
Value
Hard Limits Defines upper and lower hard limits for the axis.
When hard limits is reached, apply Configure whether to perform a forced PTO hardware stop
(immediately turn off pulse output) or whether to decelerate
(leave pulse output on and use deceleration values as
defined on the Emergency Stop profile).
Set as any of the following:
• Forced PTO Hardware Stop
• Emergency Stop Profile
Lower Hard Limit Click checkbox to enable a lower hard limit.
Active Level (for Lower Hard Limit) High or Low.
Upper Hard Limit Click checkbox to enable.
Active Level (for Upper Hard Limit) High or Low.
Soft Limits Defines upper and lower soft limits values.
Lower Soft Limit
(2)
(2)
The parameter is set as REAL (float) value in Connected Components Workbench. To learn more about
conversions and rounding of REAL values, see Real Data Resolution
on page 104.
Lower soft limit should be less than upper soft limit.
1. Click checkbox to enable an lower/upper soft limit.
2. Specify a value (in mm).
Upper Soft Limit
(2)
A red border on an input field indicates that an invalid value has been
entered. Scroll over the field to see tooltip message that will let you
know the valid value range for the parameter. Supply the valid value.
Value in user unit = Value in pulse x
Travel per revolution
Pulse per revolution
