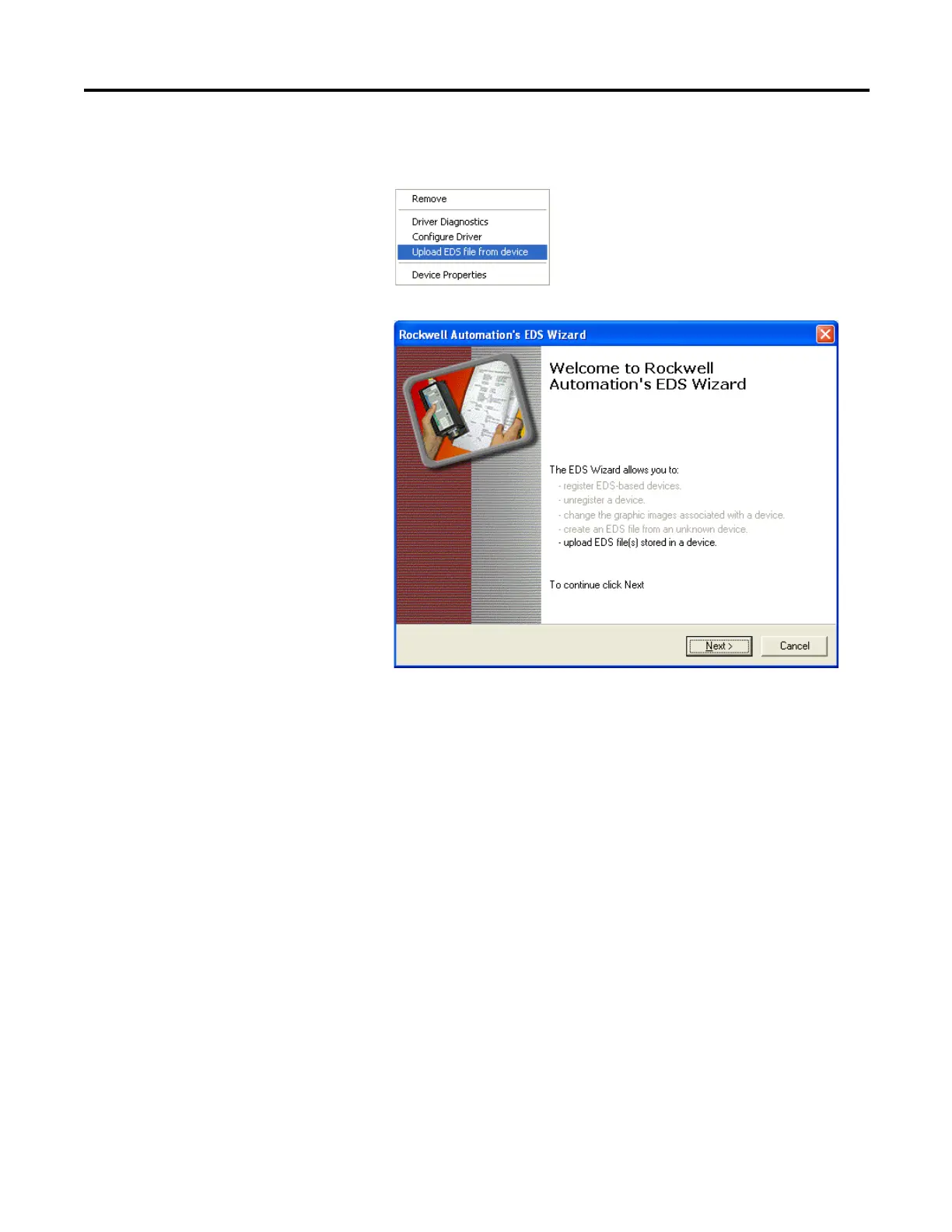

Rockwell Automation Publication 2080-UM002G-EN-E - March 2015 197

Quickstarts Appendix C

Since Micro830/Micro850 controllers support embedded EDS files, right

click this device and select Upload EDS file from device.

7. On the EDS wizard that appears , click Next to continue.
