Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 197
Using microSD Cards Chapter 10

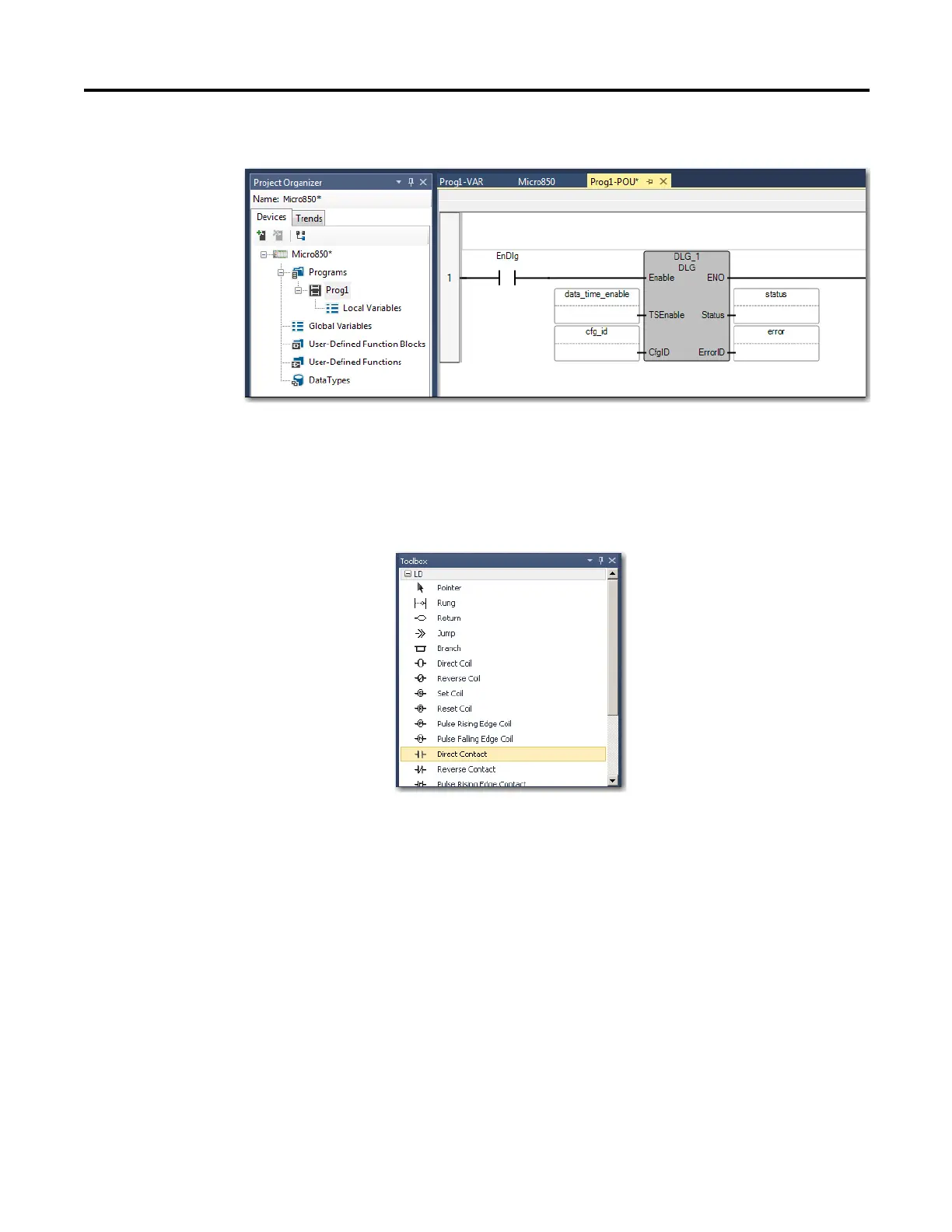

Create data log ladder program
1. Launch Connected Components Workbench. Create a user program for
your Micro800 controller.
2. Right-click Programs. Select Add New LD: Ladder Diagram. Name the
Program (for example, Prog1).
3. From the Toolbox, double-click Direct Contact to add it to the rung.
4. From the Toolbox, double-click Block to add it to the rung.
