Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 283

Quickstarts Appendix C

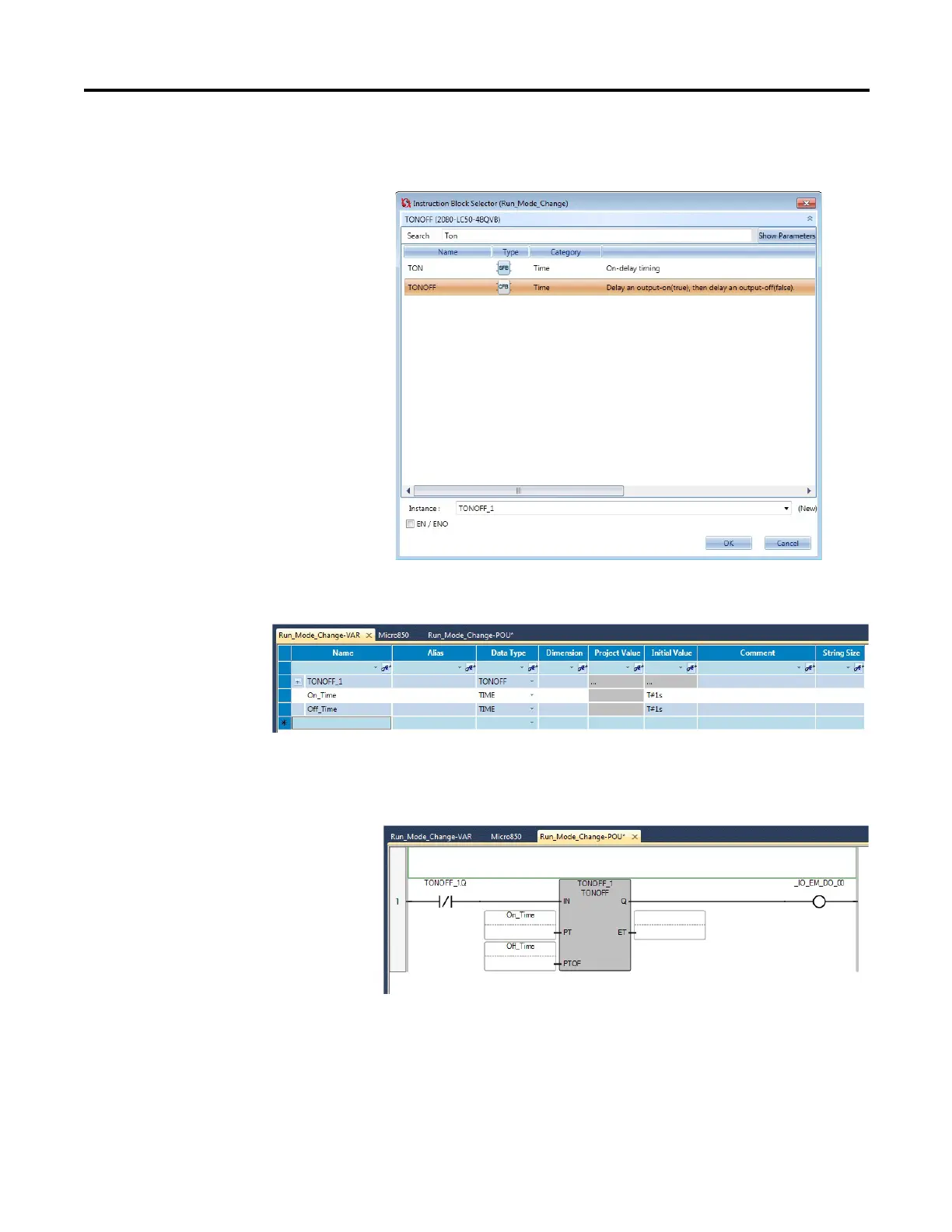

3. Double-click the newly added Instruction Block and select

“Timer On/Off “(TONOFF).

Configure the Instruction Block to trigger every one second.

4. From the Toolbox, double-click Reverse Contact to add it to the rung, or

drag and drop Reverse Contact onto the run. Place it to left of the recently

added Instruction Block.
