Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 285

Quickstarts Appendix C

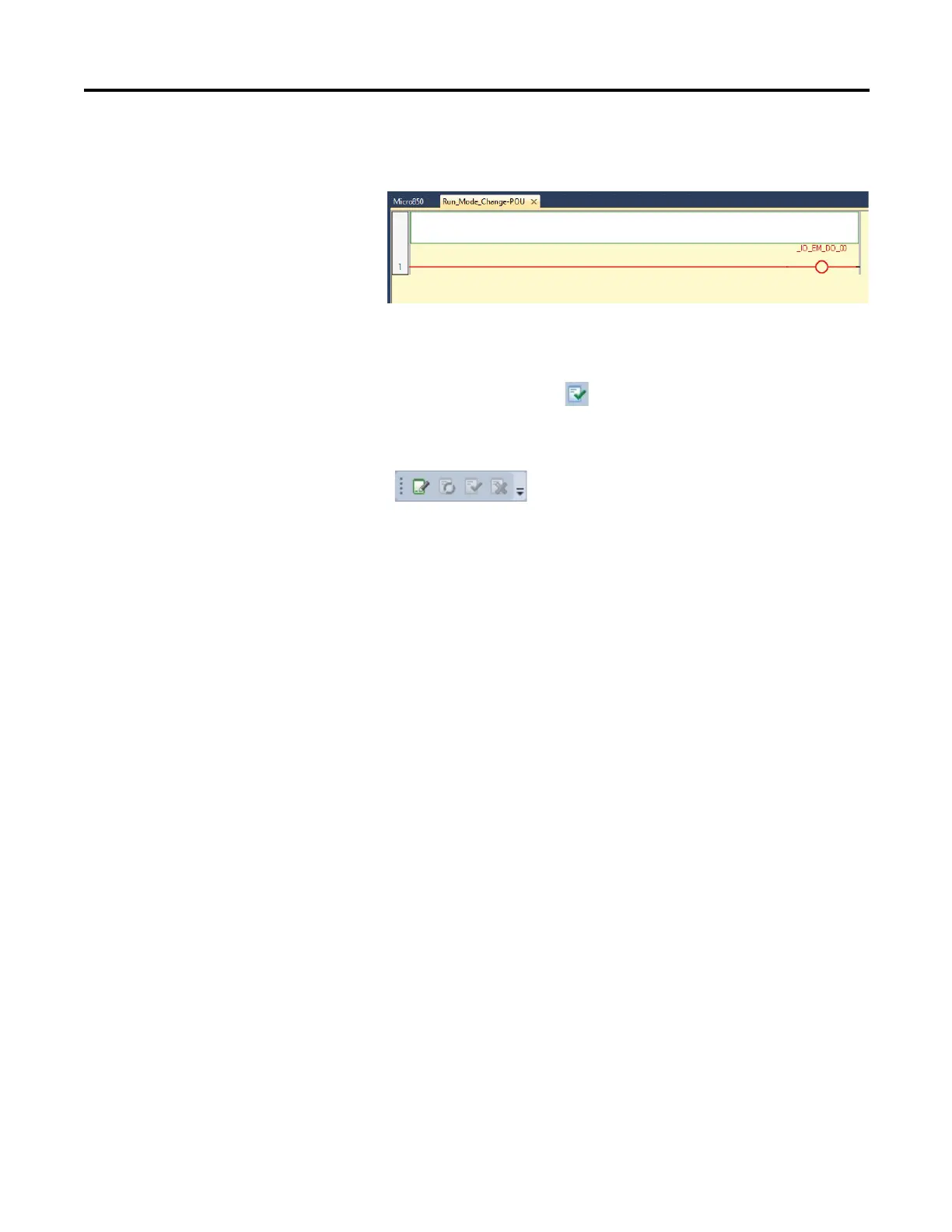

Observe that original project is shown and the controller is in Debug

mode.

To Accept the Changes

1. Click the Accept Changes icon.

2. Observe that only the Run Mode Change icon is now enabled and the

controller remains in Debug mode.
