Allen-Bradley PLC-2/30

Data Transfer File Instructions
Chapter 12
1213

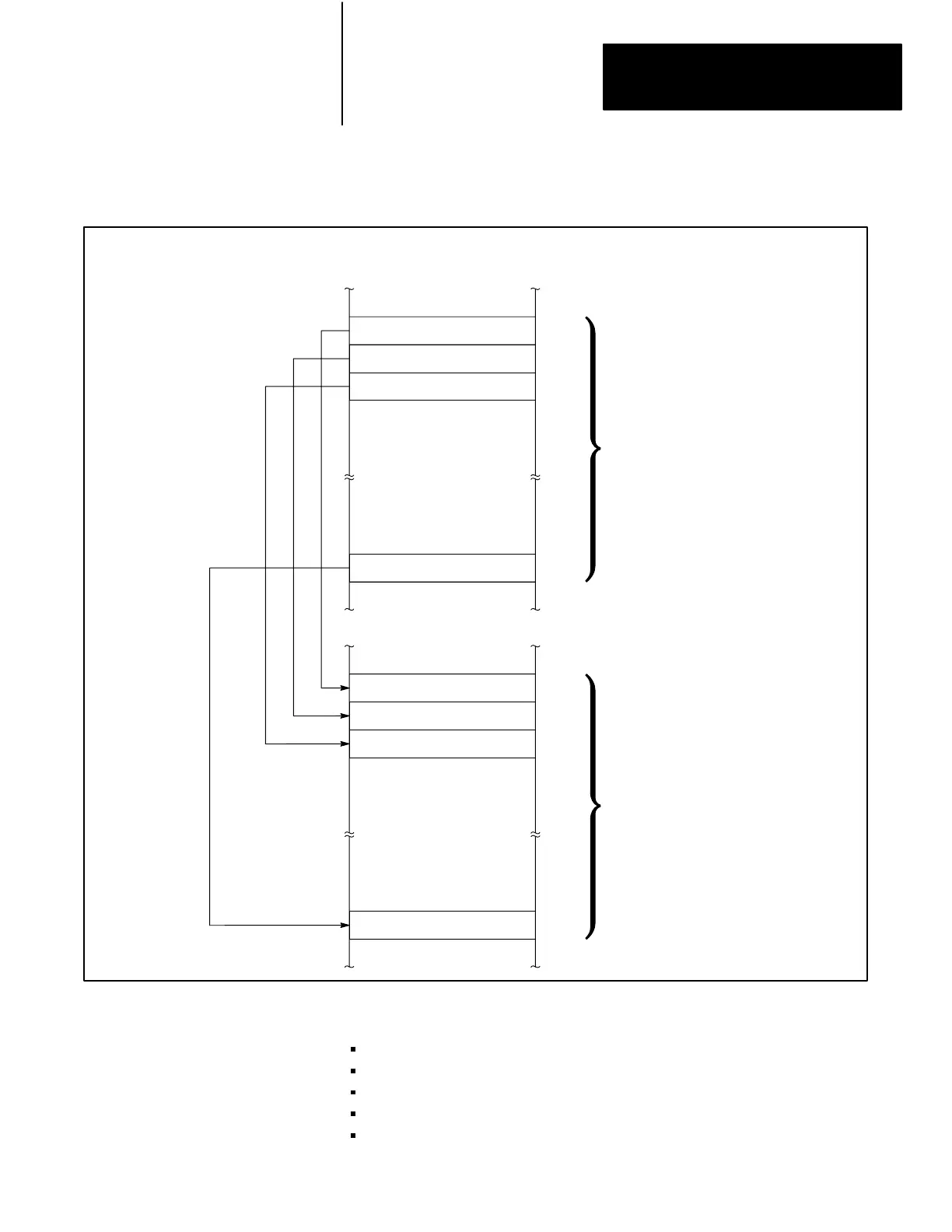

Figure 12.11
FILETOFILE
MOVE Operation
Move 10word file (starting at location 410) to
10word file (starting at location 474).
410
File A (10 words)
421
474
File R (10 words)
505
Instruction overview:
Output instruction
Key sequence: [FILE] 10
Requires 5 words of user program
Can operate in incremental, distributed complete, or complete modes
Counter is internally indexed by instruction
